3" SST2.1 Suspension System With Falcon 2.1 Struts/Shocks - Toyota Tacoma 2024
ReadyLIFT now offers a new premium 3" SST2.1 series lift kit for the 2024 Toyota Tacoma! The 62-54340 SST2.1 Lift Kit provides a great lift solution to achieve a mild yet aggressive lifted stance.
- 3” front lift with a 2” rear coil springs.
- Allows for up to 285/75R17 on an 8" wide and +35 offset.
- Allows for up to 295/55R20 on an 8.5" wide and +35 offset.
- Allows for 35x12.50 R17 with minor trimming.
- Skid plate upfront and rear springs
- Includes strong tubular steel Upper Control Arms with market best heavy-duty high-angle proprietary ball joint.
- “High-Value Performance” is the driving force behind our new vehicle-specific Falcon shocks.
- Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all four corners.
- Rear adjustable 3-position Falcon 2.1 shocks tune for daily, sport, or work duties.
*Note: Kit does not fit Tacoma’s equipped with rear leaf springs, TRD PRO, and Trail Hunter. ReadyLIFT has not tested or confirmed fitment on the optional sway bar disconnect.
ReadyLIFT now offers a new premium 3" SST2.1 series lift kit for the 2024 Toyota Tacoma! The 62-54340 SST2.1 Lift Kit provides a great lift solution to achieve a mild yet aggressive lifted stance.
- 3” front lift with a 2” rear coil springs.
- Allows for up to 285/75R17 on an 8" wide and +35 offset.
- Allows for up to 295/55R20 on an 8.5" wide and +35 offset.
- Allows for 35x12.50 R17 with minor trimming.
- Skid plate upfront and rear springs
- Includes strong tubular steel Upper Control Arms with market best heavy-duty high-angle proprietary ball joint.
- “High-Value Performance” is the driving force behind our new vehicle-specific Falcon shocks.
- Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all four corners.
- Rear adjustable 3-position Falcon 2.1 shocks tune for daily, sport, or work duties.
*Note: Kit does not fit Tacoma’s equipped with rear leaf springs, TRD PRO, and Trail Hunter. ReadyLIFT has not tested or confirmed fitment on the optional sway bar disconnect.
ReadyLIFT now offers a new premium 3" SST2.1 series lift kit for the 2024 Toyota Tacoma! The 62-54340 SST2.1 Lift Kit provides a great lift solution to achieve a mild yet aggressive lifted stance while still maintaining important factory ride and handling characteristics. The new 3” kit provides new upper control arms and incorporates our all-new Falcon 2.1 series front replacement strut and rear shock system that not only delivers an incredible ride quality but also opens the wheel wells up to increased wheel and tire sizes with the 3” front and a 1” rear lift over the stock ride height. To complement the advanced Falcon strut/shock architecture, our engineers also developed upgraded DOM tube steel upper control arms with corrected ball joint angles for greater strength and articulation. The maximum size for use with this kit (without trimming) is a 285/75R17 on an 8” wide and +35 offset wheel.
Our new 62-54340 is engineered for the new 2024 Toyota Tacoma pickups equipped from the factory with rear coil springs. Many of the same premium features found in that timeless Tacoma kit have migrated to the new 62-54340 lift kit. The Toyota Tacoma 3” SST lift kit is an excellent choice for those who want to run larger tires.
Features and Benefits:
· 3” front lift with a 2” rear coil springs.
· Allows for up to 285/75R17 on an 8" wide and +35 offset.
· Allows for up to 295/55R20 on an 8.5" wide and +35 offset.
· Allows for 315/70R17 with minor trimming.
· Allows for 35x12.50 R17 with minor trimming.
· Skid plate upfront and rear springs
· Includes strong tubular steel Upper Control Arms with market best heavy-duty high-angle proprietary ball joint.
· Unmatched curb-appeal and rugged mid-size truck capability delivered in an affordable yet innovative Smart Suspension Technology “no-cut” lift kit.
· “High-Value Performance” is the driving force behind our new vehicle-specific Falcon shocks.
· Falcon shock absorber systems are tuned for comfort with predictive handling, control, and stability on road and through the canyons as well as controlled steering during off-road driving on washboard roads, through whoops, and over rocks.
- Rear adjustable 3-position Falcon 2.1 shocks tune for daily, sport, or work duties.
· Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all four corners.
o Improved dynamic roll control and low-speed damping.
o Dramatic improvement in on-road comfort and off-road performance.
o Optimized fitment for unobstructed suspension travel and articulation.
o 6061-T6 aluminum alloy shock body resists Impact to protect internal components.
o Smooth-honed internal shock body surface for long-term performance.
o 3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling.
o Large shaft diameter provides a wide range of adjustments on adjustable shocks.
o Hard anodized 6061-T6 aluminum alloy billet piston.
o 1-piece Teflon bronze piston wear band w/ O-ring.
*Note: Kit does not fit Tacoma’s equipped with rear leaf springs. ReadyLIFT has not tested or confirmed fitment on the optional sway bar disconnect.
Wheel Tire Note
Stock (17x7 +60) 285/70R17 No Trim (Widest tire you can put on, Knuckle clearance)
17x8 +35 285/70R17 No Trim
17x8 +35 285/75R17 No Trim
17x8.5 +47 285/70R17 No Trim
17x8.5 +47 285/75R17 No Trim
17x8.5 +25 285/70R17 No Trim
17x9 +1 285/70R17 May require trimming. (4mm clearance)
Tire Size Comparison:
18x8 +35 285/65R18 No Trim
18x8 +35 285/70R18 No Trim
18x8.5 +47 285/65R18 No Trim
18x8.5 +47 285/70R18 No Trim
18x8.5 +25 285/65R18 No Trim
18x9 +1 285/65R18 May require trimming. (4mm clearance)
20x8.5 +35 295/55R20 No Trim
20x9 +18 295/55R20 No Trim
20x9 +1 295/55R20 May require trimming. (4mm clearance)
Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.
Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

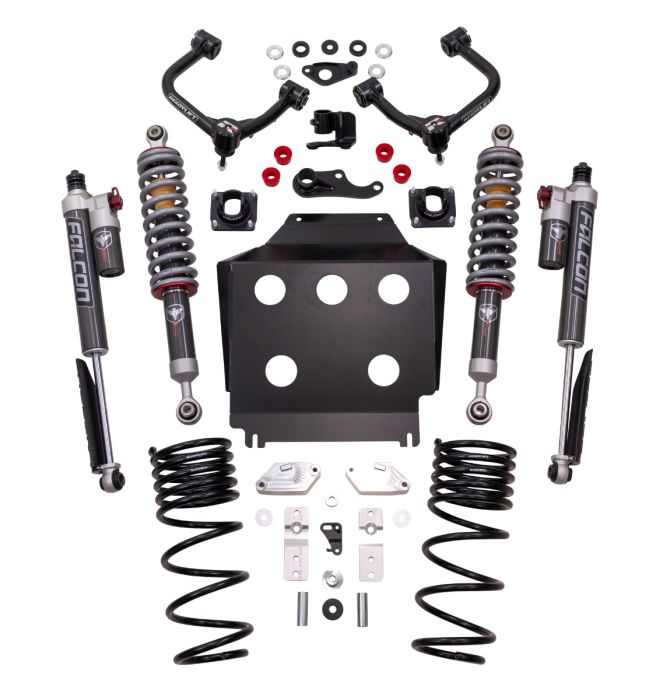

24 TACOMA RR SWAYBAR BRACKET
24+ TACOMA RR SPRG
24+ TACOMA SKD PLT
24 TACOMA DIFF REAR SPACER
24 TACOMA DIFF FRONT SPACER
24 TACOMA 3/8" LASER CUT WASHER
24 TACOMA REAR BRAKE LINE BRACKET
24 TACOMA DDC 1/8" LASER CUT WASHER
24 TACOMA FRT DIFF DROP, CTR SLEEVE
24 TACOMA FRT DIFF DROP, CTR BUSH
24 TACOMA FRT DIFF DROP, CENTER
0.87" OD X 0.56 ID X 2.65"L CRUSH SLEEVE
1.52" OD X 0.85"ID POLYURETHANE BUSHING
24 TACOMA FRT DIFF DROP, RH
24 TACOMA FRT DIFF DROP, LH
24 TACOMA RR BUMP STOP EXT, LH
24 TACOMA RR BUMP STOP EXT, RH
23 TACOMA FRT UCA ASSY, LH
24 TACOMA FRT UCA ASSY, RH
24+ TACOMA FRT CO, SRS 2 TYP 1
24+ TACOMA RR LT DMPER, SRS 3 TYP 2
24+ TACOMA RR RT DMPER, SRS 3 TYP 2
HARDENED STEEL WASHER
HARDWARE PACK
