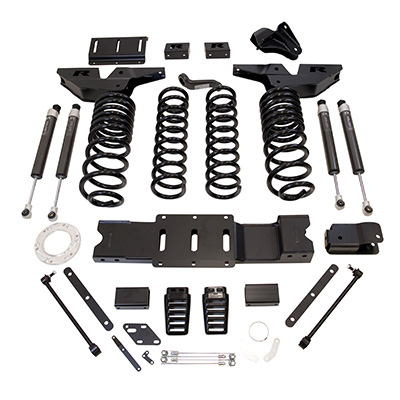

ReadyLIFT is excited to announce PN: 49-19610, an all-new 4-corner coil spring 6” lift kit with Falcon 1.1 Monotube shocks for the 2019-2022 Ram 2500 HD trucks equipped with the Standard Output Cummins turbodiesel engine providing plenty of clearance for an aggressive 37×12.5 tire and up to -18 offset wheel with no rubbing; delivering a beefy, tough look.

The 49-19610 is specifically designed for Ram Heavy Duty applications with proprietary front and rear coil springs, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, forged dropped pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube front & rear shocks that are included in this premium kit.

This kit includes a unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case aligning the front output shaft for improved driveline angles. Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. ReadyLIFT’s 6” lift kit with the Drive Line Indexing System addresses this condition by re-clocking [indexing] the transfer case and providing a stout heavy-duty steel cross member that accommodates the new T-case position, all resulting in a smooth driving experience on or off-road.

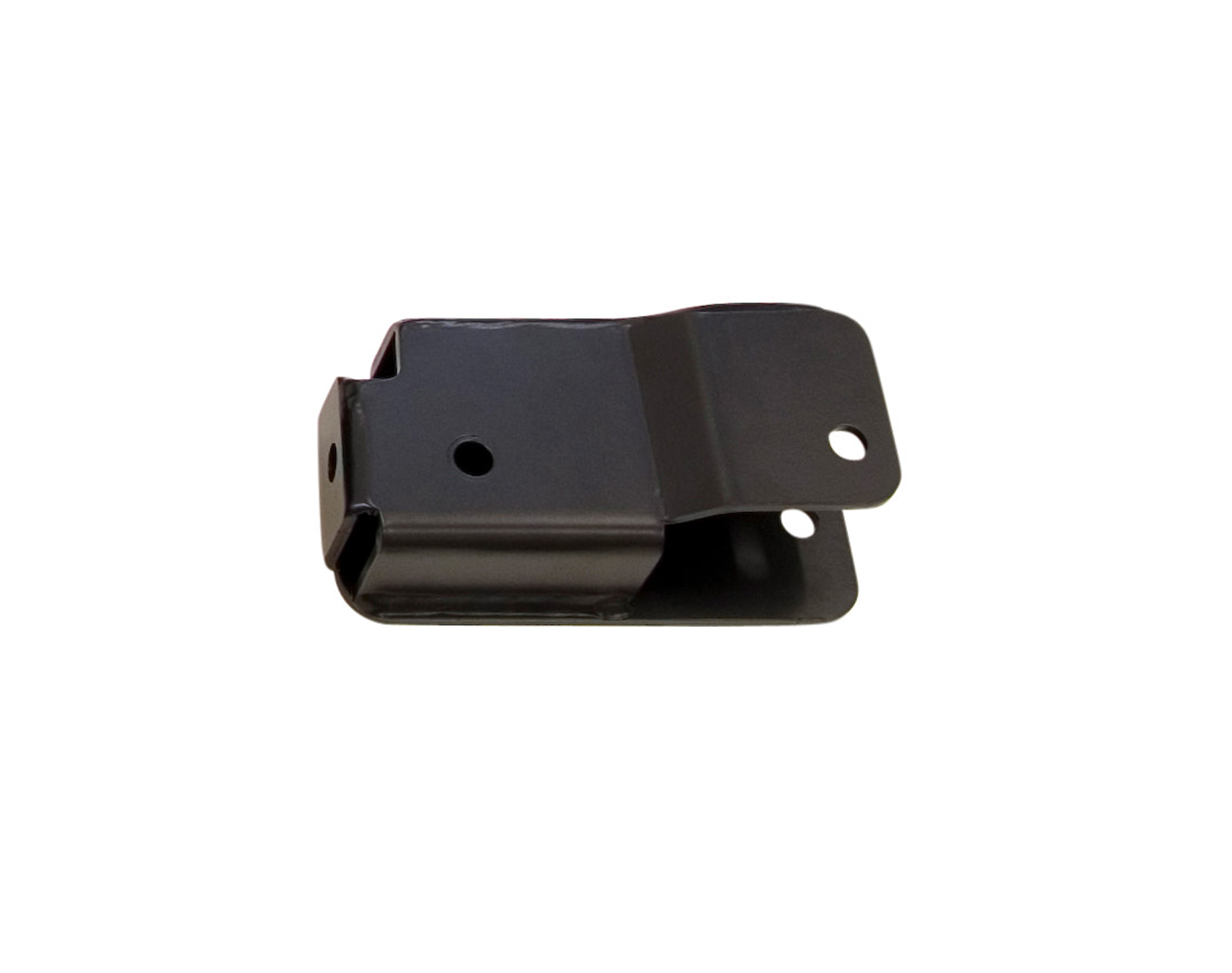

In addition to the new 6” lift kit, we are also releasing two new stand-alone rear track bar brackets for up to a 4.5” lift (PN: 67-19420) and a 6” lift (PN: 67-19610). These kits are fabricated steel and each kit maintains the factory suspension geometry and articulation.  Finally, PN 49-1960 is discontinued, effective immediately; however, PN 49-1961 w/DIS remains available for order.

Features and Benefits:

• 6” front lift with a coil spring rear lift for the perfect lifted stance.
• Includes Driveline Indexing System with transfer case clocking ring and new heavy-duty transmission crossmember.
• Maintains factory turning radius without rubbing when using the recommended wheel and tire size.
• Maintains factory suspension geometry and articulation.
• Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 2500 HD.
• For use on the Ram 2500 HD Diesel engine trucks only (excludes gasoline-engine applications).
• Allows for up to 37×12.50 tires on 9″ wide wheels with -18 offset.

*Kits will not fit any models with HEMI Gasoline engines, dually models, Classic models, and any automatic-leveling rear air suspension models.
