New product release
More Control for the 4.5-Inch Ram 3500 HD
ReadyLIFT has upgraded its 4.5-Inch Coil Spring Lift Kit for 2019–2024 Ram 3500 HD High Output Diesel 4WD trucks with four vehicle-specific Falcon 2.1 Monotube Shocks. The result is the big-lift stance and 37-inch tire clearance Ram owners want with improved ride quality, stability, and control.
Four vehicle-specific monotube shocks provide controlled performance for daily driving, towing, and off-road use.
Build a more aggressive Ram 3500 with clearance for up to 37×13.50 tires on the recommended wheel setup.
Gain big-lift capability and ground clearance in a practical 4.5-inch package that stays below a full 6-inch system.
Built for High Output diesel power
Heavy-Duty Stance. Engineered Geometry.
This system combines application-specific lift components with ReadyLIFT’s Driveline Indexing System to support the suspension, steering, and driveline geometry of the Ram 3500 HD.
Front lift with heavy-duty coil springs
Maximum tire size on 20×9 –18 offset wheels
Vehicle-specific Falcon 2.1 monotube dampers

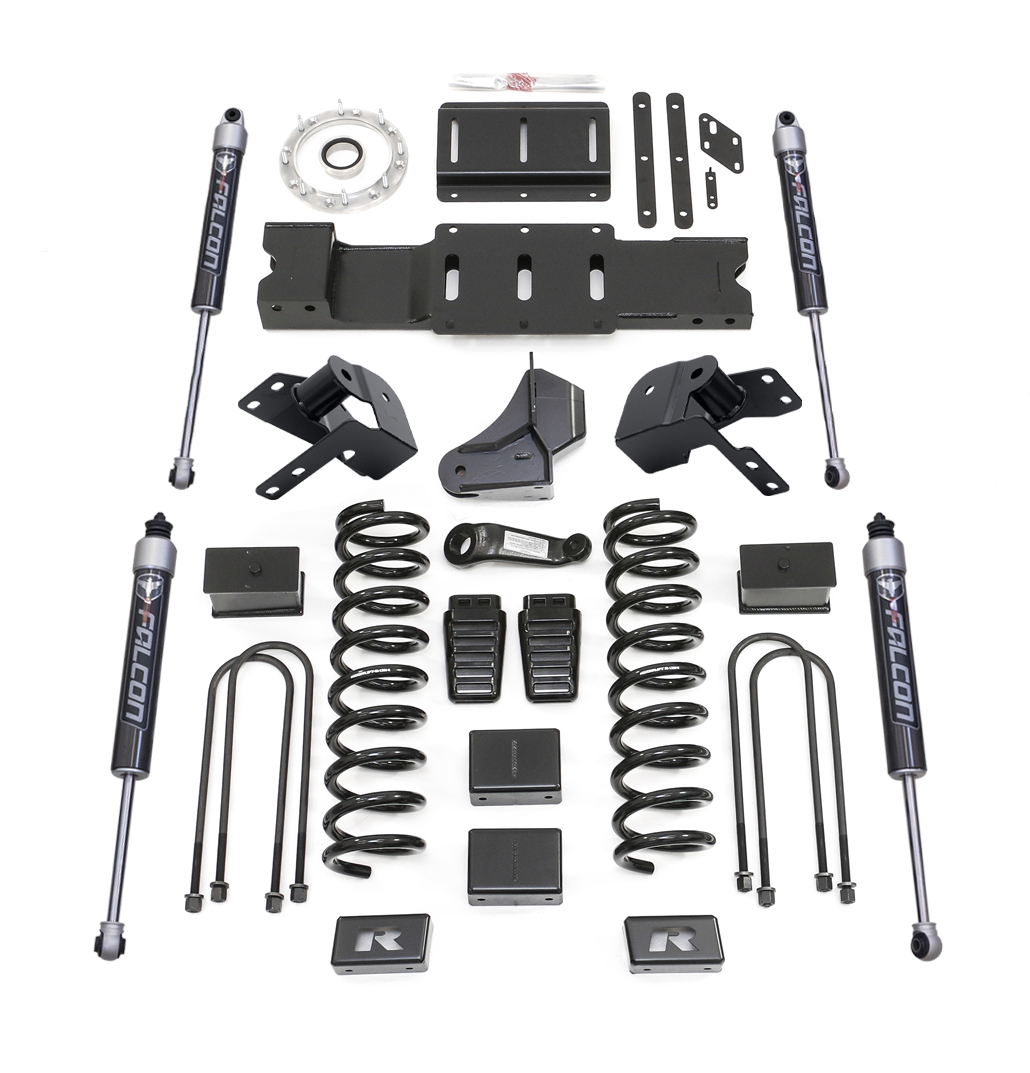

Part number 49-19431
4.5-Inch Coil Spring Lift Kit
Designed specifically for 2019–2024 Ram 3500 HD High Output Diesel 4WD trucks, the 49-19431 provides the stance and clearance of a big lift with a more practical overall height.
- Four Ram-specific Falcon 2.1 Monotube Shocks
- Heavy-duty 4.5-inch front coil springs
- 3-inch rear tapered lift blocks
- Radius arm drop and fabricated front track bar brackets
- Dropped pitman arm and sway bar relocation brackets
- Bump-stop extensions help prevent shock over-compression

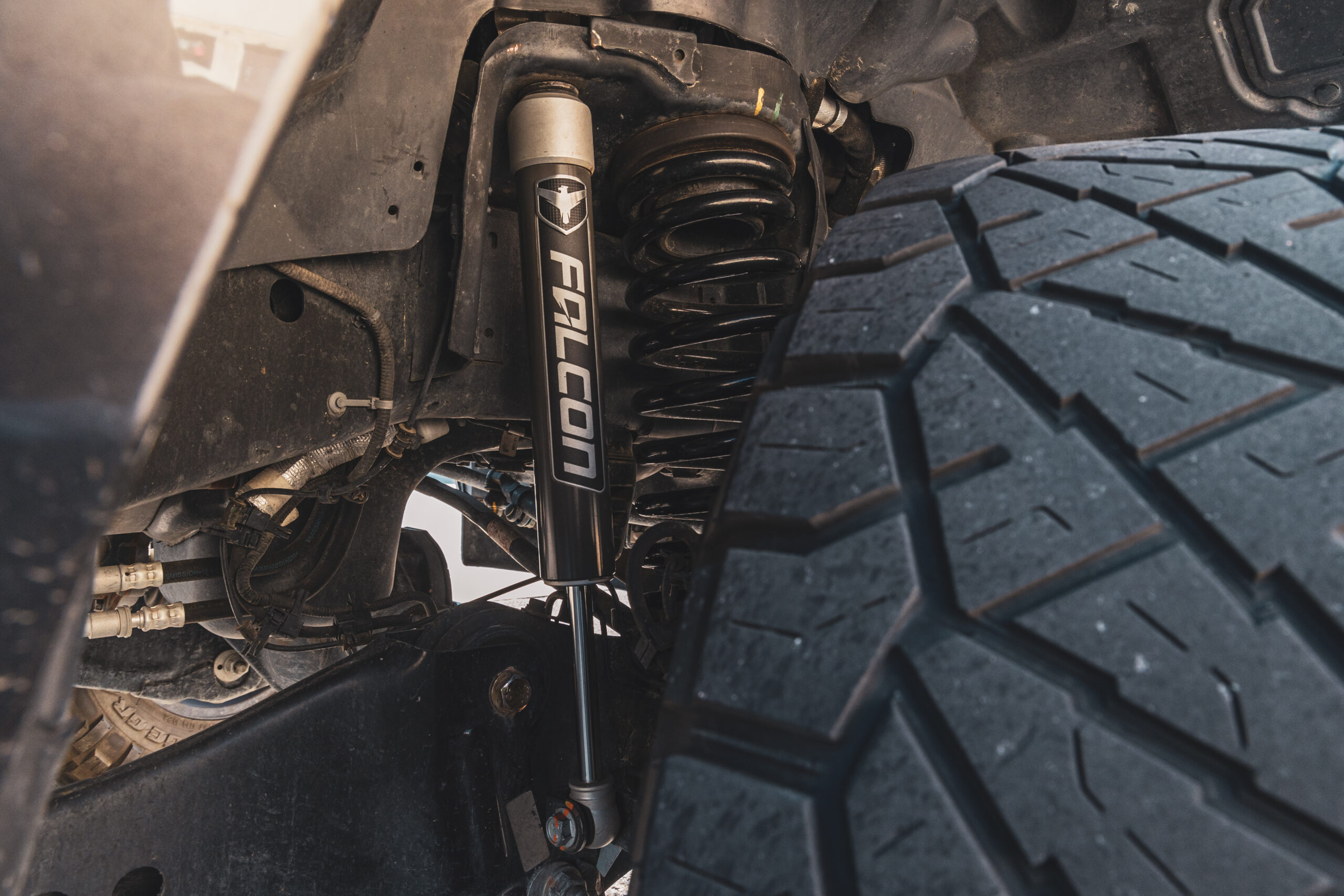

The Falcon 2.1 upgrade
Improved Ride Quality and Control
Falcon 2.1 Monotube Shocks are tuned specifically for the Ram 3500 HD to deliver increased stability, improved comfort, and a consistent, controlled feel across changing road and terrain conditions.
- Heavy-duty 3/4-inch induction-hardened, chrome-plated shaft
- Large 2.3-inch shock body for increased oil capacity and heat dissipation
Application-specific engineering
ReadyLIFT Driveline Indexing System
The included CNC-machined 6061-T6 billet aluminum Driveline Indexing System re-clocks the transfer case to properly align the front output shaft and improve driveline angles at the increased ride height.
A transfer-case clocking ring, heavy-duty transmission crossmember, and supporting relocation components work with the suspension corrections to create a complete system for the High Output diesel application.

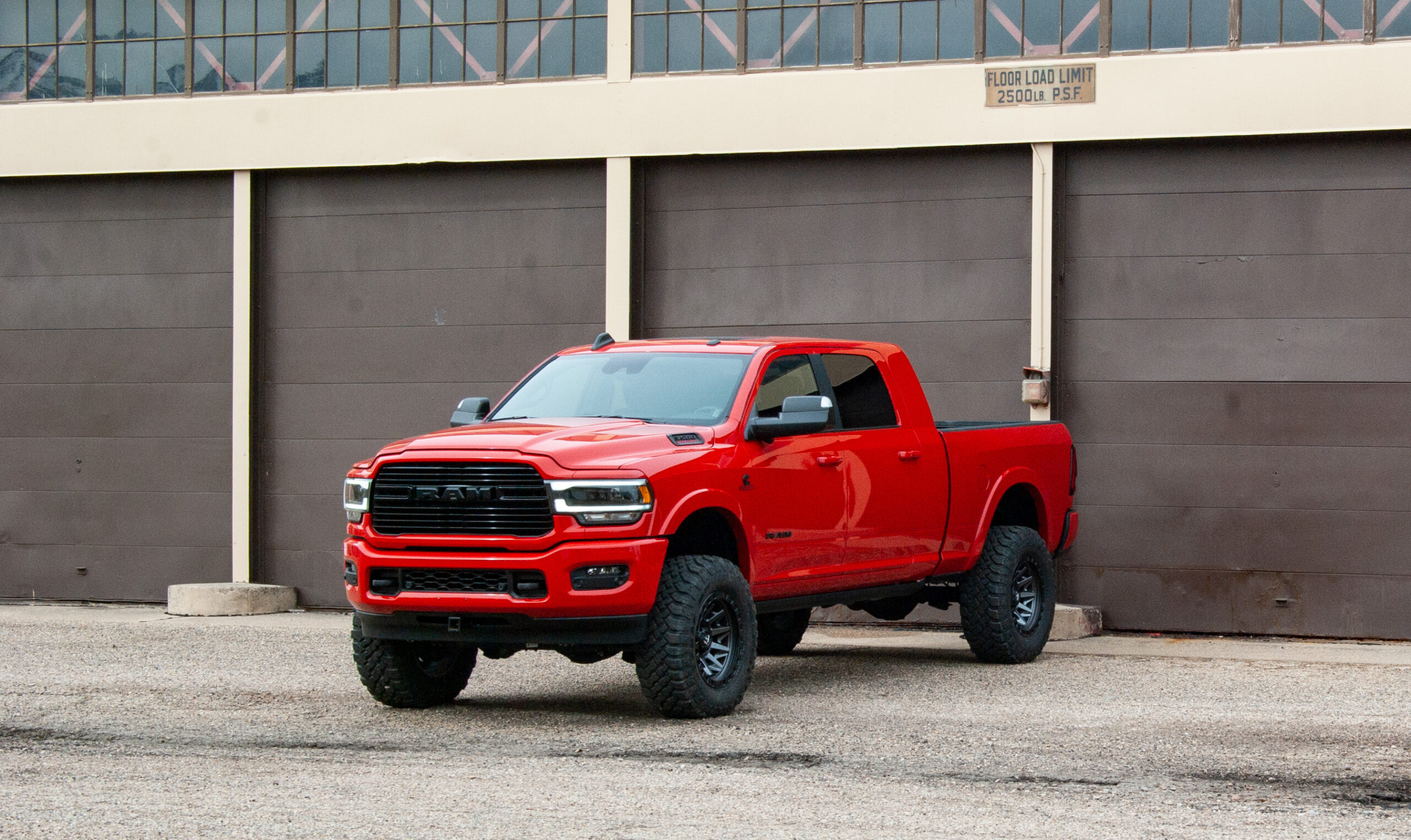

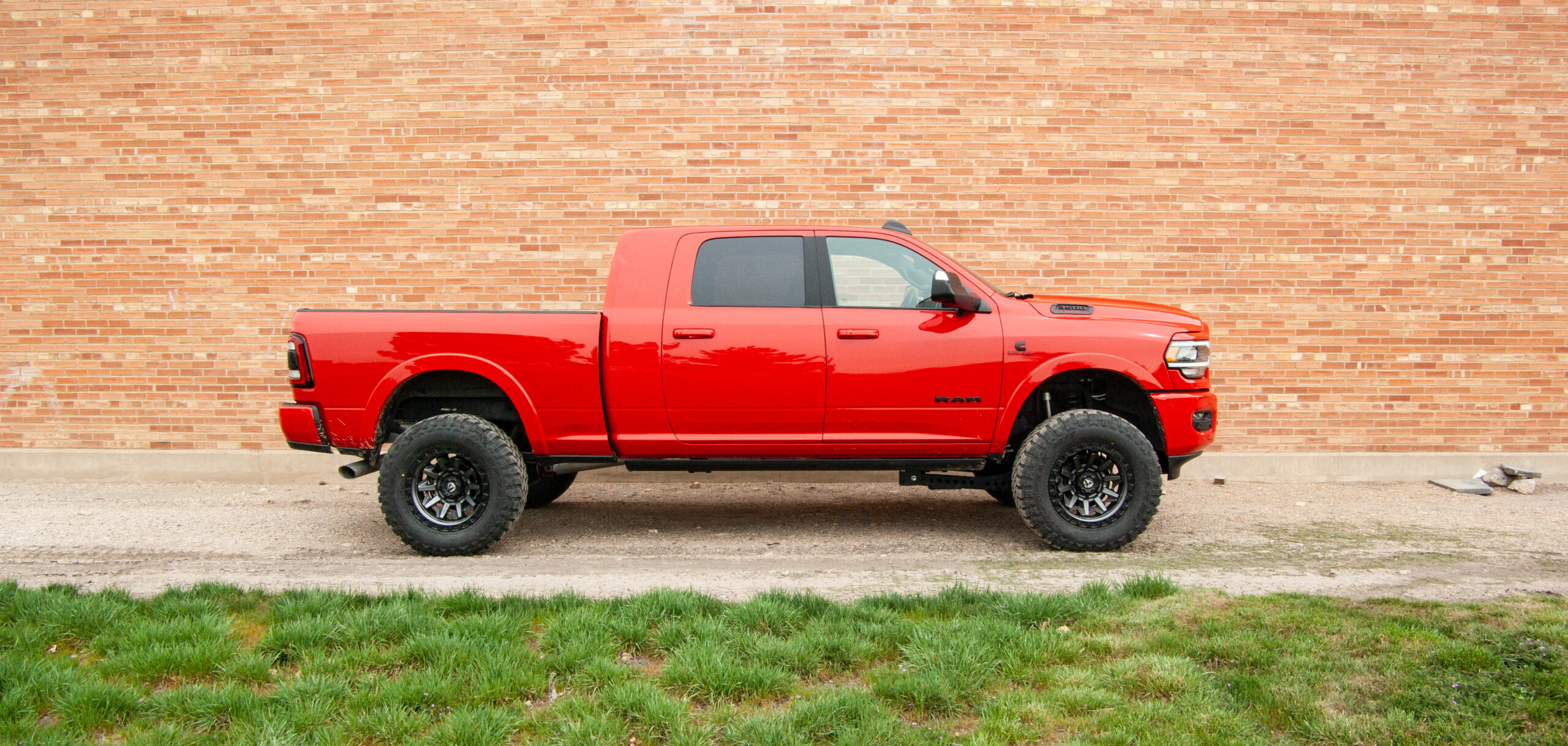

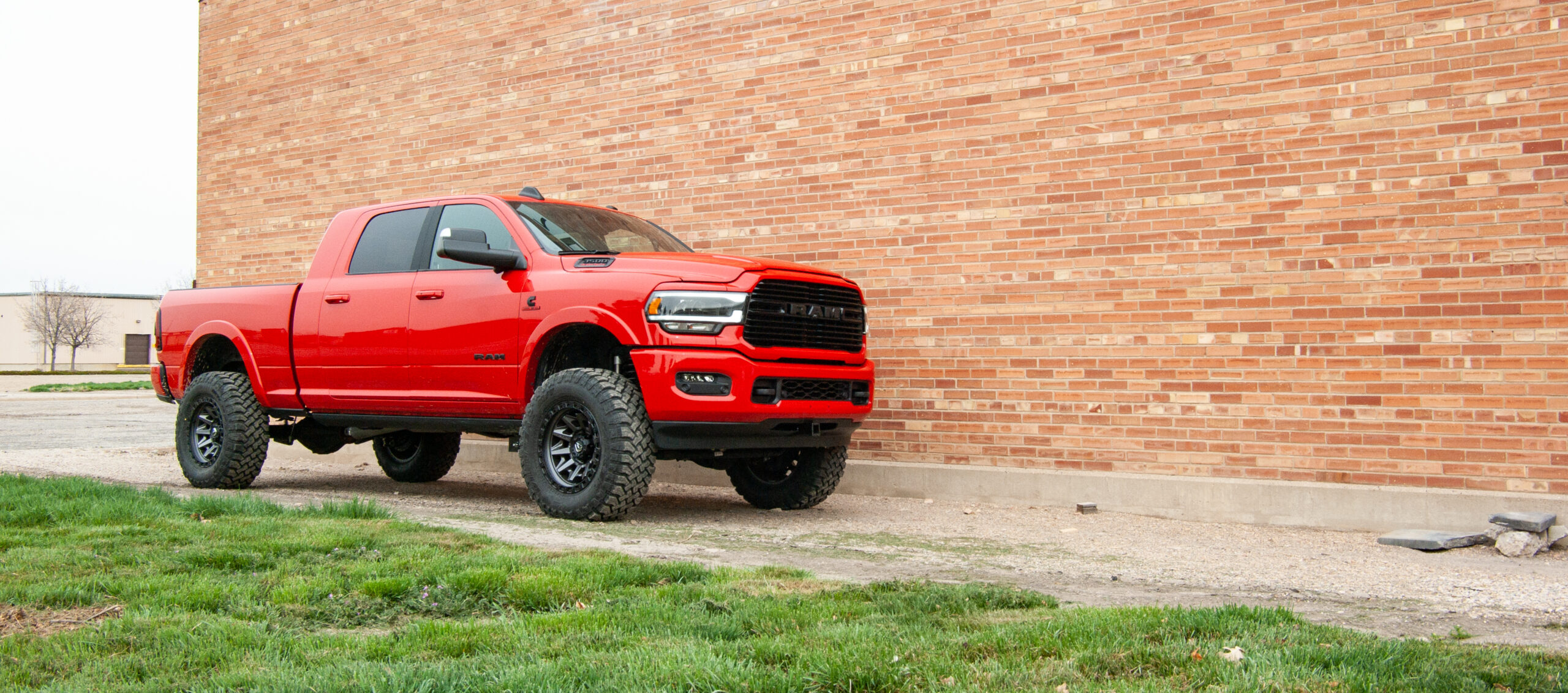

Built for the Ram 3500 HD
The Stance Ram Diesel Owners Want
A taller profile, room for larger tires, and the controlled ride of Falcon 2.1 shocks give the Ram 3500 HD a more commanding presence on the road and trail.
Confirm your application
Important Fitment Information
Designed For
2019–2024 Ram 3500 HD 4WD trucks equipped with the 6.7L High Output diesel engine and Aisin AS69RC transmission.
Not Compatible With
Standard-output diesel engines, HEMI gasoline engines, dually or Classic models, Factory Air Suspension, Auto Level systems, or other automatic-leveling rear-air configurations. Single Cab models have not been validated for fitment and drivability.
Ram TSB 03-003-23: Ram has issued a technical service bulletin addressing a ratcheting or clicking noise that may occur while turning in four-wheel drive. Download the TSB information.
Ready to upgrade your Ram?
Step Up to 4.5 Inches and Falcon 2.1 Control
Give your Ram 3500 High Output Diesel the stance, tire clearance, and controlled performance it deserves with the ReadyLIFT 49-19431.
