New Falcon 2.1 shocks deliver improved ride quality, stability, and control for lifted Ram 3500 High Output diesel trucks. ReadyLIFT Suspension has upgraded its 4.5-Inch Coil Spring Lift Kit for 2019–2024 Ram 3500 HD High Output Diesel 4WD trucks with four vehicle-specific Falcon 2.1 Monotube Shocks.

Part Number 49-19431 delivers the clearance and capability Ram owners expect from a big lift while maintaining a practical, garage-friendly stance. The system provides 4.5 inches of front lift, uses 3-inch rear tapered blocks, and accommodates up to 37x13.50 tires on 20x9 wheels with a –18 offset.

ReadyLIFT’s CNC-machined 6061-T6 billet aluminum Driveline Indexing System re-clocks the transfer case to improve front driveline angles. Heavy-duty radius arm drop brackets, fabricated track bar brackets, a dropped pitman arm, sway bar relocation brackets, and bump-stop extensions help maintain proper suspension and steering geometry.

Features and Benefits

• Fits 2019–2024 Ram 3500 HD High Output Diesel 4WD models
• Provides 4.5 inches of front lift with 3-inch rear tapered blocks
• Clears up to 37x13.50 tires on 20x9 wheels with a –18 offset
• Includes four Ram-specific Falcon 2.1 Monotube Shocks
• Heavy-duty 3/4-inch induction-hardened, chrome-plated shaft
• Large 2.3-inch shock body for increased oil capacity and heat dissipation
• Includes transfer-case clocking components and a heavy-duty transmission crossmember
• Corrects suspension, steering, and driveline geometry

The ReadyLIFT 4.5-Inch Coil Spring Lift Kit combines the stance and tire clearance Ram diesel owners want with upgraded Falcon 2.1 ride control and heavy-duty components engineered for the demands of the Ram 3500 HD.

Important Fitment Notes

Designed for Ram 3500 HD trucks equipped with the 6.7L High Output diesel engine and Aisin AS69RC transmission.

Not compatible with standard-output diesel engines, HEMI gasoline engines, dually or Classic models, factory rear-air suspension, Auto Level systems, or other automatic-leveling rear-air configurations. Single Cab models have not been validated for fitment and drivability.

Maximum fitment: 37x12.50 tire

20'' x 9" wide wheel -18 offset

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

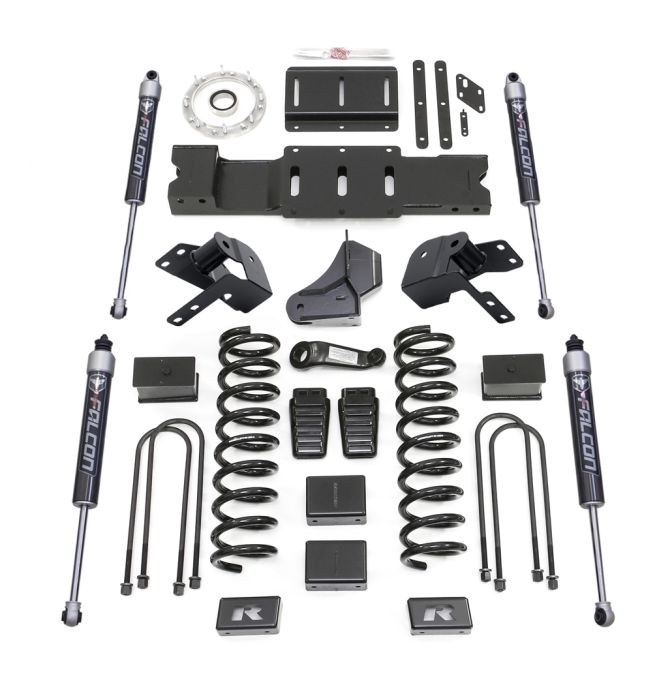

4.5" Front Lift Spring

3-Inch Fabricated Block

19-21 Ram 3500 U-Bolt for 4.5-Inch Kit

Falcon 2.1 Shock, Front

Falcon 2.1 Shock, Rear

Radius Arm Drop, Driver

Radius Arm Drop, Passenger

Front Track Bar Bracket

Driver, Sway Bar Drop Bracket

Passenger, Sway Bar Drop Bracket

Replacement Front Bump Stop

Rear Bump Stop Extension

Pitman Arm, Drop, Replacement

Transmission Connector Bracket

Transmission Crossmember

Transmission Harness Bracket

Transmission Mounting Plate

Transmission Mount Spacer

8 Bolt Clocking Ring

Front Brakeline Bracket

Rear Brakeline Bracket

E-Brake Extension

Pinch Clamp

Transfer Case Spacer

Auto Trans Extension Housing Seal (MOPAR)

Hardware Pack

Falcon Shocks — The Ultimate Blend of Performance, Quality, and Value

• Falcon 2.1 Monotube Shocks deliver increased stability, improved ride quality, and enhanced comfort in a compact, high-value performance package.
• Optimized for on-road driving, Falcon 2.1 shocks provide increased stability over stock while maintaining confident performance both on and off the road.
• Vehicle-specific damping makes Falcon 2.1 shocks ideal for daily-driven trucks and SUVs, as well as enthusiasts looking for a consistent, controlled feel across a variety of driving conditions.
• Race-inspired technology delivers improved handling, stability, and chassis control for lifted trucks, SUVs, and off-road vehicles.

Falcon 2.1 Monotube Shock Specifications

• Large 2.3-inch shock body for increased oil capacity, improved heat dissipation, and consistent damping performance
• 6061-T6 aluminum-alloy billet piston
• Heavy-duty 3/4-inch induction-hardened, chrome-plated shaft designed to resist rock damage, corrosion, and shaft buckling
• Microcellular foam progressive bump stops*

*Bump-stop configuration varies depending on shock absorber collapsed length, tire size, and fender clearance.
