2.5" SST Lift Kit - 2017-2024 Ford Super Duty 4WD - For 1-piece Drive Shaft

$569.95
In stock
SKU
69-2740

2.5" SST Lift Kit 2017-2024 Ford Super Duty (SRW) 4WD

Maintain your factory ride

For use on SRW trucks with 1-piece drive shaft

Allows for 37" tall tires - 35" is ideal for this kit

***2023-2024 Trucks equipped with the "Onboard Scale" option will require the Auto-Leveling Headlight Bracket.***

PN: 67-23210 - Ford Super Duty Auto-Leveling Headlight 2.5'' Lift Bracket Kit

NOTE:  Not compatible with TREMOR editions.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
  • When it comes to lifting your 2017-2023 Ford F250/F350 Super Duty SRW, the ReadyLIFT 2.5" SST Lift Kit system gives you everything you need to raise your 2017-2023 single rear wheel Super Duty 2.5" in front and 2.0" in the rear. This great system specifically incorporates more than just front leveling or a simple lift. In fact it was created due to customer demand for a leveling kit height lift that includes rear blocks so the owner can maintain some rake for towing or hauling. Our popular 2.5" coil spacers and sound isolators retains that great OEM ride and quiet sound. Shock extensions allow you to retain the use of those great riding brand new front shocks rather than having to replace them with aftermarket versions. ReadyLIFT includes sway bar drop mount spacers to put the sway bar in the correct location. Our bump stop extensions allows you to retain the factory distance between the bump stop and axle while a provided carrier bearing spacer gives you the opportunity to adjust your driveshaft angle as needed. Add our popular track bar relocation bracket is included for improved steering quality and you begin to see this truly is the best late model Ford F250 / F350 Super Duty Lift kit value on the market today! If you are looking to give your 2017-2022 F250 / F350 4WD a lifted stance with a slight rake then this strong 2.5" SST Lift kit is exactly what you need!

    ReadyLIFT's 69-2740 2.5" SST Lift Kit is a safe, easy way to lift your Super Duty while maintaining your factory ride. Why spend thousands of dollars for an elaborate mega-lift kit that takes extensive time to install while destroying your ride when you can save money and get a great lift height that rides great and looks awesome while achieving exactly what you wanted to do. ReadyLIFT Smart Suspension Technology is used to make this kit very user friendly to install, requiring no cutting or drilling. Like all other ReadyLIFT kits, the 69-2740 2.5" SST Lift Kit is guaranteed for life against manufacturing defects.

    NOTE: 69-2740 is for use with trucks with a 1-piece drive shaft. NOTE: Not for use on 2019-2023 F350. NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang. NOTE: 2020-23 Super Duty may sit slightly taller in the rear than prior model years due block height variations from the Ford factory. The additional rake works well visually with the vehicle's body lines. NOTE: Not compatible with TREMOR editions.

  • 35" Maximum tire diameter

    35x12.50 for no rub on a 9" wide wheel with +25 offset

    17" - 35X12.5R17

    18" - 315/70R18

    20" - 295/65R20 / 325/60R20

    22" - 35X12.5R22

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • 2.5" coil spring spacers with sound isolators

    fabricated steel rear lift blocks with longer u-bolts

    Includes CNC machined billet carrier bearing spacer

    OEM-style front track bar relocation bracket

    Longer sway bar end links, brake line bracket, bump stop extensions

    Includes front shock extensions

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions

    Have a certified mechanic do it for you!

  • California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov



Quick Overview

2.5" SST Lift Kit 2017-2024 Ford Super Duty (SRW) 4WD

Maintain your factory ride

For use on SRW trucks with 1-piece drive shaft

Allows for 37" tall tires - 35" is ideal for this kit

***2023-2024 Trucks equipped with the "Onboard Scale" option will require the Auto-Leveling Headlight Bracket.***

PN: 67-23210 - Ford Super Duty Auto-Leveling Headlight 2.5'' Lift Bracket Kit

NOTE:  Not compatible with TREMOR editions.

Details

When it comes to lifting your 2017-2023 Ford F250/F350 Super Duty SRW, the ReadyLIFT 2.5" SST Lift Kit system gives you everything you need to raise your 2017-2023 single rear wheel Super Duty 2.5" in front and 2.0" in the rear. This great system specifically incorporates more than just front leveling or a simple lift. In fact it was created due to customer demand for a leveling kit height lift that includes rear blocks so the owner can maintain some rake for towing or hauling. Our popular 2.5" coil spacers and sound isolators retains that great OEM ride and quiet sound. Shock extensions allow you to retain the use of those great riding brand new front shocks rather than having to replace them with aftermarket versions. ReadyLIFT includes sway bar drop mount spacers to put the sway bar in the correct location. Our bump stop extensions allows you to retain the factory distance between the bump stop and axle while a provided carrier bearing spacer gives you the opportunity to adjust your driveshaft angle as needed. Add our popular track bar relocation bracket is included for improved steering quality and you begin to see this truly is the best late model Ford F250 / F350 Super Duty Lift kit value on the market today! If you are looking to give your 2017-2022 F250 / F350 4WD a lifted stance with a slight rake then this strong 2.5" SST Lift kit is exactly what you need!

ReadyLIFT's 69-2740 2.5" SST Lift Kit is a safe, easy way to lift your Super Duty while maintaining your factory ride. Why spend thousands of dollars for an elaborate mega-lift kit that takes extensive time to install while destroying your ride when you can save money and get a great lift height that rides great and looks awesome while achieving exactly what you wanted to do. ReadyLIFT Smart Suspension Technology is used to make this kit very user friendly to install, requiring no cutting or drilling. Like all other ReadyLIFT kits, the 69-2740 2.5" SST Lift Kit is guaranteed for life against manufacturing defects.

NOTE: 69-2740 is for use with trucks with a 1-piece drive shaft. NOTE: Not for use on 2019-2023 F350. NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang. NOTE: 2020-23 Super Duty may sit slightly taller in the rear than prior model years due block height variations from the Ford factory. The additional rake works well visually with the vehicle's body lines. NOTE: Not compatible with TREMOR editions.

Tire Fitment

35" Maximum tire diameter

35x12.50 for no rub on a 9" wide wheel with +25 offset

17" - 35X12.5R17

18" - 315/70R18

20" - 295/65R20 / 325/60R20

22" - 35X12.5R22

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

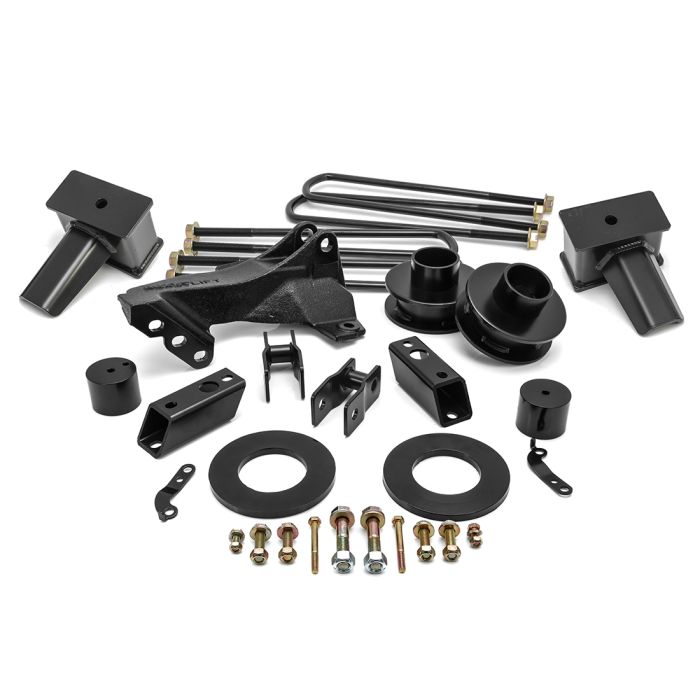

Kit Components

2.5" coil spring spacers with sound isolators

fabricated steel rear lift blocks with longer u-bolts

Includes CNC machined billet carrier bearing spacer

OEM-style front track bar relocation bracket

Longer sway bar end links, brake line bracket, bump stop extensions

Includes front shock extensions

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions

Have a certified mechanic do it for you!

Additional Information
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov


Warning: This product can expose you to chemicals include [name of chemical], which [is/are] known to the State of California to case [cancer]/[birth defects or other reproductive harm]. For more information go to www.P65Warnings.ca.gov.
