6" Lift Kit W/ Falcon 1.1 Shocks - Toyota Tundra 2007-2021

$2,299.95
In stock
SKU
44-56770

6" Lift Kit System.
2007-2021 Tundra (no TRD PRO).
2wd/4wd.
Allows for up to 35" tall tires.
Falcon 1.1 Shocks.
Install time: approx 10 hours.
Maintain Your Factory Ride.
Maintain Your Factory Turning Radius.

Note: Not for use on 2015-2021 Tundra TRD Pro w/ Bilstein coilover shocks, the TRD rear sway bar option, and will only work with factory 20" wheels - will not work with factory 18" wheels. Most aftermarket wheels are compatible (confirm fitment prior to installation).

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
  • The venerable ReadyLIFT 6” kit for 2007-2021 Toyota Tundra have been a favorite big lift solution for Tundra owners.  Drawing on this product success, ReadyLIFT proudly introduces an updated version now available with our all-new Falcon 1.1 monotube rear shocks specifically designed, engineered, and tuned for 2007-2021 Toyota Tundra Trucks!



    The 44-56770 6” lift kit for Tundra trucks are packed with great standard features! Starting with our ultra-strong laser cut, CNC bent, welded and boxed sub-frame drop assemblies that keep the suspension geometry where it is supposed to be and increases available ground clearance! Our proprietary, precision-designed iron front knuckles feature CNC-machining to guarantee fit while retaining the factory tie rods with minor trimming required.



    The new ReadyLIFT Tundra front lift is achieved using the time-tested offset spacer design. These strong steel spacers attach to the factory strut - resulting in a factory ride - while positioning the suspension in such a way as to not increase track width. What does that mean? It means the front tires won't still out further than the rear tires like most other kits. It means owners can run stock 20" wheels and use the factory spare tire if needed (restrictions apply).



    The ReadyLIFT sub-assembly design features a truly innovative approach to dropping the differential. The differential drop system is engineered for easy installation and correctly positions the differential to maintain CV axle and driveline angles. With the 44-56770 lift kits customers can rest assured they will not be prematurely wearing out tires. The ReadyLIFT system is built around maintaining proper alignment and geometry specifications. For the rear, this kit includes the time-tested OEM-style cast iron rear lift blocks and longer U-bolts with hardware. Additionally, ReadyLIFT also includes thoughtful accessories such as new bump stop extensions all the way around as well as sway bar frame mount brackets to keep the front sway bar in a factory geometry. All of this contributes to an excellent driving and handling suspension system that truly enhances the typical Toyota Tundra truck!

  • 35" Maximum tire diameter

    35x12.50 for no rub on a 9" wide wheel with +25 offset

    18" - 315/70R18

    20" - 295/65R20 / 325/60R20

    22" - 35X12.5R22

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • (2) Iron ductile knuckles engineered to allow for use of the factory tie rods

    (2) 6" strut extensions

    (2) laser cut and boxed steel dropped crossmembers

    (2) sway bar drop spacers

    (4) bump stop extensions

    OEM style cast iron rear lift blocks with new u-bolts

    Complete easy-to-install differential drop mount system

    (1) skid plate

    (2) Falcon 1.1 Monotube series shocks.

  • SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner’s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

    Do it yourself!

    Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.

    Download Pdf Instructions
    Estimated Installation Time: 12 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!

  • California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov



Quick Overview

6" Lift Kit System.
2007-2021 Tundra (no TRD PRO).
2wd/4wd.
Allows for up to 35" tall tires.
Falcon 1.1 Shocks.
Install time: approx 10 hours.
Maintain Your Factory Ride.
Maintain Your Factory Turning Radius.

Note: Not for use on 2015-2021 Tundra TRD Pro w/ Bilstein coilover shocks, the TRD rear sway bar option, and will only work with factory 20" wheels - will not work with factory 18" wheels. Most aftermarket wheels are compatible (confirm fitment prior to installation).

Details

The venerable ReadyLIFT 6” kit for 2007-2021 Toyota Tundra have been a favorite big lift solution for Tundra owners.  Drawing on this product success, ReadyLIFT proudly introduces an updated version now available with our all-new Falcon 1.1 monotube rear shocks specifically designed, engineered, and tuned for 2007-2021 Toyota Tundra Trucks!



The 44-56770 6” lift kit for Tundra trucks are packed with great standard features! Starting with our ultra-strong laser cut, CNC bent, welded and boxed sub-frame drop assemblies that keep the suspension geometry where it is supposed to be and increases available ground clearance! Our proprietary, precision-designed iron front knuckles feature CNC-machining to guarantee fit while retaining the factory tie rods with minor trimming required.



The new ReadyLIFT Tundra front lift is achieved using the time-tested offset spacer design. These strong steel spacers attach to the factory strut - resulting in a factory ride - while positioning the suspension in such a way as to not increase track width. What does that mean? It means the front tires won't still out further than the rear tires like most other kits. It means owners can run stock 20" wheels and use the factory spare tire if needed (restrictions apply).



The ReadyLIFT sub-assembly design features a truly innovative approach to dropping the differential. The differential drop system is engineered for easy installation and correctly positions the differential to maintain CV axle and driveline angles. With the 44-56770 lift kits customers can rest assured they will not be prematurely wearing out tires. The ReadyLIFT system is built around maintaining proper alignment and geometry specifications. For the rear, this kit includes the time-tested OEM-style cast iron rear lift blocks and longer U-bolts with hardware. Additionally, ReadyLIFT also includes thoughtful accessories such as new bump stop extensions all the way around as well as sway bar frame mount brackets to keep the front sway bar in a factory geometry. All of this contributes to an excellent driving and handling suspension system that truly enhances the typical Toyota Tundra truck!

Tire Fitment

35" Maximum tire diameter

35x12.50 for no rub on a 9" wide wheel with +25 offset

18" - 315/70R18

20" - 295/65R20 / 325/60R20

22" - 35X12.5R22

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

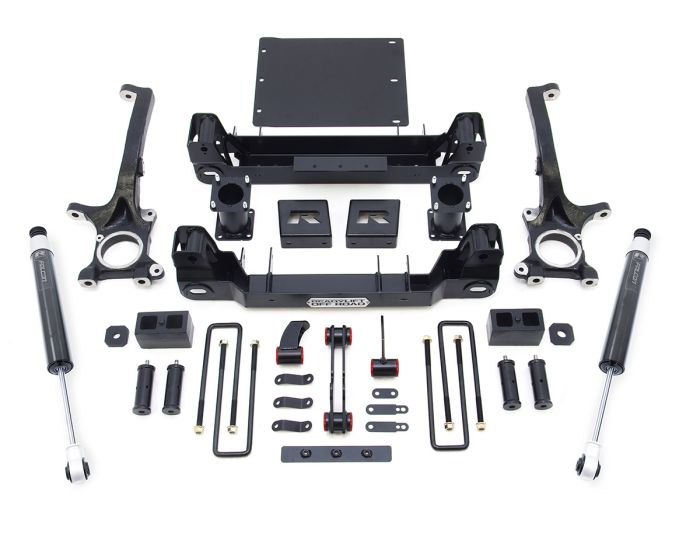

Kit Components

(2) Iron ductile knuckles engineered to allow for use of the factory tie rods

(2) 6" strut extensions

(2) laser cut and boxed steel dropped crossmembers

(2) sway bar drop spacers

(4) bump stop extensions

OEM style cast iron rear lift blocks with new u-bolts

Complete easy-to-install differential drop mount system

(1) skid plate

(2) Falcon 1.1 Monotube series shocks.

Installation
SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner’s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

Do it yourself!

Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.

Download Pdf Instructions
Estimated Installation Time: 12 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
