LOGIQ 2014+ RAM 2500 - Air Spring Kit (Coil Replacement)
Upgrade your RAM 2500 with LOGIQ’s Air Spring Kit—a coil replacement solution that swaps factory coils (or factory air) for primary air at the rear axle. This 100% factory-assembled kit is engineered for your truck and delivers unmatched ride comfort when unloaded, enhanced stability under load, and adjustable height for easier trailer hookup or cargo access. It fits trucks at factory height and up to 3" lifts right out of the box, with upgrade options available for 3–6" lift kits.
Ride Height = factory to +3". For lift amount +3" to +6" add spacer kit 89-12140-3. Includes heat wrap kit for tailpipe.
Learn more about LOGIQ and Air Solutions!
Upgrade your RAM 2500 with LOGIQ’s Air Spring Kit—a coil replacement solution that swaps factory coils (or factory air) for primary air at the rear axle. This 100% factory-assembled kit is engineered for your truck and delivers unmatched ride comfort when unloaded, enhanced stability under load, and adjustable height for easier trailer hookup or cargo access. It fits trucks at factory height and up to 3" lifts right out of the box, with upgrade options available for 3–6" lift kits.
Ride Height = factory to +3". For lift amount +3" to +6" add spacer kit 89-12140-3. Includes heat wrap kit for tailpipe.
Learn more about LOGIQ and Air Solutions!
This system is also a direct replacement for RAM 2500 models equipped with factory air suspension. If retaining the factory air management system, a 6mm-to-¼" push-to-connect adapter (not included) will be required.
WARNING - Never exceed manufacturer's Maximum Payload or GVWR
"Faster Installation - No drilling required... Simple “clamp around” bracket designs combined with 100% pre-assembly cuts installation time in half!
5th Wheel Hitch Integration - Compatible with all 5th wheel hitches.
Precision Fitment - Built-in features that locate off the factory frame and leaf spring locations guarantee proper fitment, geometry, and operation for every install.
Properly Scaled to Match the Size of Your Truck - Rather than using the archaic “one-size-fits-all” approach, LOGIQ properly scales the air spring size and quantity to truly maximize your specific truck’s towing and hauling capability.
Improved Ride Quality, Stability, and Load Support - Competitor double-bellow style air springs have a natural frequency of ~2.5Hz (close to race car stiffness). LOGIQ Air Springs have a 1.6Hz natural frequency to ensure that you will feel the difference.
More Suspension Travel - Competitors limit the factory travel and typically eliminate the OE bump stops. LOGIQ Air Spring Kits have improved suspension travel and retain the factory bump stops for optimal suspension performance.
Lifetime Warranty - All LOGIQ suspension kits come with a Limited Lifetime Warranty and a FREE ReadyGUARD 5-year - 60,000 mile Powertrain Warranty."
Learn more about LOGIQ and Air Solutions!
This product may be covered by one or more trademarks, copyrights or patents. This information can be found at IP.WHEELPROS.COM

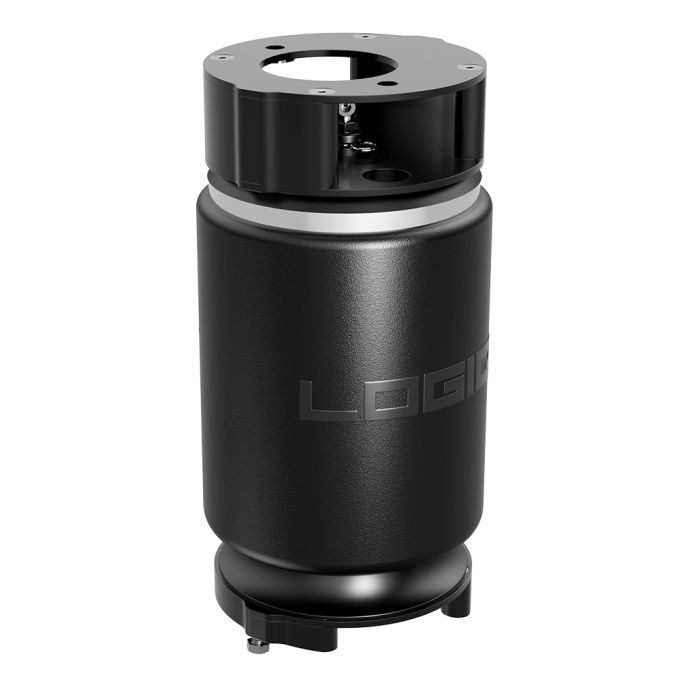

(1) Passenger Side Air Spring Assembly
(1) Hardware Kit
(1) Manual Inflation Kit
(1) Exhaust Heat Wrap Kit
SAEJ2492 WARNING:By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
INSTALLATION ALIGNMENT NOTE: Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.
INSTALLATION HEADLAMP AIM NOTE: In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation. You may incur additional costs to adjust the headlamp system.
INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE: If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle™s systems for proper aim and function after product installation. In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS. You may incur additional costs to adjust ADAS systems.
Have a certified mechanic do it for you!
Ride Height = factory to +3". For lift amount +3" to +6" add spacer kit 89-12140-3. Includes heat wrap kit for tailpipe.
5th Wheel Hitch Integration - Compatible with all 5th wheel hitches.
Air Spring Location: Axle Mounted Inboard Frame Rails
Air Spring Quantity: 2
Lifting Force: 8,200 lbs @ 150 psi
Payload Capacity: 5,000 lbs @ 150 psi
Maximum Pressure: 150 psi
Minimum Pressure: 20 psi
TIRE/WHEEL SIZING GUIDE
