Track Bar Relocation Bracket - Dodge Ram 2500/3500 4WD 2009-2013

$139.95
In stock
SKU
47-1511

Track Bar Relocation Bracket for 4-6" Lifts Ideal for use with 5" Lifts Heavy Duty Plate Steel Construction Positions track bar for correct geometry and eliminates axle swing during articulation.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
  • ReadyLIFT is proud to offer 2009-2013 Dodge Ram 2500/3500 4WD truck owners a heavy-duty suspension option for their lifted trucks. When you lift the suspension of a straight front axle truck, the axle wants to generally swing to the driver's side. This swinging action can affect the handling and driving comfort. By dropping the track bar frame mounting position down to a point where the track bar is at the factory angle, correct geometry is the outcome and thus, your truck will steering and handle as intended. A lot of bump steer issues are due to the track bar not being at the proper angle. This new heavy-duty track bar relocation bracket addresses that problem. The ReadyLIFT heavy-duty track bar relocation bracket is made of heavy-duty plate steel for a super strong frame mounting position and includes large Grade-10 hardware and a steel pilot bushing. This bracket easily installs on 2009-2013 Dodge Ram 2500/3500 4WD trucks and accepts the factory track bar or aftermarket bars like the ReadyLIFT 77-1509 heavy duty front track bar. The 47-1511 Track Bar Relocation Bracket is made specifically for use with 5" Lifts; however, it can be used on trucks with 4-6" of front lift.
  • One fabricated steel front track bar relocation bracket with all necessary hardware.

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.




    Estimated Installation Time: 4.8 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!

  • California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

Quick Overview
Track Bar Relocation Bracket for 4-6" Lifts Ideal for use with 5" Lifts Heavy Duty Plate Steel Construction Positions track bar for correct geometry and eliminates axle swing during articulation.
Details
ReadyLIFT is proud to offer 2009-2013 Dodge Ram 2500/3500 4WD truck owners a heavy-duty suspension option for their lifted trucks. When you lift the suspension of a straight front axle truck, the axle wants to generally swing to the driver's side. This swinging action can affect the handling and driving comfort. By dropping the track bar frame mounting position down to a point where the track bar is at the factory angle, correct geometry is the outcome and thus, your truck will steering and handle as intended. A lot of bump steer issues are due to the track bar not being at the proper angle. This new heavy-duty track bar relocation bracket addresses that problem. The ReadyLIFT heavy-duty track bar relocation bracket is made of heavy-duty plate steel for a super strong frame mounting position and includes large Grade-10 hardware and a steel pilot bushing. This bracket easily installs on 2009-2013 Dodge Ram 2500/3500 4WD trucks and accepts the factory track bar or aftermarket bars like the ReadyLIFT 77-1509 heavy duty front track bar. The 47-1511 Track Bar Relocation Bracket is made specifically for use with 5" Lifts; however, it can be used on trucks with 4-6" of front lift.
Kit Components

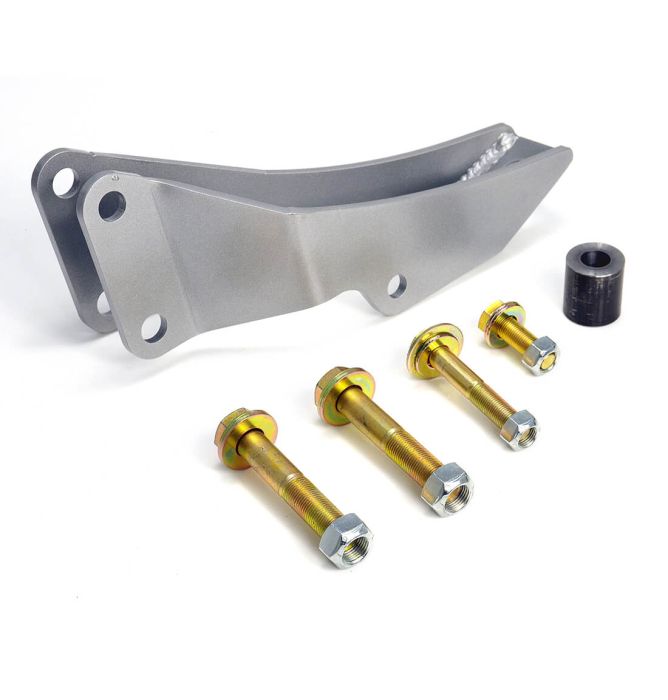

One fabricated steel front track bar relocation bracket with all necessary hardware.

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.






DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 4.8 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
