2.0'' SST Lift Kit - 2022-2024 Hyundai Santa Cruz AWD

$449.95
In stock
SKU
69-72200

2" premium SST lift kit solution for the new 2022-2024 Hyundai Santa Cruz AWD

Laser-cut fabricated steel front strut extensions and CNC-machined billet Aluminum rear spacers provide a great lift system that allows for taller off road tires and wheels.

Includes front sway bar extension brackets.

Allows for up to a 245/65R17 tire on an 8" wide wheel with +38 offset.

NOTE:  Not compatible with FWD.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

  • ReadyLIFT is excited to announce that we now offer an all-new 2" SST lift kit for the brand-new 2022-2024 Hyundai Santa Cruz AWD! Hyundai's new mid-size truck has been hugely popular right out of the gate, at one point being the most popular new model truck sold! At ReadyLIFT, we sensed this new Hyundai truck would make a big splash with consumers who want an economical light-duty pickup with popular CUV qualities. Our engineers leveraged their Hyundai Tucson and Kia Sportage vehicle platform tribal knowledge to develop this all-new Santa Cruz lift kit. There are a few differences warranting a vehicle-specific kit just for the 2022 Santa Cruz. Introducing the 69-72200 Hyundai Santa Cruz AWD 2'' SST lift kit! The all-new 69-72200 2" Santa Cruz SST lift Kit has been engineered to provide all the great features and benefits found in our popular CUV lift line. If you are looking for an economical way to increase the adventurous nature of the new Hyundai Santa Cruz, the 69-72200 2" SST Lift Kit is a perfect choice. Easy bolt-on installation leads to increased ground clearance while enabling the option to install larger off-road tires and more aggressive wheel offsets than stock. The 69-72200 SST lift kit includes precision laser-cut, heavy-duty fabricated steel front strut extensions and CNC-machined billet Aluminum rear coil spring spacers providing an equal 2" of lift both front and rear. Front sway bar drop extensions allow retention of the factory end links while maintaining the factory driving characteristics. This complete bolt-on SST lift kit will allow for up to a 245/65R17 size tire on an 8" wide wheel with +38 offset comfortably with no rubbing issues.
  • Allows for up to a 245/65R17  size tire on an 8" wide wheel with +38 offset‚

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • 2x Front strut spacer

    2x Front sway bar link extension bracket

    2x Front sway bar link ball joint spacer

    4x Front lower control arm spacers

    2x Rear spring spacer

    2x Rear shock extension

    Hardware pack

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 5 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!

  • Features & Benefits:

    • Exclusive all-new 2-inch lift system for the 2022-2024 Hyundai Santa Cruz AWD
    • Provides a two-inch lift increase over stock which increases ground clearance and allows for larger wheels and tires.
    • Allows for up to 245/65R17 tire on a +38 wheel with no.
    • Kit includes all-new laser-cut steel front strut extensions and CNC-machined aircraft-grade 6061-T6 billet Aluminum rear top mount spacers.
    • No modifications or cutting is required to install.
    • Includes our ReadyLIFT ReadyGuard Powertrain warranty.

Quick Overview

2" premium SST lift kit solution for the new 2022-2024 Hyundai Santa Cruz AWD

Laser-cut fabricated steel front strut extensions and CNC-machined billet Aluminum rear spacers provide a great lift system that allows for taller off road tires and wheels.

Includes front sway bar extension brackets.

Allows for up to a 245/65R17 tire on an 8" wide wheel with +38 offset.

NOTE:  Not compatible with FWD.

Details
ReadyLIFT is excited to announce that we now offer an all-new 2" SST lift kit for the brand-new 2022-2024 Hyundai Santa Cruz AWD! Hyundai's new mid-size truck has been hugely popular right out of the gate, at one point being the most popular new model truck sold! At ReadyLIFT, we sensed this new Hyundai truck would make a big splash with consumers who want an economical light-duty pickup with popular CUV qualities. Our engineers leveraged their Hyundai Tucson and Kia Sportage vehicle platform tribal knowledge to develop this all-new Santa Cruz lift kit. There are a few differences warranting a vehicle-specific kit just for the 2022 Santa Cruz. Introducing the 69-72200 Hyundai Santa Cruz AWD 2'' SST lift kit! The all-new 69-72200 2" Santa Cruz SST lift Kit has been engineered to provide all the great features and benefits found in our popular CUV lift line. If you are looking for an economical way to increase the adventurous nature of the new Hyundai Santa Cruz, the 69-72200 2" SST Lift Kit is a perfect choice. Easy bolt-on installation leads to increased ground clearance while enabling the option to install larger off-road tires and more aggressive wheel offsets than stock. The 69-72200 SST lift kit includes precision laser-cut, heavy-duty fabricated steel front strut extensions and CNC-machined billet Aluminum rear coil spring spacers providing an equal 2" of lift both front and rear. Front sway bar drop extensions allow retention of the factory end links while maintaining the factory driving characteristics. This complete bolt-on SST lift kit will allow for up to a 245/65R17 size tire on an 8" wide wheel with +38 offset comfortably with no rubbing issues.
Tire Fitment

Allows for up to a 245/65R17  size tire on an 8" wide wheel with +38 offset‚

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

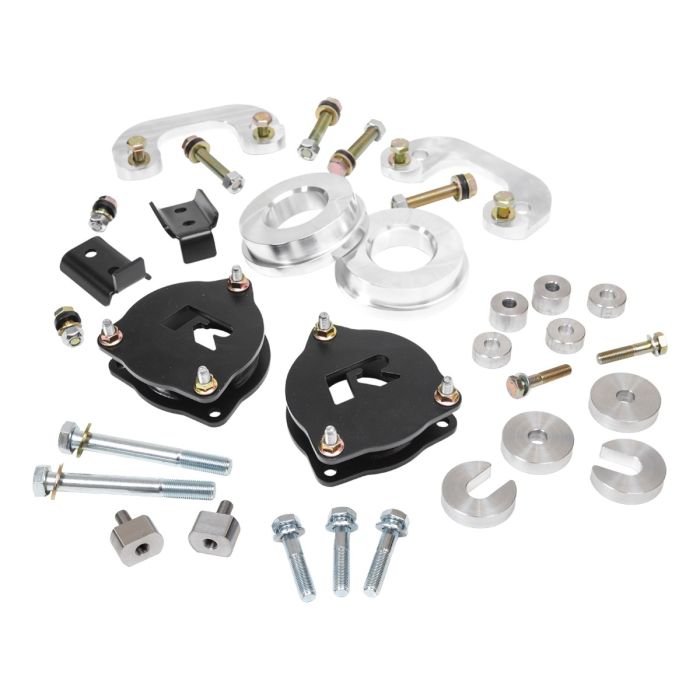

Kit Components

2x Front strut spacer

2x Front sway bar link extension bracket

2x Front sway bar link ball joint spacer

4x Front lower control arm spacers

2x Rear spring spacer

2x Rear shock extension

Hardware pack

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 5 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!

Additional Information

Features & Benefits:

  • Exclusive all-new 2-inch lift system for the 2022-2024 Hyundai Santa Cruz AWD
  • Provides a two-inch lift increase over stock which increases ground clearance and allows for larger wheels and tires.
  • Allows for up to 245/65R17 tire on a +38 wheel with no.
  • Kit includes all-new laser-cut steel front strut extensions and CNC-machined aircraft-grade 6061-T6 billet Aluminum rear top mount spacers.
  • No modifications or cutting is required to install.
  • Includes our ReadyLIFT ReadyGuard Powertrain warranty.
