2.5"F / 1.5"R SST Lift Kit - GM Colorado / Canyon 2WD 2004-2012

$399.95
In stock
SKU
69-3075

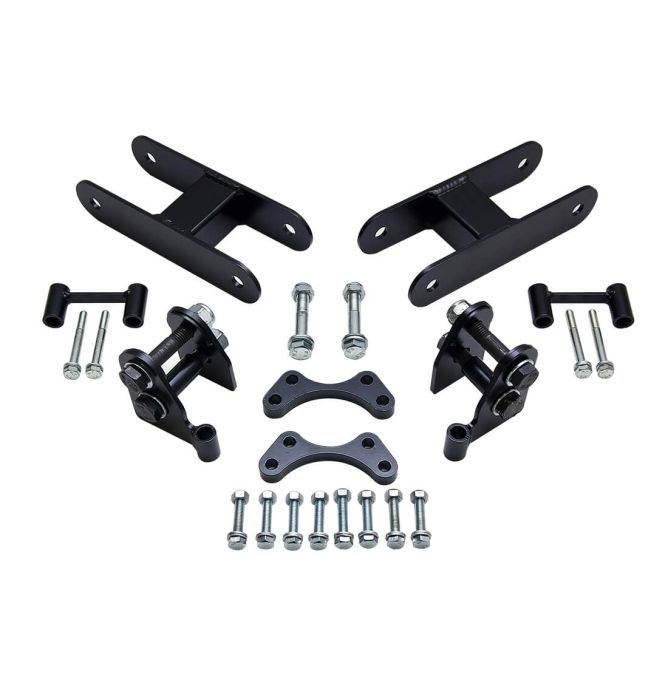

Max Lift 2.5"F / 1.5"R - Max Tire 30" For 2WD Coil Spring Applications Only 4WD applications use 69-3070 Includes lower front strut extensions, rear shackles and rear shock extensions.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
  • ReadyLIFT has a SST Lift Kit system for the 2004-2012 Chevy Colorado 2WD and GMC Canyon 2WD. This is kit is designed for use on 2WD coil spring suspension trucks only. The ReadyLIFT 69-3075 Colorado/Canyon Lift Kit will raise your truck 2.5" in front and 1.5" in the rear for a mild lifted stance while retaining a slight rake for hauling or towing. The 69-3075 SST Mild Lift Kit features unique design elements engineered around providing the proper lift without compromising the ride quality or the factory geometry. The kit includes a pair of steel lower strut extensions that bolt together and attach to the lower control arm and the lower strut mount to generate the 2.5" of front lift. In addition to the lower strut extensions, this kit also includes 1/2" plate steel upper ball joint spacers that install between the upper ball joint and the inside of the control arm to eliminate upper arm to coil spring contact during suspension cycling. To raise the rear of the 2WD Colorado/Canyon, ReadyLIFT engineered new rear leaf spring shackles which, when installed, will raise the rear of your truck 1.5". In addition, the rear system also includes steel rear upper shock mount extensions designed to keep the rear shock in the stock position and length which results in a factory ride and no need to buy new shocks. The 69-3075 is all-steel construction protected with a tough powder-coated finish. Each kit comes complete with 10.9 class zinc-plated hardware and intuitive instructions detailing the steps required for installation. The 69-3075 lift kit allows for installation of up to 30" tires (255/70-16). NOTE: This is kit is designed for use on 2WD coil spring suspension trucks only.
  • 31" Maximum tire diameter

    31x10.50 for no rub on a 8" wide wheel with 0 offset

    17" - 255/70R17

    18" - 265/65R18 - 275/60R18

    20" - 255/55R20

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 5 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!

  • California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

Quick Overview
Max Lift 2.5"F / 1.5"R - Max Tire 30" For 2WD Coil Spring Applications Only 4WD applications use 69-3070 Includes lower front strut extensions, rear shackles and rear shock extensions.
Details
ReadyLIFT has a SST Lift Kit system for the 2004-2012 Chevy Colorado 2WD and GMC Canyon 2WD. This is kit is designed for use on 2WD coil spring suspension trucks only. The ReadyLIFT 69-3075 Colorado/Canyon Lift Kit will raise your truck 2.5" in front and 1.5" in the rear for a mild lifted stance while retaining a slight rake for hauling or towing. The 69-3075 SST Mild Lift Kit features unique design elements engineered around providing the proper lift without compromising the ride quality or the factory geometry. The kit includes a pair of steel lower strut extensions that bolt together and attach to the lower control arm and the lower strut mount to generate the 2.5" of front lift. In addition to the lower strut extensions, this kit also includes 1/2" plate steel upper ball joint spacers that install between the upper ball joint and the inside of the control arm to eliminate upper arm to coil spring contact during suspension cycling. To raise the rear of the 2WD Colorado/Canyon, ReadyLIFT engineered new rear leaf spring shackles which, when installed, will raise the rear of your truck 1.5". In addition, the rear system also includes steel rear upper shock mount extensions designed to keep the rear shock in the stock position and length which results in a factory ride and no need to buy new shocks. The 69-3075 is all-steel construction protected with a tough powder-coated finish. Each kit comes complete with 10.9 class zinc-plated hardware and intuitive instructions detailing the steps required for installation. The 69-3075 lift kit allows for installation of up to 30" tires (255/70-16). NOTE: This is kit is designed for use on 2WD coil spring suspension trucks only.
Tire Fitment

31" Maximum tire diameter

31x10.50 for no rub on a 8" wide wheel with 0 offset

17" - 255/70R17

18" - 265/65R18 - 275/60R18

20" - 255/55R20

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 5 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
