3.5" SST Lift Kit - Ford Super Duty DRW 4WD 2017-2019

$699.95
In stock
SKU
69-2734

3.5" SST Lift Kit 2017-2019 Ford Super Duty Dually (DRW) Standard Dually Only. Will not fit camper package or service package rear suspensions Compatible with F350 and F450 DRW Safely lift your DRW Super Duty 4WD 3.5" Maintain your factory ride Allows for 37" tall tires

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
  • ReadyLIFT's classic 3.5" SST Lift Kit has long been one of the most preferred methods of lifting a Super Duty truck. For the 2017-2019 Ford Super Duty 4WD DRW (Dually) we now have a 3.5" kit for you! ReadyLIFT designed this 3.5" Lift kit for DRW (dually) owners seeking a rugged and durable lift kit. Our dually (DRW) specific lift solution features new lift dual rear wheel-specific rear blocks and u-bolts. The 69-2734 2017-2019 3.5" DRW SST lift kit features heavy-duty fabricated steel coil spring spacers with sound isolators, a heavy-duty OEM-style cast iron front track bar relocation bracket and fabricated steel radius arm drop brackets. This great new system for DRW Super Duty trucks includes everything you need to get the lift job done right without cutting any corners. This kit includes sway bar drop brackets, bump stop extensions, brake line extended brackets and shock extensions so you can retain use of your factory shocks. This kit will allow for 37" tall tires which is a great size for this lift. NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang. NOTE: Not compatible with TREMOR editions. Compatible with F350 and F450 DRW
  • 3.5" lift front coil spring spacers with isolators

    Fabricated steel rear lift blocks with OEM style bump stop landings

    Longer u-bolts and hardware.

    OEM-style cast iron front track bar relocation bracket

    Radius arm drop brackets

    Sway bar drop brackets, front brake line extended brackets, bump stop mount extensions

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 7 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!

  • California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

Quick Overview
3.5" SST Lift Kit 2017-2019 Ford Super Duty Dually (DRW) Standard Dually Only. Will not fit camper package or service package rear suspensions Compatible with F350 and F450 DRW Safely lift your DRW Super Duty 4WD 3.5" Maintain your factory ride Allows for 37" tall tires
Details
ReadyLIFT's classic 3.5" SST Lift Kit has long been one of the most preferred methods of lifting a Super Duty truck. For the 2017-2019 Ford Super Duty 4WD DRW (Dually) we now have a 3.5" kit for you! ReadyLIFT designed this 3.5" Lift kit for DRW (dually) owners seeking a rugged and durable lift kit. Our dually (DRW) specific lift solution features new lift dual rear wheel-specific rear blocks and u-bolts. The 69-2734 2017-2019 3.5" DRW SST lift kit features heavy-duty fabricated steel coil spring spacers with sound isolators, a heavy-duty OEM-style cast iron front track bar relocation bracket and fabricated steel radius arm drop brackets. This great new system for DRW Super Duty trucks includes everything you need to get the lift job done right without cutting any corners. This kit includes sway bar drop brackets, bump stop extensions, brake line extended brackets and shock extensions so you can retain use of your factory shocks. This kit will allow for 37" tall tires which is a great size for this lift. NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang. NOTE: Not compatible with TREMOR editions. Compatible with F350 and F450 DRW

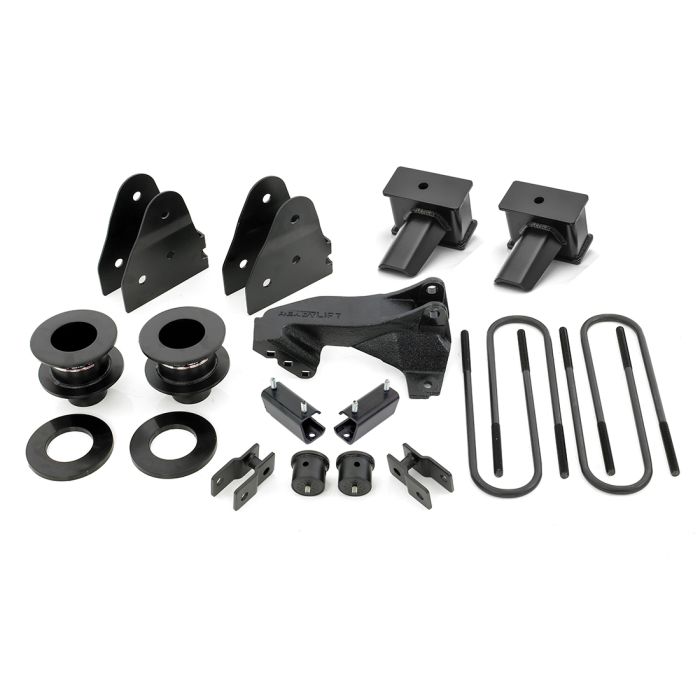

Kit Components

3.5" lift front coil spring spacers with isolators

Fabricated steel rear lift blocks with OEM style bump stop landings

Longer u-bolts and hardware.

OEM-style cast iron front track bar relocation bracket

Radius arm drop brackets

Sway bar drop brackets, front brake line extended brackets, bump stop mount extensions

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 7 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!

Additional Information
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
Warning: This product can expose you to chemicals include [name of chemical], which [is/are] known to the State of California to case [cancer]/[birth defects or other reproductive harm]. For more information go to www.P65Warnings.ca.gov.
