3" SST Lift Kit - 2022-2024 Toyota Tundra 2WD/4WD

$899.95
In stock
SKU
69-52310

2022-2024 Tundra 2WD/4WD - 3" SST Lift Kit Bolt-on installation

  • No modifications required.
  • 3" front lift with a 2" tall rear spacer kit.
  • Allows for up to 35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset.
  • Includes strong tubular steel Control Arms with heavy-duty ball joints.
  • No Cutting of OEM Parts or Welding Maintains Factory Ride

*Note: Kit does not fit Tundra TRD PRO, trucks equipped with Load-Leveling Rear Height Control Air Suspension. The factory TRD Skid plate will not bolt back up once the kit is installed.  ReadyLIFT’s new Toyota Tundra High-Performance CV Axle (PN: 67-52420CV) kits are recommended on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

  • Toyota's newest Tundra has become a popular choice for new truck owners. And like the Tundra's before it, new 2022-2024 owners want a quality bolt-on mild lift system that will increase ground clearance and add room for larger wheels and tires, all while maintaining the great factory ride and handling. Introducing the ReadyLIFT 69-52310 3" SST Lift Kit exclusively engineered for the new 2022-2024 Toyota Tundra pickups. This new SST lift kit is a second-generation version of our popular 69-5475 3" SST lift kit for the 2021 and older models. Many of the same premium features found in that kit have migrated to the new 69-52310 kit such as our popular tubular control arms with corrected ball joint pivot angles. Fabricated steel front strut spacers 2" tall precision fabricated steel rear lift spacers with new longer U-bolts give the 2022-2024 Tundra a nice, nearly level stance with 3" of lift in front, and the kit includes new rear shock extensions so you can retain use of your factory rear shocks. The all-new 69-52310 2022-2024 Toyota Tundra 3" SST lift kit is an excellent choice for those who want to run larger tires such as 35s. The maximum tire size for use with this kit is a 35x12.5 on a 18"x9" wide wheel with +12 offset.


    ReadyLIFT’s new Toyota Tundra High-Performance CV Axle (PN: 67-52420CV) kits are recommended on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer.

  • 35" Maximum tire diameter

    35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • Front Strut Spacer, Rear Spring Spacer, Rear Shock Extension, Upper Control Arm Left Hand Side, Upper Control Arm Right-hand Side Front Differential Drop Left Hand Side, Front Differential Drop Right Hand Side, Crush Sleeve, Differential Drop Polyurethane Bushing, End Link Spacer Brake Line Relocation Bracket Left Hand Side, Brake Line Relocation Bracket Right Hand Side, Rear Brake Line Spacer, Rear Brake Line Relocation Bracket, Hardware Pack
  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 7 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!


Quick Overview

2022-2024 Tundra 2WD/4WD - 3" SST Lift Kit Bolt-on installation

  • No modifications required.
  • 3" front lift with a 2" tall rear spacer kit.
  • Allows for up to 35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset.
  • Includes strong tubular steel Control Arms with heavy-duty ball joints.
  • No Cutting of OEM Parts or Welding Maintains Factory Ride

*Note: Kit does not fit Tundra TRD PRO, trucks equipped with Load-Leveling Rear Height Control Air Suspension. The factory TRD Skid plate will not bolt back up once the kit is installed.  ReadyLIFT’s new Toyota Tundra High-Performance CV Axle (PN: 67-52420CV) kits are recommended on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer.

Details

Toyota's newest Tundra has become a popular choice for new truck owners. And like the Tundra's before it, new 2022-2024 owners want a quality bolt-on mild lift system that will increase ground clearance and add room for larger wheels and tires, all while maintaining the great factory ride and handling. Introducing the ReadyLIFT 69-52310 3" SST Lift Kit exclusively engineered for the new 2022-2024 Toyota Tundra pickups. This new SST lift kit is a second-generation version of our popular 69-5475 3" SST lift kit for the 2021 and older models. Many of the same premium features found in that kit have migrated to the new 69-52310 kit such as our popular tubular control arms with corrected ball joint pivot angles. Fabricated steel front strut spacers 2" tall precision fabricated steel rear lift spacers with new longer U-bolts give the 2022-2024 Tundra a nice, nearly level stance with 3" of lift in front, and the kit includes new rear shock extensions so you can retain use of your factory rear shocks. The all-new 69-52310 2022-2024 Toyota Tundra 3" SST lift kit is an excellent choice for those who want to run larger tires such as 35s. The maximum tire size for use with this kit is a 35x12.5 on a 18"x9" wide wheel with +12 offset.


ReadyLIFT’s new Toyota Tundra High-Performance CV Axle (PN: 67-52420CV) kits are recommended on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer.

Tire Fitment

35" Maximum tire diameter

35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

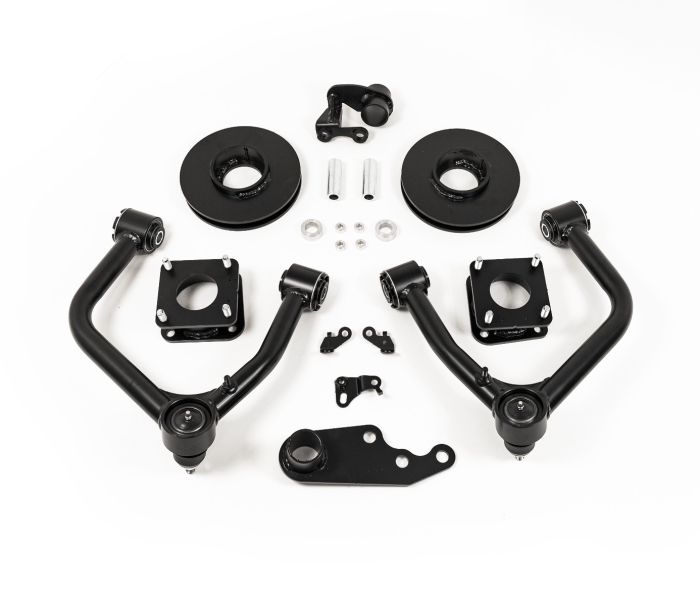

Kit Components
Front Strut Spacer, Rear Spring Spacer, Rear Shock Extension, Upper Control Arm Left Hand Side, Upper Control Arm Right-hand Side Front Differential Drop Left Hand Side, Front Differential Drop Right Hand Side, Crush Sleeve, Differential Drop Polyurethane Bushing, End Link Spacer Brake Line Relocation Bracket Left Hand Side, Brake Line Relocation Bracket Right Hand Side, Rear Brake Line Spacer, Rear Brake Line Relocation Bracket, Hardware Pack
Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 7 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
