6'' Lift Kit 2019-2024 Ram 2500 W/ Falcon Shocks And Ring And Crossmember Standard Output Diesel Motor
The 49-19610 is specifically designed for Ram Heavy Duty applications with proprietary front and rear coil springs, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, forged dropped pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube front & rear shocks that are included in this premium kit.
*Only available for the 2500 HD Standard Output Motor and the 68RFE Transmission.
Note: Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.
Special Note RAM TSB 03-003-23: Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Download TSB Info. Recommended driveline for the 68RFE Adams Drive Shaft SKU:ASDRAM-1350F-5GEN.
- California Residents: Prop 65 WARNING
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.govFeatures and Benefits:
- 6" front lift with a coil spring rear lift for the perfect lifted stance.‚
- Includes Driveline Indexing System with transfer case clocking ring and new heavy-duty transmission crossmember.‚
- Maintains factory turning radius without rubbing when using the recommended wheel and tire size.‚
- Maintains factory suspension geometry and articulation.‚
- Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 2500 HD.‚
- For use on the Ram 2500 HD Diesel engine trucks only (excludes gasoline-engine applications).‚
- Allows for up to 37x12.50 tires on 9" wide wheels with -18 offset.‚
The 49-19610 is specifically designed for Ram Heavy Duty applications with proprietary front and rear coil springs, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, forged dropped pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube front & rear shocks that are included in this premium kit.
*Only available for the 2500 HD Standard Output Motor and the 68RFE Transmission.
Note: Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.
Special Note RAM TSB 03-003-23: Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Download TSB Info. Recommended driveline for the 68RFE Adams Drive Shaft SKU:ASDRAM-1350F-5GEN.

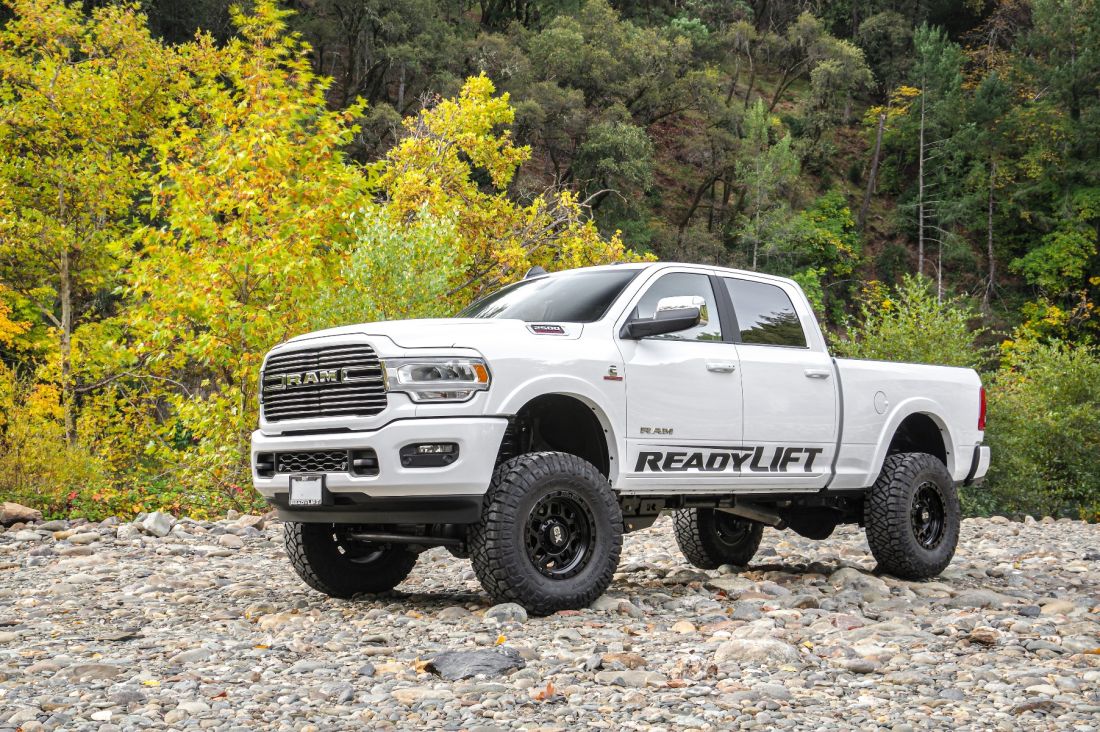

ReadyLIFT is excited to announce PN: 49-19610, an all-new 4-corner coil spring 6" lift kit with Falcon 1.1 Monotube shocks for the 2019-2024 Ram 2500 HD trucks equipped with the Standard Output Cummins turbodiesel engine providing plenty of clearance for an aggressive 37x12.5 tire and up to -18 offset wheel with no rubbing; delivering a beefy, tough look.
The 49-19610 is specifically designed for Ram Heavy Duty applications with proprietary front and rear coil springs, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, forged dropped pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube front & rear shocks that are included in this premium kit. This kit includes a unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case aligning the front output shaft for improved driveline angles. Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. ReadyLIFT 6" lift kit with the Drive Line Indexing System (DIS) addresses this condition by re-clocking [indexing] the transfer case and providing a stout heavy-duty steel cross member that accommodates the new T-case position, all resulting in a smooth driving experience on or off-road.
Maximum fitment: 37x12.50 tire
9.5-10" wheel -18 offset
Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.
Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

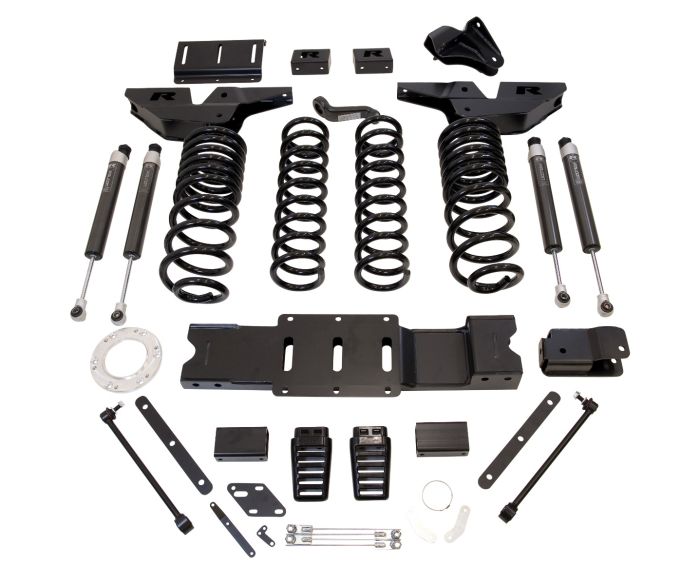

6" Front Lift Spring
4" Rear Lift Rear Coil Spring Spacers
Falcon Shock, Front
Falcon Shock, Rear
Radius Arm Drop Brackets
Radius Arm Drop Bracket Nut Plates
Front Track Bar Bracket
Rear Track Bar Bracket
Driver, Sway Bar Drop Bracket
Passenger, Sway Bar Drop Bracket
14.25" Sway Bar Endlink
5" Replacement Front Bump Stop
Rear Bump Stop Extension
Pitman Arm, Drop, Replacement
Transmission Connector Bracket
Transmission Crossmember
Transmission Harness Bracket
Transmission Mounting Plate
Transmission Mount Spacer
6-Bolt Clocking Ring
Brake line Bracket, Front
Rear Brakeline Bracket
Pinch Clamp
Hardware Pack
SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
INSTALLATION ALIGNMENT NOTE: Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.
INSTALLATION HEADLAMP AIM NOTE: In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation. You may incur additional costs to adjust the headlamp system.
INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE: If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation. In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS. You may incur additional costs to adjust ADAS systems.
Have a certified mechanic do it for you!
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.govFeatures and Benefits:
- 6" front lift with a coil spring rear lift for the perfect lifted stance.‚
- Includes Driveline Indexing System with transfer case clocking ring and new heavy-duty transmission crossmember.‚
- Maintains factory turning radius without rubbing when using the recommended wheel and tire size.‚
- Maintains factory suspension geometry and articulation.‚
- Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 2500 HD.‚
- For use on the Ram 2500 HD Diesel engine trucks only (excludes gasoline-engine applications).‚
- Allows for up to 37x12.50 tires on 9" wide wheels with -18 offset.‚
TIRE/WHEEL SIZING GUIDE
