6" Lift Kit - Dodge Ram 2500 4WD W/ Bilstein Shocks 2019-2024 With Driveline Indexing Kit

$2,399.95
In stock
SKU
49-1961

All-new 2019-2024 Ram 2500 4WD HD 6" lift kit 6-inch front/3.5-inch rear lift. Includes all-new transfer case clocking ring and new heavy-duty transmission crossmember. Includes 4 Bilstein 5100 series shocks tuned specifically for the Ram 2500 HD. For use on Diesel engine Ram 2500 4WD HD trucks only. Allows for up to 37x13.50 tires on 9.5" wide wheels with -18 offset. Does not work with Factory Air suspension or Auto Level system (factory helper bags).

Note:  Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

Special Note RAM TSB 03-003-23:  Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Download TSB Info.  Recommended driveline for the 68RFE Adams Drive Shaft SKU:ASDRAM-1350F-5GEN.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
  • The new Ram HD trucks are more popular than ever and our ReadyLIFT 6" lift kit we introduced two years ago has been an extremely popular lift option. How can we take an already great 2019-2024 Ram HD 6" lift kit and make it better? How about adding a new CNC-machined billet Aluminum transfer case clocking ring to reposition the transfer case pinion angle? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. Our new 49-1961 6" lift kit addresses that inherent driveline system issue with the addition of a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember. This Driveline Indexing System (DIS) combination works great with our ReadyLIFT 6" lift kit while re-positioning the transmission and pinion position for a smooth driving experience on or off road. Kit 49-1961 includes everything in our popular 49-1960 6" lift kit as well as these new DIS re-positioning components. Heavy duty and great riding 6" lift front springs, 3.5" lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over- compression of the new Bilstein 5100 series front/rear shocks are all included in this premium kit. For use on diesel 2500 trucks only.
  • Maximum fitment: 37x13.50 tire

    9.5-10" wheel -18 offset

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • 6" lift front springs

    3.5" lift rear coil spring spacers

    Radius arm drop brackets

    Pitman arm

    Bump stops and extensions

    Front sway bar spacers

    Rear sway bar end links

    Front track bar relocation bracket

    Transmission crossmember

    Transfer case clocking ring

    Bilstein 5100 series shocks

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 7.5 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!

  • California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

Quick Overview

All-new 2019-2024 Ram 2500 4WD HD 6" lift kit 6-inch front/3.5-inch rear lift. Includes all-new transfer case clocking ring and new heavy-duty transmission crossmember. Includes 4 Bilstein 5100 series shocks tuned specifically for the Ram 2500 HD. For use on Diesel engine Ram 2500 4WD HD trucks only. Allows for up to 37x13.50 tires on 9.5" wide wheels with -18 offset. Does not work with Factory Air suspension or Auto Level system (factory helper bags).

Note:  Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

Special Note RAM TSB 03-003-23:  Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Download TSB Info.  Recommended driveline for the 68RFE Adams Drive Shaft SKU:ASDRAM-1350F-5GEN.

Details
The new Ram HD trucks are more popular than ever and our ReadyLIFT 6" lift kit we introduced two years ago has been an extremely popular lift option. How can we take an already great 2019-2024 Ram HD 6" lift kit and make it better? How about adding a new CNC-machined billet Aluminum transfer case clocking ring to reposition the transfer case pinion angle? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. Our new 49-1961 6" lift kit addresses that inherent driveline system issue with the addition of a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember. This Driveline Indexing System (DIS) combination works great with our ReadyLIFT 6" lift kit while re-positioning the transmission and pinion position for a smooth driving experience on or off road. Kit 49-1961 includes everything in our popular 49-1960 6" lift kit as well as these new DIS re-positioning components. Heavy duty and great riding 6" lift front springs, 3.5" lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over- compression of the new Bilstein 5100 series front/rear shocks are all included in this premium kit. For use on diesel 2500 trucks only.
Tire Fitment

Maximum fitment: 37x13.50 tire

9.5-10" wheel -18 offset

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

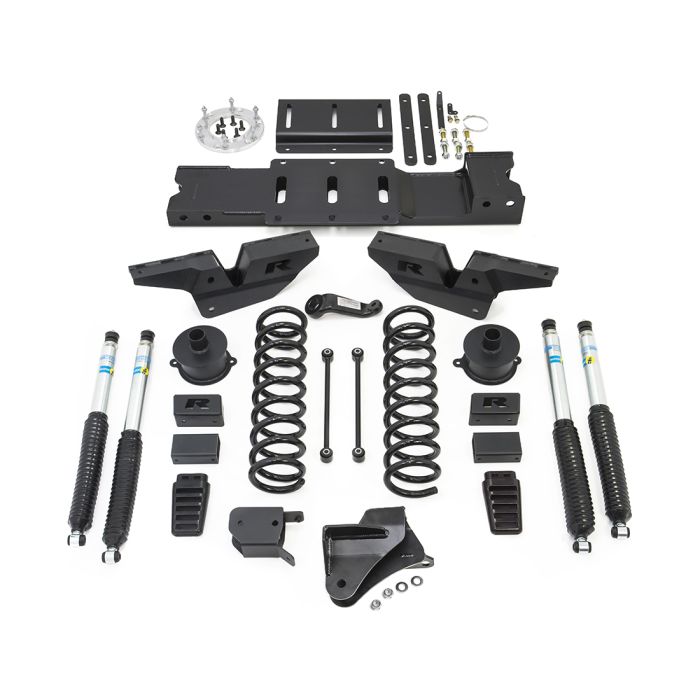

Kit Components

6" lift front springs

3.5" lift rear coil spring spacers

Radius arm drop brackets

Pitman arm

Bump stops and extensions

Front sway bar spacers

Rear sway bar end links

Front track bar relocation bracket

Transmission crossmember

Transfer case clocking ring

Bilstein 5100 series shocks

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 7.5 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!

Additional Information
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
Warning: This product can expose you to chemicals include [name of chemical], which [is/are] known to the State of California to case [cancer]/[birth defects or other reproductive harm]. For more information go to www.P65Warnings.ca.gov.
