6" Lift Kit With Falcon Shocks - Ram 1500 With Factory Air Suspension & 22" Wheels With Big Bore Knuckle - 2019-2024

$2,349.95
In stock
SKU
44-19623

6" lift kit with Big Bore Knuckles for 5th Gen Ram 1500 - 2019-2024 with factory air suspension AND with Factory 22" Wheels.

If your truck came factory with 22" wheels, this is the kit you need.

Includes Falcon 1.1 Mototube rear shocks.

Recommended max tire with no trimming: 20x9 0 offset - 37x12.50 tire.

*Max with trimming: 20x10 -18 offset - 37x12.50. Cannot use 18" wheels with this application.

Note:  Not for use with non-air ride equipped Ram trucks. Not for use with diesel applications.  Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
  • ReadyLIFT now offers a 6 inch lift kit for 2019-2024 Ram 1500 Air Ride trucks that came factory with 22 inch wheels for the 5th gen is now available. After dedicated development and long-term testing, we are now shipping our Ram 1500 Big Lift Kit for the Ram customer seeking unmatched performance, style and durability. The all-new 44-19623 6" lift kit is a great option for 5th gen Ram 1500 owners who want a great riding tall stance capable of accepting 37" tall tires. Our engineers are delighted with the development of this kit and its many great features that make it the best 6" lift kit on the market!

    The 44-19623 lift kit includes many great features like rear Falcon 1.1 Mototube shocks and rear control arm brackets which combine to better capture small bump sensitivity and mid-stroke support. Laser-cut heavy-duty steel front cross members and differential drops retain factory geometry while providing proper differential rotation to ensure there is no driveline vibration when in 4WD or Auto-4HI. This all-new Ram 1500 6" lift kit adopts all the important elements of a premium lift kit to ensure the truck rides and drives remarkably. Rear track bar bracket, Falcon 1.1 Mototube rear shocks, longer rear sway bar end links, heavy-duty cast iron knuckles, and even new thick steel skid plates are just a few of the ingredients contributing to an amazing driving experience on up to 37x12.50 tall tires on 9" wide wheels with 0 offset. (See tire details below).

    Note: This kit is for the RAM 1500 that came factory with 22" wheels with air ride. Kit requires a larger bore knuckle assembly due to larger wheel bearing assembly.

  • 44-19623 6" Big Lift Kit - Recommended max tire with no trimming:

    20x9 0 offset - 37x12.50 tire.

    *Max with trimming: 20x10 -18 offset - 37x12.50

    Note: For use on Ram 1500 with factory 22" wheels. Not for use with 18" wheels.

    *Trimming requirements for larger than recommended wheel/tire include front valance, front felt liner edge, rear felt liner edge and front rear well edge mud flap.

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • (2) crossmembers

    (2) cast iron big bore knuckles

    (4) top mount air strut extensions

    (2) Falcon 1.1 Mototube‚ shocks

    (1) rear panhard bar bracket

    (2) sway bar end links

    (1) Skid plate

    All necessary hardware and brackets.

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 12 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!

  • California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

Quick Overview

6" lift kit with Big Bore Knuckles for 5th Gen Ram 1500 - 2019-2024 with factory air suspension AND with Factory 22" Wheels.

If your truck came factory with 22" wheels, this is the kit you need.

Includes Falcon 1.1 Mototube rear shocks.

Recommended max tire with no trimming: 20x9 0 offset - 37x12.50 tire.

*Max with trimming: 20x10 -18 offset - 37x12.50. Cannot use 18" wheels with this application.

Note:  Not for use with non-air ride equipped Ram trucks. Not for use with diesel applications.  Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

Details

ReadyLIFT now offers a 6 inch lift kit for 2019-2024 Ram 1500 Air Ride trucks that came factory with 22 inch wheels for the 5th gen is now available. After dedicated development and long-term testing, we are now shipping our Ram 1500 Big Lift Kit for the Ram customer seeking unmatched performance, style and durability. The all-new 44-19623 6" lift kit is a great option for 5th gen Ram 1500 owners who want a great riding tall stance capable of accepting 37" tall tires. Our engineers are delighted with the development of this kit and its many great features that make it the best 6" lift kit on the market!

The 44-19623 lift kit includes many great features like rear Falcon 1.1 Mototube shocks and rear control arm brackets which combine to better capture small bump sensitivity and mid-stroke support. Laser-cut heavy-duty steel front cross members and differential drops retain factory geometry while providing proper differential rotation to ensure there is no driveline vibration when in 4WD or Auto-4HI. This all-new Ram 1500 6" lift kit adopts all the important elements of a premium lift kit to ensure the truck rides and drives remarkably. Rear track bar bracket, Falcon 1.1 Mototube rear shocks, longer rear sway bar end links, heavy-duty cast iron knuckles, and even new thick steel skid plates are just a few of the ingredients contributing to an amazing driving experience on up to 37x12.50 tall tires on 9" wide wheels with 0 offset. (See tire details below).

Note: This kit is for the RAM 1500 that came factory with 22" wheels with air ride. Kit requires a larger bore knuckle assembly due to larger wheel bearing assembly.

Tire Fitment

44-19623 6" Big Lift Kit - Recommended max tire with no trimming:

20x9 0 offset - 37x12.50 tire.

*Max with trimming: 20x10 -18 offset - 37x12.50

Note: For use on Ram 1500 with factory 22" wheels. Not for use with 18" wheels.

*Trimming requirements for larger than recommended wheel/tire include front valance, front felt liner edge, rear felt liner edge and front rear well edge mud flap.

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

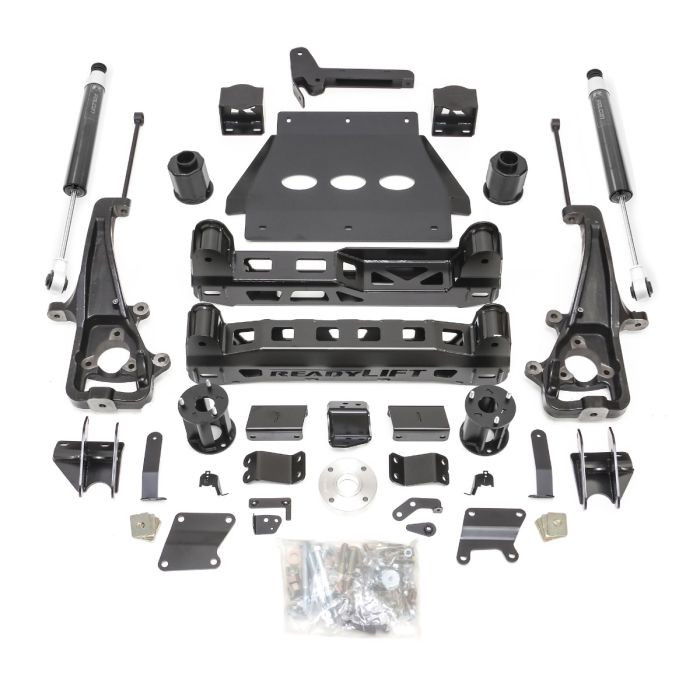

Kit Components

(2) crossmembers

(2) cast iron big bore knuckles

(4) top mount air strut extensions

(2) Falcon 1.1 Mototube‚ shocks

(1) rear panhard bar bracket

(2) sway bar end links

(1) Skid plate

All necessary hardware and brackets.

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 12 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!

Additional Information
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
