          2.5" Leveling Kit - Ford Raptor 4WD 2017-2020

          $269.95
          In stock
          SKU
          66-2755

          2017-2020 Ford Raptor 2.5" Leveling Kit CNC machined 6061 T6 billet aluminum construction Top hat coil over extensions with machined billet spring pre-load spacers Includes control arm bump stops

          Have a question? Please call 800-549-4620

          TIRE/WHEEL SIZING GUIDE

           California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
          Frequently Bought Together
          Check items to add to the cart or
          • ReadyLIFT is proud to offer an all-new billet Aluminum construction 2.5" Leveling Kit developed exclusively for the 2017-2020 Ford F-150 Raptor. This kit gives you a little more front lift than our 1.5" leveling kit version. For the newest Ford Raptor trucks, we deployed our renowned, indestructible billet coil-over spacer technology to optimize suspension articulation while retaining the factory travel specifications. The 66-2755 Raptor leveling kit has been specifically engineered to bolt right onto the factory Internal Bypass Coil-overs. The CNC machined billet construction adapts perfectly to the Raptor suspension and features a durable finish matching the factory coil-overs. 66-2755 2.5" leveling kit is constructed of tough 6061-T6 billet Aluminum and attaches to the top of the factory Fox coil overs to provide a near-level stance but with a very minor rake. We also provide a machined billet spring preload spacer that provides just a little more lift while allowing the suspension to retain the factory maximum droop and compression lengths. This kit also includes important control arm bump stops to limit over-droop while being aggressive in off-road environments. These new Raptor systems are the epitome of ReadyLIFT quality, providing a quality factory ride, awesome stance and top-quality rugged construction worthy of this new high-performance pickup.

          • 37-12.5 on the 66-2755 and 69-2755 kits with minor trimming.

            Wheel offsets: +25 up to 0 on a 20 x 9 wheel.

            The factory offset of this truck is a +34 on a 17 x 8.5" wide wheel.

            Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

            Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

          • 2 - CNC machined 6061 T6 billet aluminum construction top mount strut extensions

            2 - CNC machined billet spring pre-load spacers

            Includes control arm bump stops

          • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



            INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



            INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



            INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


            DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
            Estimated Installation Time: 4 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

            Have a certified mechanic do it for you!

          • California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov



          Quick Overview
          2017-2020 Ford Raptor 2.5" Leveling Kit CNC machined 6061 T6 billet aluminum construction Top hat coil over extensions with machined billet spring pre-load spacers Includes control arm bump stops
          Details
          ReadyLIFT is proud to offer an all-new billet Aluminum construction 2.5" Leveling Kit developed exclusively for the 2017-2020 Ford F-150 Raptor. This kit gives you a little more front lift than our 1.5" leveling kit version. For the newest Ford Raptor trucks, we deployed our renowned, indestructible billet coil-over spacer technology to optimize suspension articulation while retaining the factory travel specifications. The 66-2755 Raptor leveling kit has been specifically engineered to bolt right onto the factory Internal Bypass Coil-overs. The CNC machined billet construction adapts perfectly to the Raptor suspension and features a durable finish matching the factory coil-overs. 66-2755 2.5" leveling kit is constructed of tough 6061-T6 billet Aluminum and attaches to the top of the factory Fox coil overs to provide a near-level stance but with a very minor rake. We also provide a machined billet spring preload spacer that provides just a little more lift while allowing the suspension to retain the factory maximum droop and compression lengths. This kit also includes important control arm bump stops to limit over-droop while being aggressive in off-road environments. These new Raptor systems are the epitome of ReadyLIFT quality, providing a quality factory ride, awesome stance and top-quality rugged construction worthy of this new high-performance pickup.
          Tire Fitment

          37-12.5 on the 66-2755 and 69-2755 kits with minor trimming.

          Wheel offsets: +25 up to 0 on a 20 x 9 wheel.

          The factory offset of this truck is a +34 on a 17 x 8.5" wide wheel.

          Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

          Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

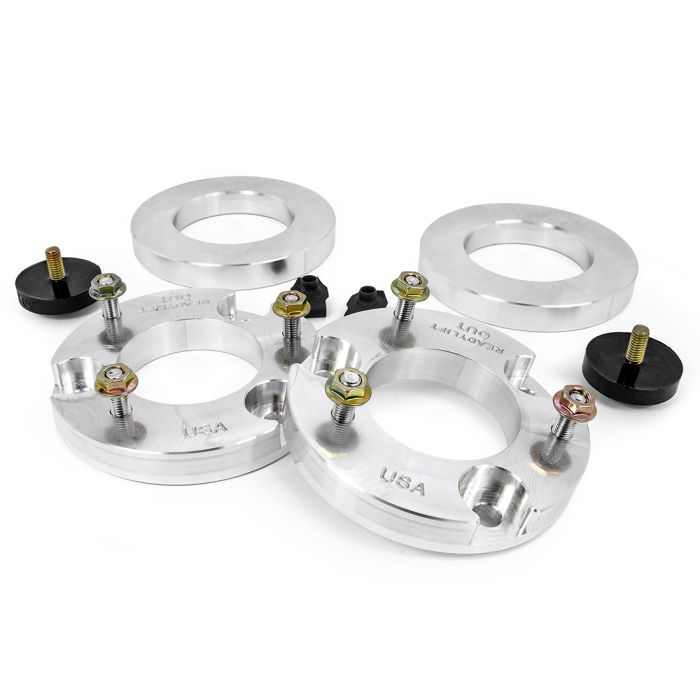

          Kit Components

          2 - CNC machined 6061 T6 billet aluminum construction top mount strut extensions

          2 - CNC machined billet spring pre-load spacers

          Includes control arm bump stops

          Installation

          SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



          INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



          INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



          INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



          DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
          Estimated Installation Time: 4 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

          Have a certified mechanic do it for you!

          Additional Information
          California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
