2" Front Leveling Kit With Diff Drops- Toyota Tundra 2022-2026 And 2023-2025 Sequoia (part number 66-52201).

ReadyLIFT leveling kits are the fastest, safest, most cost-effective way to bring the front of your vehicle level with the rear for that ideal lifted neutral stance. Our front strut assembly eliminates the hassle, time, and concern of compressing springs. A ReadyLIFT leveling kit will maintain a smooth OEM ride without adding stress to stock suspension components!

The part number 66-52201 2022-2026 Toyota Tundra and 2023-2026 Sequoia Leveling Kit is an excellent choice for those who want a level stance while running larger tires up to 34 inches. The no-trim maximum tire size for this kit is a 295-60R20 with a 20" X 9" wheel and +18 offset. Drops front differential to provide better maximum operating angle for CV joints Polyurethane bushings prevent differential movement under load 100% Bolt-on with no cutting or welding CNC laser cut steel brackets

2022-2026 Toyota Tundra and 2023-2026 Sequoia Leveling Kit is an excellent choice for those who want a level stance while running larger tires up to 34 inches. 2" Leveling Kit - Maximum tire diameter: 34" No-trim maximum tire size for this kit is a 295-60R20 with a 20" X 9" wheel and +18 offset. Fabricated steel front strut spacers with durable black powder coat finish

Fitment and Installation Notes

• Not for use on Tundra equipped factory rear air, or TRD PRO. To make the TRD Pro skid plate work with this application, you will need the Skid Plate Drop Kit (PN: 67-52050). ReadyLIFT's new Toyota Tundra High-Performance CV Axle (PN: 67-52420CV) kits are recommended on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer.

Additional Product Details

Features and Benefits:

• 2" Leveling Kit - Max Tire Diameter 34"
• Fabricated steel front strut spacers with durable black powder coat finish

295-60R20 with a 20" x 9" wheel and +18 offset

33" Maximum tire diameter

35" on positive offset wheel with trimming.

33x12.50 for no rub on a 9" wide wheel with +25 offset

17" - 33X12.5R17

18" - 305/65R18

20" - 305/55R20 - 33X12.5R20

22" - 33X12.5R22

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

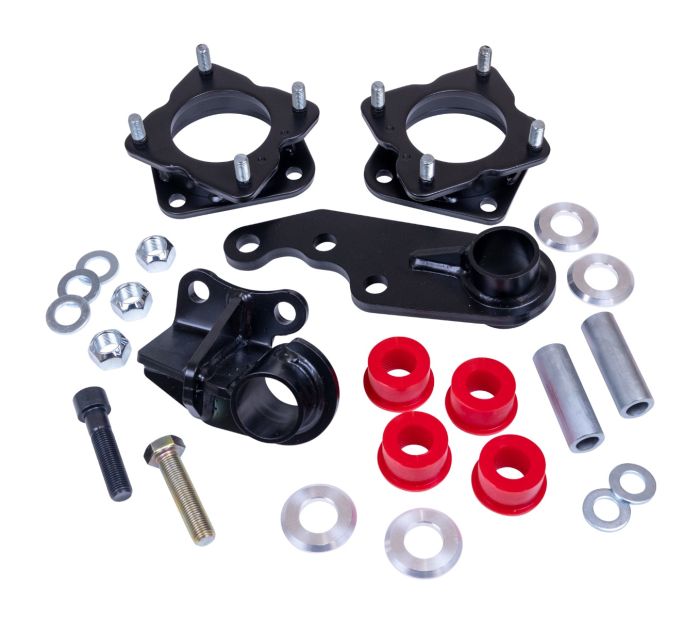

Front Strut Spacer

Front Differential Drop - Left Hand Side (Driver)

Front Differential Drop - Right Hand Side (Pass)

0.87" OD x 0.56" ID x 2.65" Crush Sleeve

1.52" OD x 0.85" ID Polyurethane Bushing

Hardware Pack
