2" Lift Kit - Ford Super Duty F250/F350 Excursion 4WD 1999-2004
ReadyLIFT offers an expanded line of leveling products made to fit the Ford Super Duty trucks. Due to popular demand we developed a SST Lift Kit for the 1999-2004 Ford F250 Super Duty 4WD trucks and 2000-2005 Ford Excursion 4WD. (Note: for use on 1999 model F250 trucks built after 3/1/1999 - not for use on trucks built before 3/1/99). These front leaf spring trucks require an innovative approach to leveling-lifting. ReadyLIFT is proud to offer a new SST Lift Kit system that will compliment the leaf spring suspension. This system includes a "mini leaf pack" that, once installed under the factory leaf spring pack, raises the front of the F250 4WD Super Duty trucks a total of 2.0" which is what is required to obtain a level stance. To lift the rear, our time-tested OEM-style 4.0" cast iron rear blocks with built-in pinion angle correction and bump stop landings replace the factory 2.0" block for additional lift of 2.0". This kit also includes a carrier bearing spacer which is intended for use on trucks with a two-piece drive shaft. This set up establishes a mild lift with a slight rake maintained for towing or hauling. The kit comes with new longer front and rear U-bolts and hardware as well as important pan-hard bar alignment bushings. This kit will allow for up to 35" tall tires.
If you are looking for a leveling kit for your (post 3/1/99) '99-04 F250 then look no further. This is the kit you've been searching for. Fits trucks fit with either the gas or diesel engine applications.
NOTE: For trucks with a two-piece drive shaft.
NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.
35" Maximum tire diameter
35x12.50 for no rub on a 9" wide wheel with 0 offset
18" - 315/70R18
20" - 295/65R20 / 325/60R20
22" - 35X12.5R22

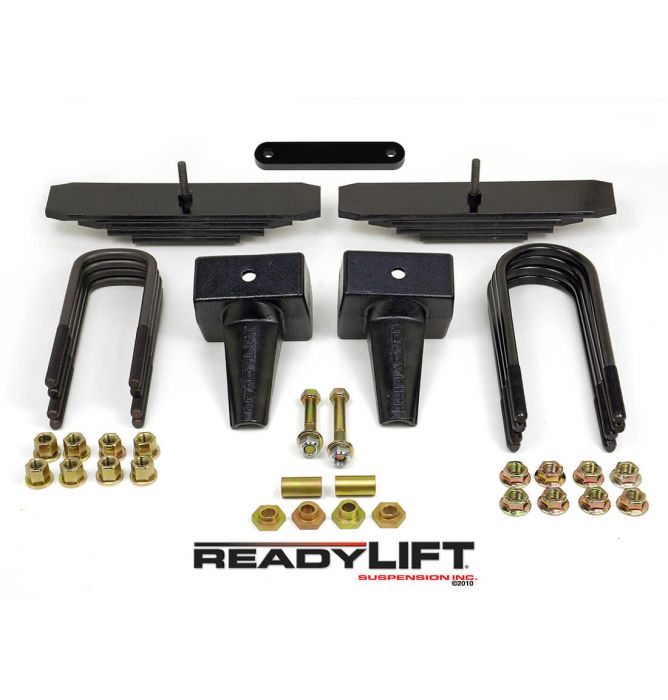

Mini leaf spring packs for the front.
OEM style cast iron rear lift blocks.
Panhard bar alignment bushings.
All necessary hardware.
Write Your Own Review
Do it yourself!
Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.Download Pdf InstructionsEstimated Installation Time: 4.8 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)
Have a certified mechanic do it for you!
