2019-2026 Ram 2500 Diesel 4WD 3" SST2.1 Coil Spring Lift Kit (part number 63-19340).

The new SST2.1 system pairs front monotube struts with rear adjustable piggyback shocks. The easy-to-use 3-position Fast-Adjust settings include Sport/daily, Moderate Tow/Haul, and Heavy Tow/Haul. Falcon Performance Shocks improve performance and comfort regardless of the terrain. The versatility of these systems makes them ideal for daily driving, off-road excursions, and tow/haul duties. Kit Features and Benefits: Front Coil Spring 3" Lift suspension Rear steel lift spacers Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all four corners Improved dynamic roll control and low-speed damping

Dramatic improvement in on-road comfort and off-road performance Optimized fitment for unobstructed suspension travel and articulation 6061-T6 Aluminum alloy shock body resists Impact to protect internal component. Smooth-honed internal shock body surface for long-term performance 3/4" induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling Large shaft diameter provides a wide range of adjustments on adjustable shocks Hard anodized 6061-T6 Aluminum alloy billet piston 1-piece Teflon bronze piston wear band with O-ring Maximum tire diameter: 35 in. 2019-2026 Ram 2500 Standard Output Diesel Motor only

Front Coil Spring 3" Lift/Leveling Suspension Max Lift 3 in - Maximum tire diameter: 35 in. 2019-2026 Ram 2500 Falcon shock absorber systems are tuned for comfort with predictive handling, control, and stability on-road and offroad. Rear adjustable 3-position Falcon 2.1 shocks tune for daily, sport, or work duties. Vehicle-specific performance-tuned Falcon 2.1 dampers on all four corners. Rear Spacers

Fitment and Installation Notes

• Diesel Motor Ram HD's only.
• Not compatible with Power Wagon or Snow Prep/Ambulance Package. Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT. Does not work with Factory Air suspension or Auto Level system (factory helper bags).
• ReadyLIFT offers an 3" SST2.1 Suspension System with Falcon 2.1 shocks for the 2019-2026 Ram 2500 HD trucks equipped with the Standard Output Cummins turbodiesel engine providing plenty of clearance for an aggressive 35x12.5 tire and up to 0 offset wheel with no rubbing; delivering a beefy, rugged look all while improving the factory ride quality.
• Ram 2500 Standard Output Diesel Motor only. Not compatible with Power Wagon or Snow Prep/Ambulance Package. Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT. Does not work with Factory Air suspension or Auto Level system (factory helper bags).

35" Maximum tire diameter

35x12.50 for no rub on a 20" x 9" wide wheel with 0 offset

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

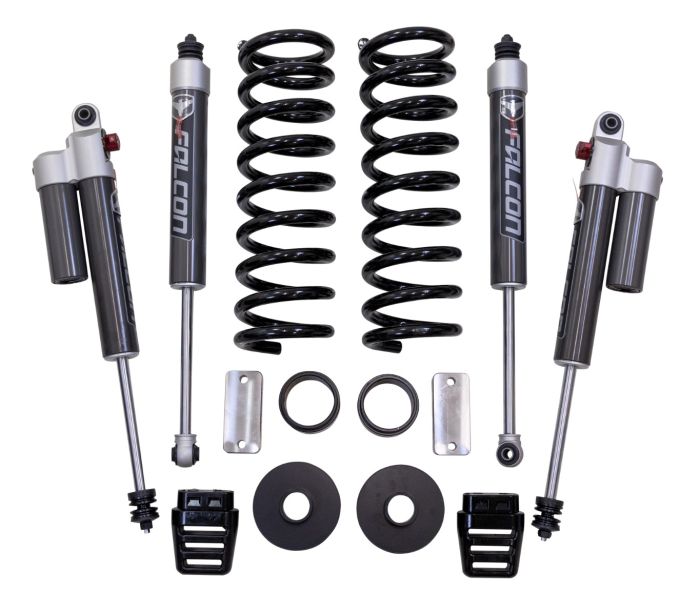

Front Leveling Springs

Front 2.1 Falcon Shocks

Rear 2.1 Falcon Shocks

Rear Spacers

Bump Stops Extensions
