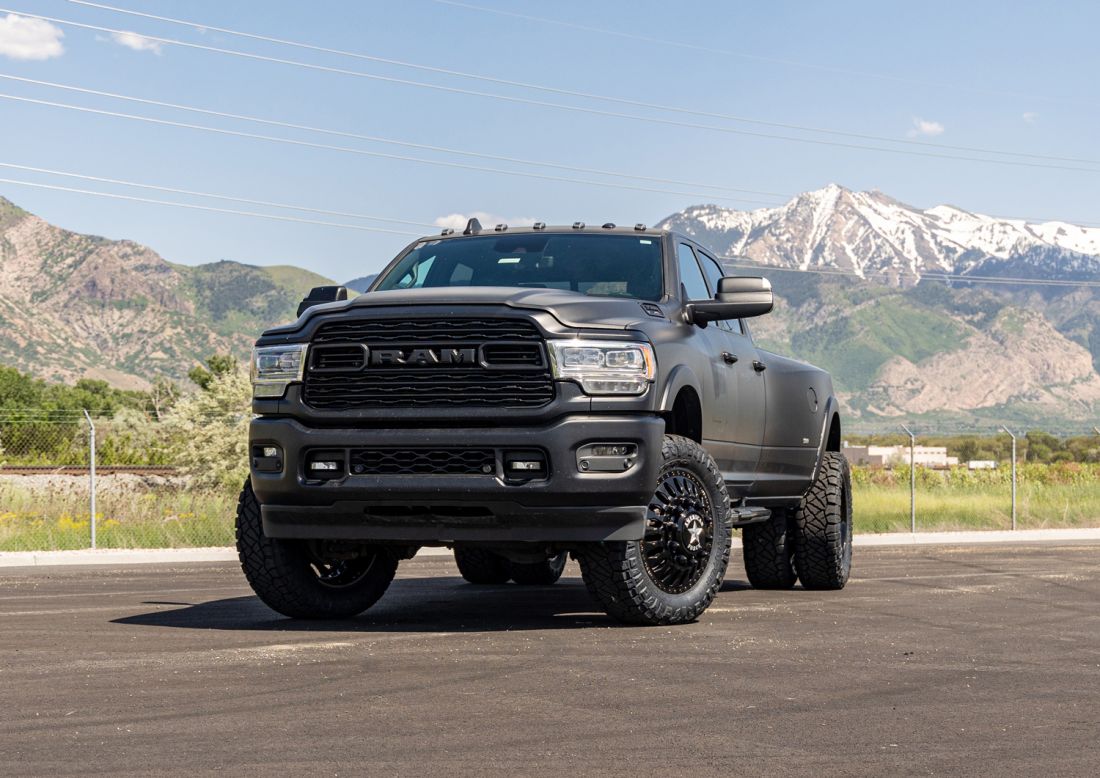

2019-2026 Ram 3500 Dually Diesel 3" Coil Spring with 2.1 Falcons Lift Kit (part number 49-19333).

Lift and level out your RAM 3500 dually diesel-powered truck with ReadyLIFT's new 3-inch lift kit. ReadyLIFT's kit provides plenty of clearance for larger aggressive tires and wheels delivering a muscular, tough look, all while improving the factory ride quality while clearing up to 35x12.50 tires. The new Ram HD 3" Coil Spring Lift Kit is specifically designed for Heavy-Duty applications utilizing ReadyLIFT-engineered new front coil springs and Falcon 2.1 Monotube front & rear shocks.

The 3500 dually kit includes rear blocks and U-bolts to achieve a neutral, lifted stance. Front Coil Spring 3" Lift Suspension. Max Lift 3 in - Maximum tire diameter: 35 in. For 2019-2025 Ram 3500 Dually. 4-Corner Falcon 2.1 Monotube Shocks. Wheel Fitment 20x8.5 -145/+145 Offset.

Fitment and Installation Notes

• Diesel Motor Ram 3500 Dually HD's only.
• Trucks equipped with rear air require additional spacers PN: 26-19332. Not compatible with Power Wagon, single cab trucks, or Snow Prep/Ambulance Package. 37" tires will require trimming.
• Ram 3500 dually trucks equipped with rear air require the new air spacer part number 26-19332.

Additional Product Details

• Falcon 2.1 Monotube Shocks deliver increased stability, improved ride quality, and enhanced comfort in a compact, high-value performance package.
• Optimized for on-road driving, Falcon 2.1 shocks provide increased stability over stock while maintaining confident performance both on and off the road.
• Vehicle-specific damping makes Falcon 2.1 shocks ideal for daily-driven trucks and SUVs, as well as enthusiasts looking for a consistent, controlled feel across a variety of driving conditions.
• Race-inspired technology delivers improved handling, stability, and chassis control for lifted trucks, SUVs, and off-road vehicles.

• Large 2.3-inch shock body for increased oil capacity, improved heat dissipation, and consistent damping performance
• 6061-T6 aluminum-alloy billet piston
• Heavy-duty 3/4-inch induction-hardened, chrome-plated shaft designed to resist rock damage, corrosion, and shaft buckling
• Microcellular foam progressive bump stops*

*Bump-stop configuration varies depending on shock absorber collapsed length, tire size, and fender clearance.

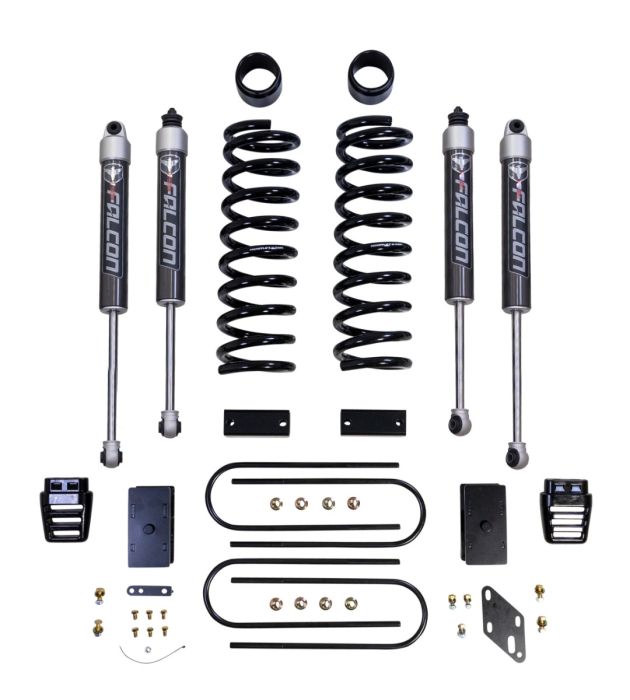

3" Front Lift Springs

3" Rear Block kit w/ U-bolts

3" Rear Bump Stop Extension

Front 2.1 Falcon Shocks

Rear 2.1 Falcon Shocks

3" Front Bump Stop

Hardware Pack

Tire Size 35x12.50 on 20" x 8.25" wide wheel with -145/+145 offset

37" Maximum Tire Size with Trimming

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.
