3.5" SST 2.1 Series Lift Kit- Colorado/Canyon 2015-2022

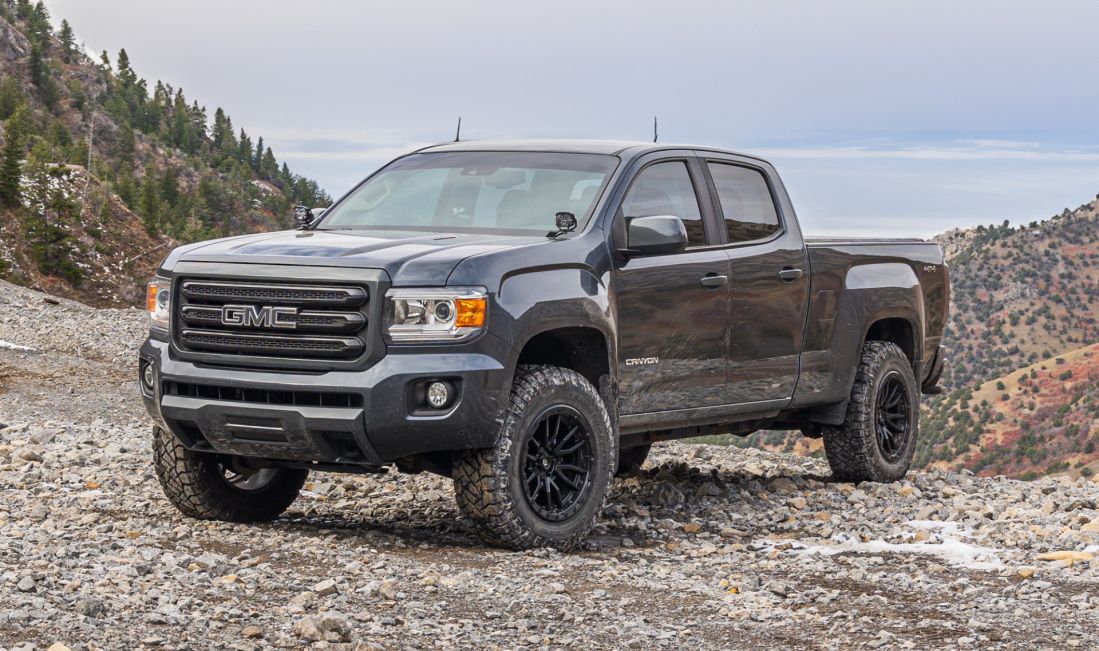

ReadyLIFT now offers a new premium 3.5" SST2.1 series lift kit for the 2015-2022 Chevy Colorado and GMC Canyon 2WD/4WD trucks! The 62-35340 SST Lift Kit provides a great lift solution to achieve a mild yet aggressive lifted stance while still maintaining important factory ride and handling characteristics. This kit incorporates our all-new Falcon 2.1 series front replacement strut and rear shock system that not only delivers an incredible ride quality but also opens the wheel wells up to increased wheel and tire sizes with the 3.5” front and a 1” rear lift over the stock ride height. To complement the advanced Falcon strut/shock architecture, our engineers also developed upgraded DOM tube steel upper control arms with corrected ball joint angles for greater strength and articulation. The improved lift kit allows for up to a 285/70-17 tire for that lifted aggressive stance.

Features and Benefits:

- The perfect mild lift solution for Gen 2 Colorado/Canyons that provides a great-looking aggressive stance with a slight rake.

- “High-Value Performance” is the driving force behind our new vehicle-specific Falcon shocks.

- Falcon shock absorber systems are tuned for comfort with predictive handling, control, and stability on the road and through the canyons as well as controlled steering during off-road driving on washboard roads, through whoops, and over rocks.

- Includes tubular steel upper control arms with adjusted ball joint pivot angles housing a heavy-duty ball joint

- Allows for up to a 32.5x11.50" tire on up to +18 offset wheels. (285/70-17)

- Unmatched curb-appeal and rugged mid-size truck capability delivered in an affordable yet innovative Smart Suspension Technology "no-cut" lift kit.

- Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all four corners.

     - Improved dynamic roll control and low-speed damping.

     - Dramatic improvement in on-road comfort and off-road performance.

     - Optimized fitment for unobstructed suspension travel and articulation.

     - 6061-T6 aluminum alloy shock body resists Impact to protect internal components.

     - Smooth-honed internal shock body surface for long-term performance.

     - 3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling.

     - Large shaft diameter provides a wide range of adjustments on adjustable shocks.

     - Hard anodized 6061-T6 aluminum alloy billet piston.

     - 1-piece Teflon bronze piston wear band w/ O-ring.

NOTE: Use of Auto 4 Hi feature not recommended.  Excludes ZR2 Edition applications.

Allows for up to 17x9 +18 wheel - 285/70R17 tire

285/60-20 max with trimming.

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

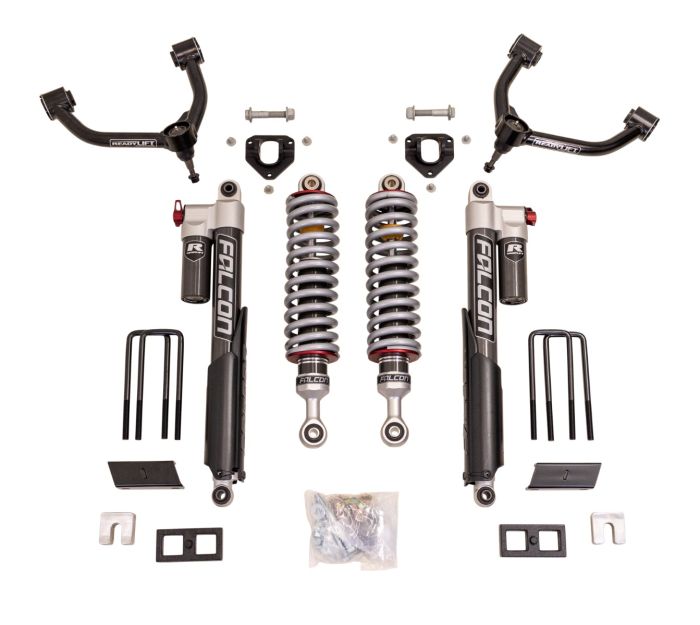

Colorado/Canyon Falcon 2.2 Coilover, Front, Kit

Colorado/Canyon Falcon 2.2 Coilover, Rear, Kit

2x DIFF. DROP SPACERS

2x DIFF DROP RETAINER PLATE

Upper Control Arm 3.5" Left Assembly

Upper Control Arm 3.5" Right Assembly

DRIVER FRONT SWAY BAR DROP

PASSENGER FRONT SWAY BAR DROP

2x LASER CUT WASHER

1"  Block Kit

HARDWARE PACK for 62-35340
