3.5" SST Lift Kit - Ford Super Duty F250/F350/F450 4WD (1-pc Drive Shaft Only) 2011-2016

$799.95
Out of stock
SKU
69-2538

Max Lift: 3.5"F/1.0"-3.0"R - Max Tire: 37".

2011-2016 Ford F-250/F-350/F-450 4WD.

For use with trucks with one-piece drive shaft.

This product ships in 7-10 business days.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
  • ReadyLIFT Suspension has engineered a 3.5"lift kit made to fit the 2011-16 Ford F250/F350/F450 SuperDuty 4WD trucks with a two-piece drive shaft that allows wheel and tire combinations up to 37" while keeping the smooth OEM ride and drivability. This is a complete lift kit including 5" OEM equivalent rear blocks with integrated bump stop landings, 3.5" coil spring extensions with sound isolators, an OEM-style panhard drop bracket, front bump stops, carrier bearing spacer, OEM shock extension brackets, a pair of radius arm drop brackets, and all needed hardware. When used with the maximum size tires, the F250 truck body is raised over 6".

    ReadyLIFT's 3.5" SST Fixed Lift Kit System for the 2011-16 Ford F250/F350 4WD Super Duty trucks is a safe, easy way to lift your Super Duty while maintaining your factory ride. Why spend thousands of dollars for an elaborate mega-lift kit that takes extensive time to install while destroying your ride when you can save money and get a great lift height that rides great and looks awesome! ReadyLIFT Smart Suspension Technology is used to make this kit very user friendly to install, requiring no cutting or drilling. Like all other ReadyLIFT kits, the F250/F350 3.5" SST Lift Kit is guaranteed for life against manufacturing defects.

    NOTE: For use with trucks with a one-piece drive shaft.

    NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.

  • 37" Maximum tire diameter

    37x12.50 for no rub on a 9" wide wheel with 0 offset

    18" - 37X12.5R18

    20" - 37X12.5R20

    22" - 325/60R22

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • Two coil spring spacers with poly sound isolators

    Two front shock extensions.

    Radius arm drop brackets.

    Two front sway bar mount spacers.

    One front track bar relocation bracket

    Two OEM style cast rear lift blocks with longer u-bolts and hardware.

    Two bump stop extensions.

    Extended length front brake line brackets.

  • Do it yourself!

    Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.

    Download Pdf Instructions
    Estimated Installation Time: 6 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!

  • California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

Quick Overview

Max Lift: 3.5"F/1.0"-3.0"R - Max Tire: 37".

2011-2016 Ford F-250/F-350/F-450 4WD.

For use with trucks with one-piece drive shaft.

Details

ReadyLIFT Suspension has engineered a 3.5"lift kit made to fit the 2011-16 Ford F250/F350/F450 SuperDuty 4WD trucks with a two-piece drive shaft that allows wheel and tire combinations up to 37" while keeping the smooth OEM ride and drivability. This is a complete lift kit including 5" OEM equivalent rear blocks with integrated bump stop landings, 3.5" coil spring extensions with sound isolators, an OEM-style panhard drop bracket, front bump stops, carrier bearing spacer, OEM shock extension brackets, a pair of radius arm drop brackets, and all needed hardware. When used with the maximum size tires, the F250 truck body is raised over 6".

ReadyLIFT's 3.5" SST Fixed Lift Kit System for the 2011-16 Ford F250/F350 4WD Super Duty trucks is a safe, easy way to lift your Super Duty while maintaining your factory ride. Why spend thousands of dollars for an elaborate mega-lift kit that takes extensive time to install while destroying your ride when you can save money and get a great lift height that rides great and looks awesome! ReadyLIFT Smart Suspension Technology is used to make this kit very user friendly to install, requiring no cutting or drilling. Like all other ReadyLIFT kits, the F250/F350 3.5" SST Lift Kit is guaranteed for life against manufacturing defects.

NOTE: For use with trucks with a one-piece drive shaft.

NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.

Tire Fitment

37" Maximum tire diameter

37x12.50 for no rub on a 9" wide wheel with 0 offset

18" - 37X12.5R18

20" - 37X12.5R20

22" - 325/60R22

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

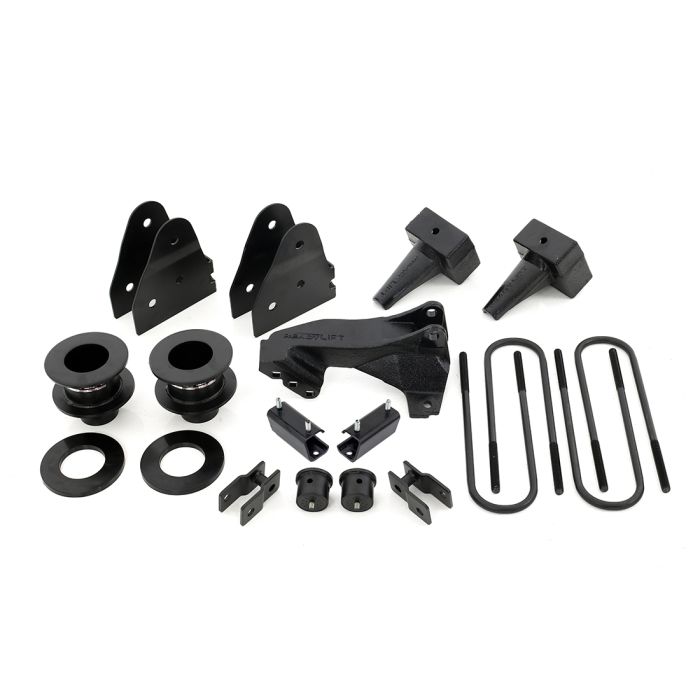

Kit Components

Two coil spring spacers with poly sound isolators

Two front shock extensions.

Radius arm drop brackets.

Two front sway bar mount spacers.

One front track bar relocation bracket

Two OEM style cast rear lift blocks with longer u-bolts and hardware.

Two bump stop extensions.

Extended length front brake line brackets.

Installation


Do it yourself!

Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.

Download Pdf Instructions
Estimated Installation Time: 6 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
