3" SST Lift Kit - Toyota Tacoma 2024

$1,199.95
In stock
SKU
69-54300

The all-new 69-54300 2024 Toyota Tacoma 3” SST lift kit is an excellent choice for those who want to run larger tires. The maximum size for use with this kit (without trimming) is a 285/75R17 on an 8” wide and +35 offset wheel.


Features and Benefits:

- Bolt-on installation – no modifications required.

- 3” front lift with a 2” rear coil spring spacers.

- Allows for up to 285/75R17 on an 8" wide and +35 offset

- Allows for up to 295/55R20 on an 8.5" wide and +35 offset

- Allows for 315/70R17 with minor trimming

- Allows for 35x12.50 R17 with minor trimming

- Includes strong tubular steel Upper Control Arms with market best heavy duty high angle proprietary ball joint.


*Note:  Kit does not fit Tacoma’s equipped with rear leaf springs, TRD PRO, and Trail Hunter. ReadyLIFT has not tested or confirmed fitment on the optional sway bar disconnect.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

  • Toyota’s newest Tacoma has become a popular choice for new truck owners. As it was with the previous generation, many of the new 2024 Tacoma owners are asking for a quality bolt-on lift system that increases ground clearance and adds room for larger wheels and tires, all while maintaining the great factory ride and handling. Once again ReadyLIFT has delivered!



    The ReadyLIFT 69-54300 3” SST Lift Kit is exclusively engineered for the new 2024 Toyota Tacoma pickups equipped from the factory with rear coil springs. This new SST lift kit is a unique, second-generation version of our popular 3” SST lift kit for the previous model. Many of the same premium features found in that timeless Tacoma kit have migrated to the new 69-54300 lift kit, such as an updated version of our popular tubular upper control arms with corrected ball joint pivot angles. All-new billet aluminum front strut spacers and fabricated heavy-duty steel rear coil spring spacers give the 2024 Tacoma a nice, nearly level stance with 3” of lift. Rear shock extensions allow for the use of factory rear shocks. Precision-engineered differential drop components correct the critical CV angles and allow for over 3” of down travel; this keeps your tires on the ground while you’re out on the trail.



    The all-new 69-54300 2024 Toyota Tacoma 3” SST lift kit is an excellent choice for those who want to run larger tires. The maximum size for use with this kit (without trimming) is a 285/75R17 on an 8” wide and +35 offset wheel.



    Features and Benefits:

    - Bolt-on installation – no modifications required.

    - 3” front lift with a 2” rear coil spring spacers.

    - Allows for up to 285/75R17 on an 8" wide and +35 offset

    - Allows for up to 295/55R20 on an 8.5" wide and +35 offset

    - Allows for 315/70R17 with minor trimming

    - Allows for 35x12.50 R17 with minor trimming

    - Includes strong tubular steel Upper Control Arms with market best heavy duty high angle proprietary ball joint.


    *Note:  Kit does not fit Tacoma’s equipped with rear leaf springs.

  • Wheel Tire  Note

    Stock (17x7 +60)  285/70R17  No Trim (Widest tire you can put on, Knuckle clearance)

    17x8 +35  285/70R17  No Trim

    17x8 +35  285/75R17  No Trim

    17x8.5 +47  285/70R17  No Trim

    17x8.5 +47  285/75R17  No Trim

    17x8.5 +25  285/70R17  No Trim

    17x9 +1  285/70R17  May require trimming. (4mm clearance)


    Tire Size Comparison:

    18x8 +35  285/65R18  No Trim

    18x8 +35  285/70R18  No Trim

    18x8.5 +47  285/65R18  No Trim

    18x8.5 +47  285/70R18  No Trim

    18x8.5 +25  285/65R18  No Trim

    18x9 +1 285/65R18  May require trimming. (4mm clearance)


    20x8.5 +35  295/55R20  No Trim

    20x9 +18  295/55R20  No Trim

    20x9 +1   295/55R20  May require trimming. (4mm clearance)


    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • HARDENED STEEL WASHER QTY 2

    24 TACOMA DIFF REAR SPACER QTY 1

    24 TACOMA DIFF FRONT SPACER QTY 4

    24 TACOMA 3/8" LASER CUT WASHER QTY 1

    24 TACOMA REAR BRAKE LINE BRACKET QTY 1

    24 TACOMA DDC 1/8" LASER CUT WASHER QTY 1

    24 TACOMA FRT DIFF DROP, CTR SLEEVE QTY 1

    24 TACOMA FRT DIFF DROP, CTR BUSH QTY 2

    24 TACOMA FRT DIFF DROP, CENTER QTY 1

    0.87" OD X 0.56 ID X 2.65"L CRUSH SLEEVE QTY 2

    1.52" OD X 0.85"ID POLYURETHANE BUSHING QTY 4

    24 TACOMA FRT DIFF DROP, RH QTY 1

    24 TACOMA FRT DIFF DROP, LH QTY 1

    24 TACOMA RR BUMP STOP EXT, LH QTY 1

    24 TACOMA RR BUMP STOP EXT, RH QTY 1

    24 TACOMA RR SWAYBAR BRACKET QTY 2

    24 TACOMA FR PRELOAD SPCR QTY 2

    24 TACOMA RR SHOCK EXT CRUSH SLV QTY 2

    23 TACOMA FRT UCA ASSY, LH QTY 1

    24 TACOMA FRT UCA ASSY, RH QTY 1

    24 TACOMA RR SHOCK EXT, RH QTY 1

    24 TACOMA RR SHOCK EXT, LH QTY 1

    24 TACOMA RR SPRG SPCR 2IN QTY 2

    24 TACOMA FRT STRUT SPACER QTY 2

    HARDWARE PACK FOR 69-54300 QTY 1

  • SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 4 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!


Quick Overview

The all-new 69-54300 2024 Toyota Tacoma 3” SST lift kit is an excellent choice for those who want to run larger tires. The maximum size for use with this kit (without trimming) is a 285/75R17 on an 8” wide and +35 offset wheel.


Features and Benefits:

- Bolt-on installation – no modifications required.

- 3” front lift with a 2” rear coil spring spacers.

- Allows for up to 285/75R17 on an 8" wide and +35 offset

- Allows for up to 295/55R20 on an 8.5" wide and +35 offset

- Allows for 315/70R17 with minor trimming

- Allows for 35x12.50 R17 with minor trimming

- Includes strong tubular steel Upper Control Arms with market best heavy duty high angle proprietary ball joint.


*Note:  Kit does not fit Tacoma’s equipped with rear leaf springs, TRD PRO, and Trail Hunter. ReadyLIFT has not tested or confirmed fitment on the optional sway bar disconnect.

Details

Toyota’s newest Tacoma has become a popular choice for new truck owners. As it was with the previous generation, many of the new 2024 Tacoma owners are asking for a quality bolt-on lift system that increases ground clearance and adds room for larger wheels and tires, all while maintaining the great factory ride and handling. Once again ReadyLIFT has delivered!



The ReadyLIFT 69-54300 3” SST Lift Kit is exclusively engineered for the new 2024 Toyota Tacoma pickups equipped from the factory with rear coil springs. This new SST lift kit is a unique, second-generation version of our popular 3” SST lift kit for the previous model. Many of the same premium features found in that timeless Tacoma kit have migrated to the new 69-54300 lift kit, such as an updated version of our popular tubular upper control arms with corrected ball joint pivot angles. All-new billet aluminum front strut spacers and fabricated heavy-duty steel rear coil spring spacers give the 2024 Tacoma a nice, nearly level stance with 3” of lift. Rear shock extensions allow for the use of factory rear shocks. Precision-engineered differential drop components correct the critical CV angles and allow for over 3” of down travel; this keeps your tires on the ground while you’re out on the trail.



The all-new 69-54300 2024 Toyota Tacoma 3” SST lift kit is an excellent choice for those who want to run larger tires. The maximum size for use with this kit (without trimming) is a 285/75R17 on an 8” wide and +35 offset wheel.



Features and Benefits:

- Bolt-on installation – no modifications required.

- 3” front lift with a 2” rear coil spring spacers.

- Allows for up to 285/75R17 on an 8" wide and +35 offset

- Allows for up to 295/55R20 on an 8.5" wide and +35 offset

- Allows for 315/70R17 with minor trimming

- Allows for 35x12.50 R17 with minor trimming

- Includes strong tubular steel Upper Control Arms with market best heavy duty high angle proprietary ball joint.


*Note:  Kit does not fit Tacoma’s equipped with rear leaf springs.

Tire Fitment

Wheel Tire  Note

Stock (17x7 +60)  285/70R17  No Trim (Widest tire you can put on, Knuckle clearance)

17x8 +35  285/70R17  No Trim

17x8 +35  285/75R17  No Trim

17x8.5 +47  285/70R17  No Trim

17x8.5 +47  285/75R17  No Trim

17x8.5 +25  285/70R17  No Trim

17x9 +1  285/70R17  May require trimming. (4mm clearance)


Tire Size Comparison:

18x8 +35  285/65R18  No Trim

18x8 +35  285/70R18  No Trim

18x8.5 +47  285/65R18  No Trim

18x8.5 +47  285/70R18  No Trim

18x8.5 +25  285/65R18  No Trim

18x9 +1 285/65R18  May require trimming. (4mm clearance)


20x8.5 +35  295/55R20  No Trim

20x9 +18  295/55R20  No Trim

20x9 +1   295/55R20  May require trimming. (4mm clearance)


Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

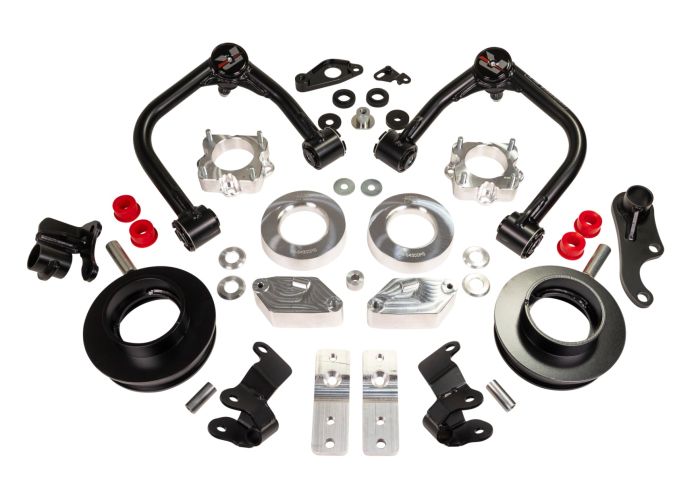

Kit Components

HARDENED STEEL WASHER QTY 2

24 TACOMA DIFF REAR SPACER QTY 1

24 TACOMA DIFF FRONT SPACER QTY 4

24 TACOMA 3/8" LASER CUT WASHER QTY 1

24 TACOMA REAR BRAKE LINE BRACKET QTY 1

24 TACOMA DDC 1/8" LASER CUT WASHER QTY 1

24 TACOMA FRT DIFF DROP, CTR SLEEVE QTY 1

24 TACOMA FRT DIFF DROP, CTR BUSH QTY 2

24 TACOMA FRT DIFF DROP, CENTER QTY 1

0.87" OD X 0.56 ID X 2.65"L CRUSH SLEEVE QTY 2

1.52" OD X 0.85"ID POLYURETHANE BUSHING QTY 4

24 TACOMA FRT DIFF DROP, RH QTY 1

24 TACOMA FRT DIFF DROP, LH QTY 1

24 TACOMA RR BUMP STOP EXT, LH QTY 1

24 TACOMA RR BUMP STOP EXT, RH QTY 1

24 TACOMA RR SWAYBAR BRACKET QTY 2

24 TACOMA FR PRELOAD SPCR QTY 2

24 TACOMA RR SHOCK EXT CRUSH SLV QTY 2

23 TACOMA FRT UCA ASSY, LH QTY 1

24 TACOMA FRT UCA ASSY, RH QTY 1

24 TACOMA RR SHOCK EXT, RH QTY 1

24 TACOMA RR SHOCK EXT, LH QTY 1

24 TACOMA RR SPRG SPCR 2IN QTY 2

24 TACOMA FRT STRUT SPACER QTY 2

HARDWARE PACK FOR 69-54300 QTY 1

Installation
SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 4 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
