5'' Rear Block Kit - 2 Piece Drive Shaft - F350/450 DRW Diesel

$189.95
In stock
SKU
26-2752

5.0" Rear Block Kit for 2017-2024 Ford Super Duty F350/F450 Dually Trucks. For use with trucks with two-piece drive shaft. Includes carrier bearing spacer. For use on Dually or Dually Rear Springs.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

  • ReadyLIFT OEM-style rear block kits are available for 2017-2024 Ford Super Duty F350/F450 DRW model specific applications. These 5.0" fabricated steel tapered Rear Block Kits include two (2) rear blocks, billet drive line spacer, four (4) long e-coated u-bolts and eight (8) nuts and washers. Based on OEM designs and never made out of light weight extrusions, our 5" 2017-2024 Ford Super Duty Tapered Rear Blocks have Integrated OEM style bump stops. ReadyLIFT Block Kits will put a slight rake back in your truck for hauling or towing and are designed to work with your ReadyLIFT Suspension Leveling Kit. In fact, these blocks are the ideal Tow Package upgrade for not only for stock height vehicles but lifted or leveled trucks too! Like all ReadyLIFT products these block kits come with our Limited Lifetime Warranty.

    NOTE: 66-2752 5" block is for use on 2017-2024 Ford F350/F450 Dually Super Duty 4WD trucks with 2-piece drive shaft. Lift height will vary depending on what factory block your truck has. NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.

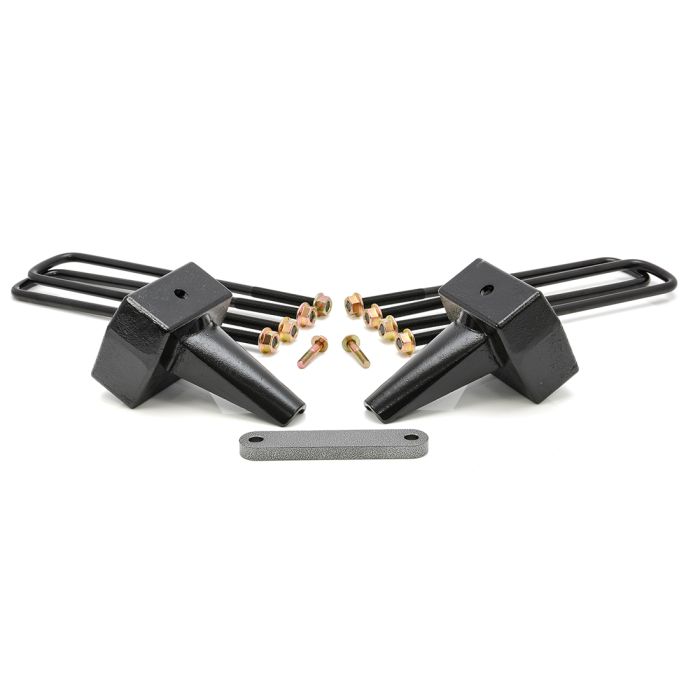

  • One pair of OEM style cast iron rear lift blocks with longer u-bolts and hardware.

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.

    Estimated Installation Time: 1.8 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!


Quick Overview
5.0" Rear Block Kit for 2017-2024 Ford Super Duty F350/F450 Dually Trucks. For use with trucks with two-piece drive shaft. Includes carrier bearing spacer. For use on Dually or Dually Rear Springs.
Details

ReadyLIFT OEM-style rear block kits are available for 2017-2024 Ford Super Duty F350/F450 DRW model specific applications. These 5.0" fabricated steel tapered Rear Block Kits include two (2) rear blocks, billet drive line spacer, four (4) long e-coated u-bolts and eight (8) nuts and washers. Based on OEM designs and never made out of light weight extrusions, our 5" 2017-2024 Ford Super Duty Tapered Rear Blocks have Integrated OEM style bump stops. ReadyLIFT Block Kits will put a slight rake back in your truck for hauling or towing and are designed to work with your ReadyLIFT Suspension Leveling Kit. In fact, these blocks are the ideal Tow Package upgrade for not only for stock height vehicles but lifted or leveled trucks too! Like all ReadyLIFT products these block kits come with our Limited Lifetime Warranty.

NOTE: 66-2752 5" block is for use on 2017-2024 Ford F350/F450 Dually Super Duty 4WD trucks with 2-piece drive shaft. Lift height will vary depending on what factory block your truck has. NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.

Kit Components

One pair of OEM style cast iron rear lift blocks with longer u-bolts and hardware.

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 1.8 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
