6" Big Lift Kit - 2022-2025 Toyota Tundra with Rear Coil Springs 2WD/4WD (part number 44-52620).

ReadyLIFT has had tremendous success with our leveling and SST lift kits for the 2022-UP Toyota Tundra and we are excited to announce two suspension solutions: our 6" lift kits for trucks equipped with rear coil spring and factory air configuration. Drawing on our Tundra first-class product success, ReadyLIFT Tundra 6" lift kits incorporate our Falcon 1.1 monotube shocks specifically designed, engineered, and tuned for 2022+ Toyota Tundra Trucks! The 6" lift kits for Tundra trucks are packed with great standard features!

Starting with our ultra-strong laser cut, CNC bent, welded, and boxed sub-frame drop assemblies that maintain suspension geometry and increase available ground clearance! The differential drop system is engineered for easy installation. The sub-assembly correctly positions the differential to maintain CV axle and driveline angles. With 44-52620 (non-rear air) & 44-52660 (with rear air) lift kits, you can rest assured premature tire wear won't be an issue. The ReadyLIFT system is built around maintaining proper alignment and geometry specifications.

Additionally, ReadyLIFT also includes thoughtful accessories such as new bump stop extensions all the way around as well as sway bar frame mount brackets to keep the front sway bar in a factory geometry. 6" Big Lift Features and Benefits: Allows for 5.75" backspace (18-20mm Offset) on 20x9 with 35" tires Includes two Falcon 1.1 monotube rear shocks Retains factory turning radius Work with the auto adjust headlights

Fitment and Installation Notes

• Max tire with trimming 5.5" backspace (10-13mm Offset) on 20x9 with 37" tires
• Not compatible with Tundra TRD Pro with Bilstein coilovers, AVS (Advanced Vehicle Suspension) and TRD rear sway bar. Most aftermarket 20"+ wheels are compatible (verify fitment before installation). Stock wheels cannot be reused. ReadyLIFT's new Toyota Tundra High-Performance CV Axle (PN: 67-52420CV) kits are recommended on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer.
• Our proprietary, precision-designed cast iron front knuckles feature CNC-machining to ensure fit while retaining the factory tie rods with minimal trimming required.
• Not compatible with Tundra TRD Pro with Bilstein coilovers, and TRD rear sway bar. Most aftermarket 20"+ wheels are compatible (verify fitment before installation). Stock wheels cannot be reused. ReadyLIFT's new Toyota Tundra High-Performance CV Axle (PN: 67-52420CV) kits are recommended on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer.

Allows for 5.75" backspace (18-20mm Offset) on 20x9 with 35" tires

Max tire with trimming 5.5" backspace (10-13mm Offset) on 20x9 with 37" tires

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

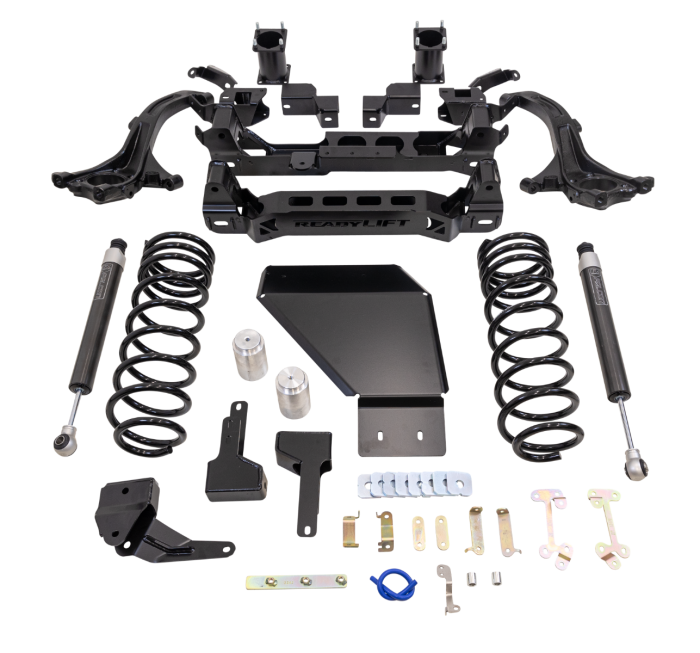

Front Crossmember, Rear Crossmember, Skid Plate, Front Strut Spacer, Front Sway Bar Drop-Left, Front Sway Bar Drop-Right,

Front Brake Line Bracket-Right 1, Front Brake Line Bracket-Right 2, Front Brake Line Bracket-Left 1, Front Brake Line Bracket-Left 2, Cam Block Off Plates,

Headlight Sensor Bracket Sleeve and HSB-Left, Knuckle-Left Hand Side, Knuckle-Right Hand Side, Front Bump Stop-Left, Front Bump Stop-Right,

Rear Crossmember Nut Plate, 1/4" Front Differential Vent Hose, Rear Trackbar Bracket, Rear Sway Bar Drop-Left, Rear Sway Bar Drop-Right, 6" Rear Coil Spring,

Rear Bump Stop-Left, Rear Bump Stop-Right, Rear ABS Relocator, Rear ABS Bracket, Falcon 1.1 Rear Shock, Rear Bump Stop Extension

Hardware pack, Instruction manual
