6" Lift Kit - Dodge Ram 2500 4WD with Bilstein Shocks 2014-2018 (part number 49-1640-K).

ReadyLIFT 6" Lift Kit fits 2014-2018 Dodge Ram 2500 4WD Series diesel short bed trucks. ReadyLIFT Suspension. This exciting lift system is Made in the U.S.A. and provides 6" of front lift and features the best engineering technology you will find on the market today. The 49-1600 series 6" system utilizes performance front coil springs providing a true 6" of front lift.

In the rear, we use our proven spacer design technology to design heavy-duty 3.5" lift rear spacers which team up perfectly with the factory rear coil springs. This system includes a lift structure that will enhance and improve the overall factory ride while greatly improving off-road performance. Along with performance springs and spacers, our engineering team also developed rugged frame-mount radius arm drop brackets that reposition the factory radius arms back to the factory position.

This is important so that the OEM alignment geometry can be retained. We also include heavy-duty fabricated steel front and rear track bar brackets, dropped cast iron front pitman arm, and front sway bar relocation brackets. We even include front/rear bump stop extensions to prevent over-compression during off-road use. Kit includes four (4) Bilstein Shocks.

This new 6-Inch performance suspension system is designed specifically for the 2014-2018 Dodge Ram 2500 4WD trucks with diesel engines and will allow for increased tire packages up to 37x13.50 and 9.5" wide wheel sizes from 17-20" diameters. Allows for up to 37x13.50 on 9.5" wide wheel. Includes (4) Bilstein Shocks.

Fitment and Installation Notes

• 2014-2018 Dodge Ram 2500 4WD. 6 Inch Front/3.5" Rear. Diesel Engine Only. Black Satin Finish.
• Not compatible for trucks with auto ride or rear air. Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

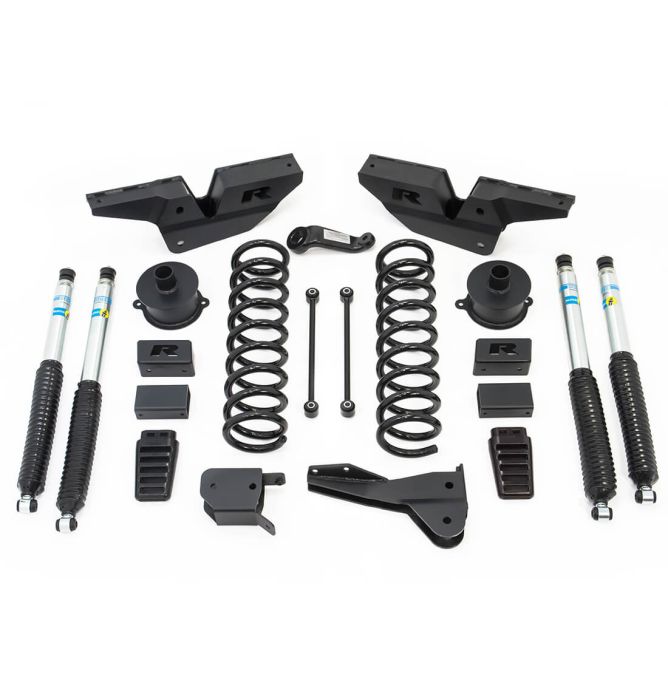

6" lift front coil springs.

Fabricated steel radius arm drop brackets.

Dropped pitman arm.

Heavy Duty steel rear coil spring spacers.

Front/Rear sway bar mount drop spacers.

Fabricated steel front track bar drop bracket.

Extended length front bump stops.

Extended length sway bar end links.

Bilstein 5125 shocks.

37" Maximum tire diameter

37x13.50 for no rub on a 9.5" wide wheel with 0 offset

18" - 37X13.5R18

20" - 37X13.5R20

22" - 325/60R22

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
