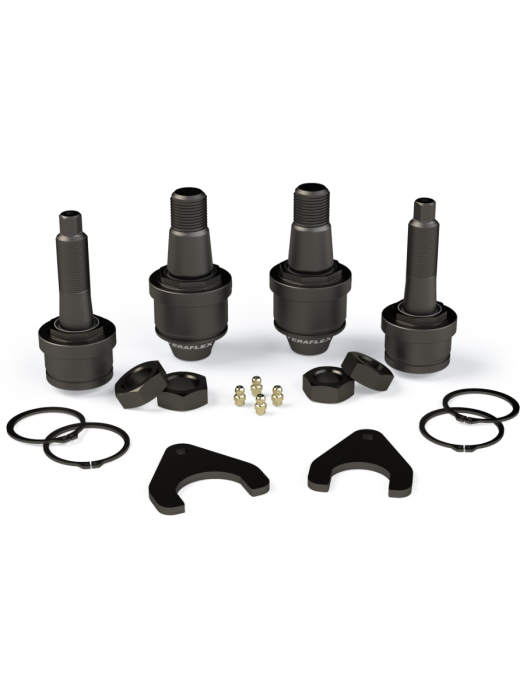

60 Axle HD Ball Joint Kit Upper & Lower - Set Of 4
TeraFlex HD Ball Joints are engineered to handle the increased loads caused by oversized tires, added vehicle weight, and offset wheels. They feature a threaded ball stud retaining ring that replaces the factory's crimp-style design, which is notorious for failure. This ring also allows precise preload adjustment during assembly and later, on-vehicle adjustments using basic hand tools eliminating the need for costly, labor-intensive rebuilds.
Each TeraFlex 60 Axle HD Joint incorporates a massive 32mm heat-treated chromoly ball stud and a hardened tool steel wear plate for maximum durability. Dual helical grease grooves machined into the stud allow spent grease to exit through a low-profile seal, improving longevity and simplifying maintenance.
From serious trail abuse to daily driving, these ball joints deliver long life, consistent performance, and easy, on-vehicle adjustability that eliminates the need for rebuilding.
Features and Benefits:
•Heat-treated 4140 chromoly steel ball studs
•Heat-treated 1045 carbon steel housings and threaded retaining rings
•Tool steel wear plate resists socket wear under extreme loads
•Corrosion-resistant coating reduces friction and increases service life
•Factory-style nuts included for precision stud torque and secure installation
•Low-profile single-lip dust seal eliminates concerns with torn boots
•Heavy-duty snap rings prevent ball joint separation during hard off-road use
•Wear and preload adjustability helps eliminate any wear movement
•Wear adjustment with simple tools, and the vehicle on the ground
•Grease zerks are easily accessible even with axle shafts installed
•32mm heat-treated chromoly ball stud
SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
INSTALLATION ALIGNMENT NOTE: Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.
INSTALLATION HEADLAMP AIM NOTE: In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation. You may incur additional costs to adjust the headlamp system.
INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE: If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation. In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS. You may incur additional costs to adjust ADAS systems.
Have a certified mechanic do it for you!
Ball Stud Retaining Ring adjustment tool included
•Current TeraFlex 60 Axles (requires slight knuckle clearance for wear adjustment set screw access)
•1999 F-250 4WD Dana 60
•1992-1997 F-350 4WD Dana 60
•1999-2022 F-250/350 Super Duty 4WD Dana 60
•1999-2018 F-450 Super Duty 2WD/4WD Dana 60
•1999-2004 F-550 Super Duty 2WD/4WD Dana 60
•2000-2005 Excursion 4WD Dana 60
•1994-1999 2500 4WD Dana 60
•1994-1999 3500 2WD/4WD Dana 60
TIRE/WHEEL SIZING GUIDE
