Toyota Tundra Differential Drop Kit - 2022-2026 Toyota Tundra (part number 67-52001).
ReadyLIFT's new Front Differential Drop Kit for the 2022-2026 Toyota Tundra. Tundra Drop Kit lowers the front differential to improve CV angles at full suspension droop. New mounting bushings replace the soft OE bushings to help limit differential movement under load. These brackets will endure the elements with their steel construction with a black powder coat finish for corrosion resistance. Drops front differential to provide better maximum operating angle for CV joints Polyurethane bushings prevent differential movement under load
100% Bolt-on with no cutting or welding CNC laser cut steel brackets To make the TRD Pro skid plate work with this application, you will need the Skid Plate Drop Kit (PN: 67-52050).
Front Differential Drop - Left Hand Side (Driver)
Front Differential Drop - Right Hand Side (Pass)
0.87" OD x 0.56" ID x 2.65" Crush Sleeve
1.52" OD x 0.85" ID Polyurethane Bushing
Hardware Pack for 67-52000
DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product
Description
Toyota Tundra Differential Drop Kit - 2022-2026 Toyota Tundra (part number 67-52001).
- ReadyLIFT's new Front Differential Drop Kit for the 2022-2026 Toyota Tundra.
- New mounting bushings replace the soft OE bushings to help limit differential movement under load.
- These brackets will endure the elements with their steel construction with a black powder coat finish for corrosion resistance.
- Polyurethane bushings prevent differential movement under load
- 100% Bolt-on with no cutting or welding
Details
Toyota Tundra Differential Drop Kit - 2022-2026 Toyota Tundra (part number 67-52001).
ReadyLIFT's new Front Differential Drop Kit for the 2022-2026 Toyota Tundra. Tundra Drop Kit lowers the front differential to improve CV angles at full suspension droop. New mounting bushings replace the soft OE bushings to help limit differential movement under load. These brackets will endure the elements with their steel construction with a black powder coat finish for corrosion resistance. Drops front differential to provide better maximum operating angle for CV joints Polyurethane bushings prevent differential movement under load
100% Bolt-on with no cutting or welding CNC laser cut steel brackets To make the TRD Pro skid plate work with this application, you will need the Skid Plate Drop Kit (PN: 67-52050).

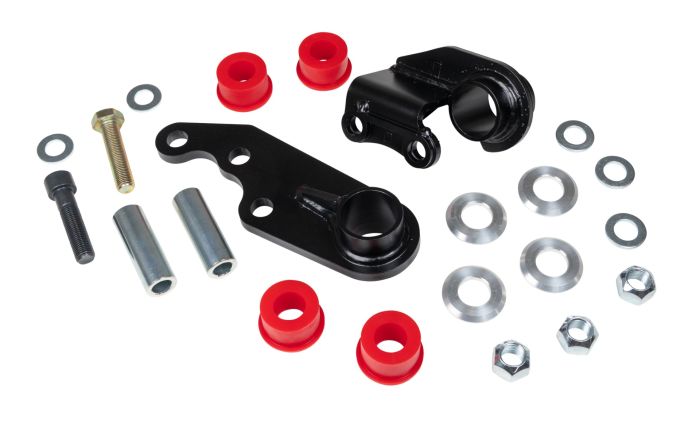

Kit Components
Front Differential Drop - Left Hand Side (Driver)
Front Differential Drop - Right Hand Side (Pass)
0.87" OD x 0.56" ID x 2.65" Crush Sleeve
1.52" OD x 0.85" ID Polyurethane Bushing
Hardware Pack for 67-52000
Installation
67-52001.pdf
DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product
