1.5'' Leveling Kit With Tubular Upper Control Arms Factory Air Suspension

$529.95

In stock

SKU

66-19150

2019-2024 Ram 1500 (Factory Air Suspension) 4WD 1.5 inch Leveling Kit w/ new Tubular Upper Control Arms. For use on New body style Ram 1500 4WD with factory air suspension. Not for use on classic body style Ram 1500. Front strut extension leveling kit. High-strength fabricated offset steal spacer - bolt-on. Made in USA. Max tire: 285/65-20 on 20x9 +18. Check factory height prior to ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift. **Will not fit Ram TRX models.

For use on New body style Ram 1500 4WD with Factory Air Suspension. Not for use on classic body style Ram 1500. ReadyLIFT offers several different leveling and lift solutions to properly enhance the stance and driving quality of the 2019-2024 Ram 1500 truck 4WD. Like the body design, the suspension design of the 2019-2024 Ram 1500 4WD features some unique design elements that differ from the previous generation Ram. These differences were tackled by our engineers as a result, we now offer a High-strength fabricated offset steal spacer - bolt on leveling kit to properly level these new Ram 1500 4WD trucks.
The 66-19150 kit provides 1.5" of front leveling lift in the form of our popular CNC machined billet aluminum top mount strut extension. The 2019-2024 Ram now comes with a composite upper control arm with a sheet metal cover. Our engineers determined the stresses around the ball joint would be too great for a traditional strut extension leveling kit. To add strength and security to your new leveling setup, we have developed a new heavy-duty DOM tube steel upper control arm with corrected ball joint angle cups for proper pivot angle. Our 66-19150 1.5" front leveling kit will get the job done right and affordably. This kit is for use exclusively on air-suspension equipped trucks.
Max tire: 285/65-20 on 20x9 +18

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.
Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

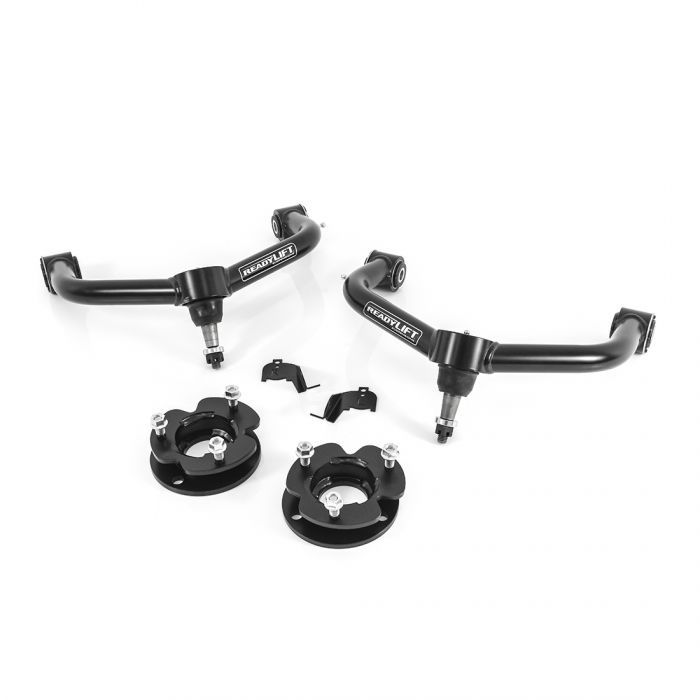

Kit includes two fabricated steel strut extensions and hardware.
Tubular control arms with new ball joints and bushings.
SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your ownerƒ¬žs manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions

Estimated Installation Time: 3.5 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
Location *
Location
Distributor Name

Quick Overview

Details

For use on New body style Ram 1500 4WD with Factory Air Suspension. Not for use on classic body style Ram 1500. ReadyLIFT offers several different leveling and lift solutions to properly enhance the stance and driving quality of the 2019-2024 Ram 1500 truck 4WD. Like the body design, the suspension design of the 2019-2024 Ram 1500 4WD features some unique design elements that differ from the previous generation Ram. These differences were tackled by our engineers as a result, we now offer a High-strength fabricated offset steal spacer - bolt on leveling kit to properly level these new Ram 1500 4WD trucks.

The 66-19150 kit provides 1.5" of front leveling lift in the form of our popular CNC machined billet aluminum top mount strut extension. The 2019-2024 Ram now comes with a composite upper control arm with a sheet metal cover. Our engineers determined the stresses around the ball joint would be too great for a traditional strut extension leveling kit. To add strength and security to your new leveling setup, we have developed a new heavy-duty DOM tube steel upper control arm with corrected ball joint angle cups for proper pivot angle. Our 66-19150 1.5" front leveling kit will get the job done right and affordably. This kit is for use exclusively on air-suspension equipped trucks.

Tire Fitment

Max tire: 285/65-20 on 20x9 +18

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

Kit Components

Kit includes two fabricated steel strut extensions and hardware.

Tubular control arms with new ball joints and bushings.

Installation

SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your ownerƒ¬žs manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions

Estimated Installation Time: 3.5 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
