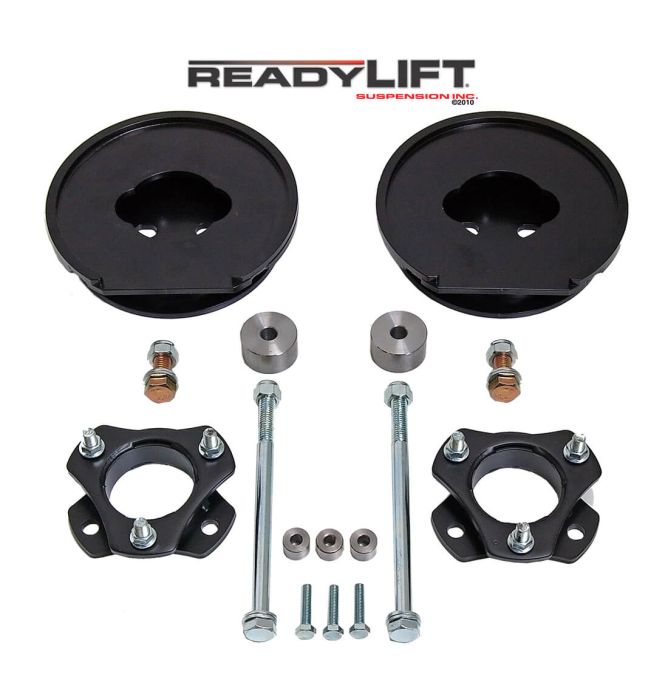

2.5"F / 1.5"R SST Lift Kit - Toyota Sequoia 2001-2007

$439.95
In stock
SKU
69-5010

2001-07 TOYOTA SEQUOIA 2WD/4WD SST LIFT KIT Max Lift 2.5"F/1.5"R - Max Tire Diameter 33" INCLUDES DIFFERENTIAL DROP SPACER KIT

NOTE:  Rear spacer is only compatible with one of three Toyota Sequoia rear suspension designs.  This spacer is intended to bolt to the frame.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
  • ReadyLIFT Suspension has used proven technological engineering methods to produce a mild lift SST Suspension Lift System for the 2001-2007 Toyota Sequoia vehicle. The 2.5" intermediate Smart Suspension Technology system fits most 2000-07 Sequoias including 2WD and 4WD models. This kit provides the owner with the opportunity to upgrade to larger wheel and tire combinations up to 33" in diameter while retaining the great stock ride and handling characteristics. This is a complete suspension lift kit that includes powder coated steel strut extensions, front differential drop spacers, skid plate spacers and special-designed rear spring lift spacers. The SST strut extension and diff drop bracket have been designed to provide 2.5" of front suspension lift while retaining the OEM safe suspension geometry. The rear spring spacer installs between the frame and rear spring to provide a slight rake. Unlike other kits, the ReadyLIFT 2.5" suspension system requires no cutting or strut spring pre-loading and installs quickly and safely using the provided heavy-duty hardware. Quality step-by-step instructions are provided with every kit. Our 69-5010 SST Lift Kit for the Toyota Sequoia will get rid of that "stink bug" stance while retaining your factory ride. Toyota pickups are built around quality and ReadyLIFT has designed this lift system to retain the quality ride and handling that you expect from a Toyota.

    NOTE: Not for use with rear air bag suspension. NOTE: Rear spacer is only compatible with one of three Toyota Sequoia rear suspension designs.  This spacer is intended to bolt to the frame.  Frame variations cannot be identified by trim level or model year – please inspect the rear frame for a top spacer bolt hole provision before installing this kit.  In some Sequoia applications the frame lacks that provision.  If you encounter a frame without the bolt hole, contact Customer Service for instructions on how to adapt the kit for installation.

  • 33" Maximum tire diameter

    33x11.50 for no rub on a 9" wide wheel with 0 offset

    18" - 295/65R18

    20" - 285/60R20

    22" - 285/50R22

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 6 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!

  • California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

Quick Overview

2001-07 TOYOTA SEQUOIA 2WD/4WD SST LIFT KIT Max Lift 2.5"F/1.5"R - Max Tire Diameter 33" INCLUDES DIFFERENTIAL DROP SPACER KIT

NOTE:  Rear spacer is only compatible with one of three Toyota Sequoia rear suspension designs.  This spacer is intended to bolt to the frame.

Details

ReadyLIFT Suspension has used proven technological engineering methods to produce a mild lift SST Suspension Lift System for the 2001-2007 Toyota Sequoia vehicle. The 2.5" intermediate Smart Suspension Technology system fits most 2000-07 Sequoias including 2WD and 4WD models. This kit provides the owner with the opportunity to upgrade to larger wheel and tire combinations up to 33" in diameter while retaining the great stock ride and handling characteristics. This is a complete suspension lift kit that includes powder coated steel strut extensions, front differential drop spacers, skid plate spacers and special-designed rear spring lift spacers. The SST strut extension and diff drop bracket have been designed to provide 2.5" of front suspension lift while retaining the OEM safe suspension geometry. The rear spring spacer installs between the frame and rear spring to provide a slight rake. Unlike other kits, the ReadyLIFT 2.5" suspension system requires no cutting or strut spring pre-loading and installs quickly and safely using the provided heavy-duty hardware. Quality step-by-step instructions are provided with every kit. Our 69-5010 SST Lift Kit for the Toyota Sequoia will get rid of that "stink bug" stance while retaining your factory ride. Toyota pickups are built around quality and ReadyLIFT has designed this lift system to retain the quality ride and handling that you expect from a Toyota.

NOTE: Not for use with rear air bag suspension. NOTE: Rear spacer is only compatible with one of three Toyota Sequoia rear suspension designs.  This spacer is intended to bolt to the frame.  Frame variations cannot be identified by trim level or model year – please inspect the rear frame for a top spacer bolt hole provision before installing this kit.  In some Sequoia applications the frame lacks that provision.  If you encounter a frame without the bolt hole, contact Customer Service for instructions on how to adapt the kit for installation.

Tire Fitment

33" Maximum tire diameter

33x11.50 for no rub on a 9" wide wheel with 0 offset

18" - 295/65R18

20" - 285/60R20

22" - 285/50R22

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 6 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
