2.5" SST Lift Kit - Toyota Tacoma 2024

$399.95
In stock
SKU
69-54250

KEY FEATURES & BENEFITS

- 2.5” SST Kit - Max Tire Diameter 285/75 without trimming”

- Fabricated steel front strut spacers

- Rear 1” Coil Spacer

- Billet Pre-Load Spacer

- ReadyGaurd Warranty

Note: Have not tested fitment on TRD Pro and Hybrid applications.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

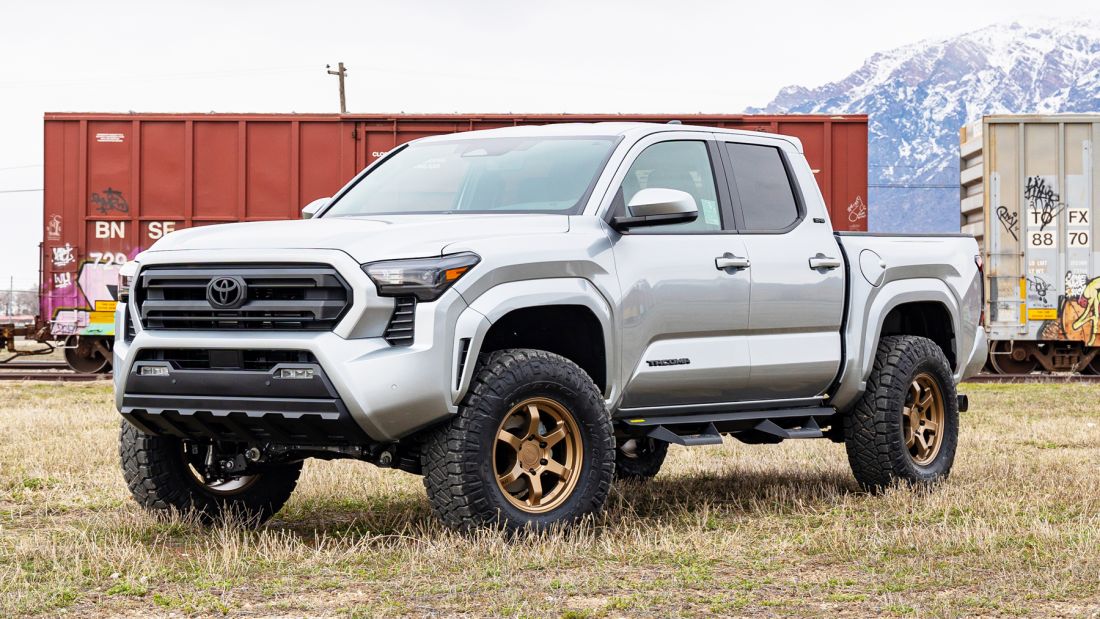

  • ReadyLIFT made a HUGE splash with our 1.5” leveling kit and now we want to introduce to you our new 2.5” SST Kit.  SST Lift Kits from ReadyLIFT are the most economical and safe method of altering vehicle ride height, which also allows the consumer to upgrade their tires to a preferred larger size. Nothing looks better than a truck fit with an aggressive stance and that is exactly what ReadyLIFT Smart Suspension Technology (SST) provides! ReadyLIFT used proven technological engineering methods to produce an SST Suspension Lift System for the 2024 Toyota Tacoma that yields 2.5" in the front and 1" in the rear.



    The all-new 69-54250 SST Kit for the 2024 Toyota Tacoma is an excellent choice for those who want a small front an rear lifted stance while running larger tires up to 285/75. The no-trim maximum tire size for this kit is a 285/75R17 with a 17x 8 wheel and +35 offset.

  • Wheel Tire  Note

    Stock (17x7 +60)  285/70R17  No Trim (Widest tire you can put on, Knuckle clearance)

    17x8 +35  285/70R17  No Trim

    17x8 +35  285/75R17  No Trim

    17x8.5 +47  285/70R17  No Trim

    17x8.5 +47  285/75R17  No Trim

    17x8.5 +25  285/70R17  No Trim

    17x9 +1  285/70R17  May require trimming. (4mm clearance)


    Tire Size Comparison:

    18x8 +35  285/65R18  No Trim

    18x8 +35  285/70R18  No Trim

    18x8.5 +47  285/65R18  No Trim

    18x8.5 +47  285/70R18  No Trim

    18x8.5 +25  285/65R18  No Trim

    18x9 +1 285/65R18  May require trimming. (4mm clearance)


    20x8.5 +35  295/55R20  No Trim

    20x9 +18  295/55R20  No Trim

    20x9 +1   295/55R20  May require trimming. (4mm clearance)


    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • One pair of fabricated steel upper strut extensions

    Billet Pre-load Spacer

    Rear Coil Spacer

  • SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 4 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!


Quick Overview

KEY FEATURES & BENEFITS

- 2.5” SST Kit - Max Tire Diameter 285/75 without trimming”

- Fabricated steel front strut spacers

- Rear 1” Coil Spacer

- Billet Pre-Load Spacer

- ReadyGaurd Warranty

Note: Have not tested fitment on TRD Pro and Hybrid applications.

Details

ReadyLIFT made a HUGE splash with our 1.5” leveling kit and now we want to introduce to you our new 2.5” SST Kit.  SST Lift Kits from ReadyLIFT are the most economical and safe method of altering vehicle ride height, which also allows the consumer to upgrade their tires to a preferred larger size. Nothing looks better than a truck fit with an aggressive stance and that is exactly what ReadyLIFT Smart Suspension Technology (SST) provides! ReadyLIFT used proven technological engineering methods to produce an SST Suspension Lift System for the 2024 Toyota Tacoma that yields 2.5" in the front and 1" in the rear.



The all-new 69-54250 SST Kit for the 2024 Toyota Tacoma is an excellent choice for those who want a small front an rear lifted stance while running larger tires up to 285/75. The no-trim maximum tire size for this kit is a 285/75R17 with a 17x 8 wheel and +35 offset.

Tire Fitment

Wheel Tire  Note

Stock (17x7 +60)  285/70R17  No Trim (Widest tire you can put on, Knuckle clearance)

17x8 +35  285/70R17  No Trim

17x8 +35  285/75R17  No Trim

17x8.5 +47  285/70R17  No Trim

17x8.5 +47  285/75R17  No Trim

17x8.5 +25  285/70R17  No Trim

17x9 +1  285/70R17  May require trimming. (4mm clearance)


Tire Size Comparison:

18x8 +35  285/65R18  No Trim

18x8 +35  285/70R18  No Trim

18x8.5 +47  285/65R18  No Trim

18x8.5 +47  285/70R18  No Trim

18x8.5 +25  285/65R18  No Trim

18x9 +1 285/65R18  May require trimming. (4mm clearance)


20x8.5 +35  295/55R20  No Trim

20x9 +18  295/55R20  No Trim

20x9 +1   295/55R20  May require trimming. (4mm clearance)


Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

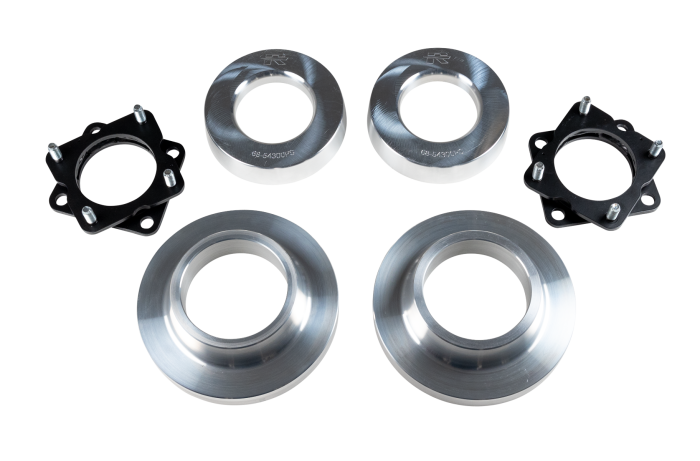

Kit Components

One pair of fabricated steel upper strut extensions

Billet Pre-load Spacer

Rear Coil Spacer

Installation
SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 4 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
