3"F / 2"R SST Lift Kit Pre-load Spacer - Toyota Tacoma TRD / SR5 / Rock Warrior 2005-2023

$389.95
In stock
SKU
69-5530

69-5530 is specifically engineered for the 2005-2023 Toyota Tacoma 6-lug 2WD/4WD trucks.

Utilizes pre-load style lift engineering that maintains factory alignment geometry.

Increases front spring rate for better nose dive control during braking and helping eliminate nose side roll during hard turning.

Easy bolt on installation - no permanent modifications. Increases ground clearance while allowing for larger off road wheels and tires.

Allows for up to a 285/65-18 tire on 18x9 wheel with +18 mm offset.

Made in USA.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

  • ReadyLIFT offers a pre-load lift style SST Lift Kit for the 2005-2023 Toyota Tacoma 2WD/4WD 6-lug trucks. Our traditional top mount strut extension 3" SST lift kits have been extremely popular for the past decade, but some customers favor a pre-load style lift kit, so we have added this lift technology to our product portfolio. Now you have more ReadyLIFT quality choices when it comes to lifting a Toyota Tacoma! ReadyLIFT's 69-5530 3/2 SST lift kit provides 3" total lift in front and 2" of lift in the rear. This new kit utilizes a precision crafted CNC-machined billet Aluminum pre-load spacer that installs between the factory spring and the top hat. This design slightly increases front spring rate, reducing nose dive during braking and improving front roll during hard turning at speed. Like our traditional Tacoma lift kits, the new 69-5530 lift kit includes 1" differential drop spacers and hardware, sway bar drop spacers, and skid plate spacers. For the rear we include our legendary OE style cast iron rear lift blocks with proper taper and longer U-bolts. This new Tacoma 6-lug SST Lift Kit enhances the factory driving mannerisms with a slightly more firm ride and handling characteristics thanks to the pre-load spacer. This kit allows for up to a 285/65-18 tire on an 18x9 wheel with +18 mm offset. (Minor trimming may be required depending on tire brand and tread design).
  • Allows for up to a 285/65-18 tire on 18x9 wheel with +0 mm offset.

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

  • Front pre-load lift assembly

    Front sway bar drop spacers

    Differential drop spacers.

    Rear lift blocks with new longer u-bolts

    Skid plate spacers

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 3.5 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!


Quick Overview

69-5530 is specifically engineered for the 2005-2023 Toyota Tacoma 6-lug 2WD/4WD trucks.

Utilizes pre-load style lift engineering that maintains factory alignment geometry.

Increases front spring rate for better nose dive control during braking and helping eliminate nose side roll during hard turning.

Easy bolt on installation - no permanent modifications. Increases ground clearance while allowing for larger off road wheels and tires.

Allows for up to a 285/65-18 tire on 18x9 wheel with +18 mm offset.

Made in USA.

Details
ReadyLIFT offers a pre-load lift style SST Lift Kit for the 2005-2023 Toyota Tacoma 2WD/4WD 6-lug trucks. Our traditional top mount strut extension 3" SST lift kits have been extremely popular for the past decade, but some customers favor a pre-load style lift kit, so we have added this lift technology to our product portfolio. Now you have more ReadyLIFT quality choices when it comes to lifting a Toyota Tacoma! ReadyLIFT's 69-5530 3/2 SST lift kit provides 3" total lift in front and 2" of lift in the rear. This new kit utilizes a precision crafted CNC-machined billet Aluminum pre-load spacer that installs between the factory spring and the top hat. This design slightly increases front spring rate, reducing nose dive during braking and improving front roll during hard turning at speed. Like our traditional Tacoma lift kits, the new 69-5530 lift kit includes 1" differential drop spacers and hardware, sway bar drop spacers, and skid plate spacers. For the rear we include our legendary OE style cast iron rear lift blocks with proper taper and longer U-bolts. This new Tacoma 6-lug SST Lift Kit enhances the factory driving mannerisms with a slightly more firm ride and handling characteristics thanks to the pre-load spacer. This kit allows for up to a 285/65-18 tire on an 18x9 wheel with +18 mm offset. (Minor trimming may be required depending on tire brand and tread design).
Tire Fitment

Allows for up to a 285/65-18 tire on 18x9 wheel with +0 mm offset.

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

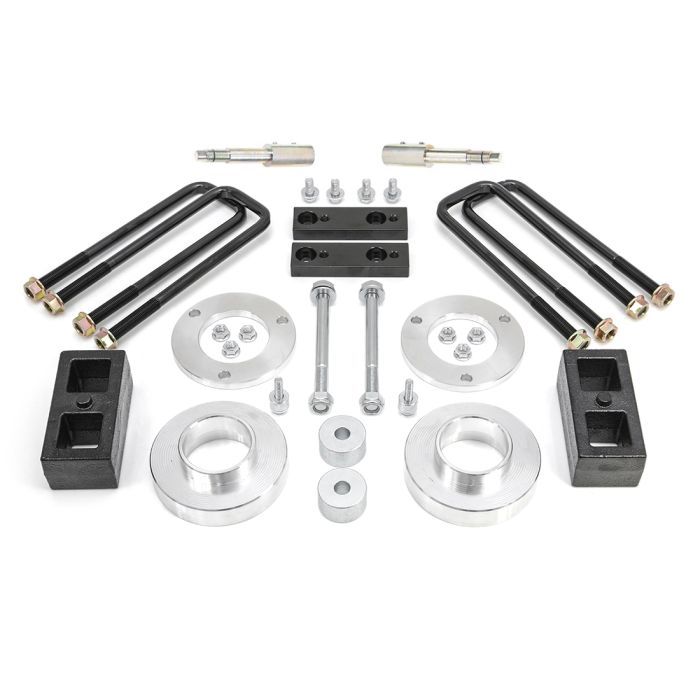

Kit Components

Front pre-load lift assembly

Front sway bar drop spacers

Differential drop spacers.

Rear lift blocks with new longer u-bolts

Skid plate spacers

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 3.5 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
