3" SST 2.1 Series Lift Kit- 2023-2025 Colorado (part number 62-33340).

ReadyLIFT now offers a new premium 3" SST2.1 series lift kit for the 2023-2025 Chevy Colorado trucks! The 62-33340 SST2.1 Lift Kit provides a great lift solution to achieve a mild yet aggressive lifted stance while still maintaining important factory ride and handling characteristics.

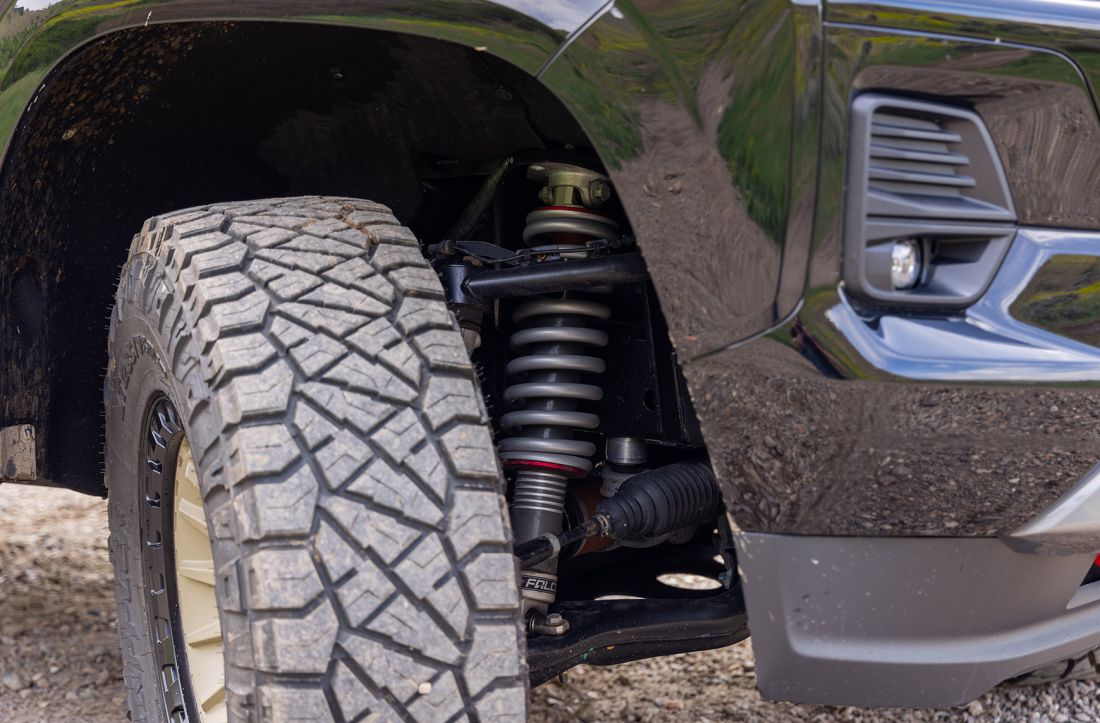

The new 3" kit provides new upper control arms and incorporates our Falcon 2.1 series front replacement strut and rear shock system that not only delivers an incredible ride quality but also opens the wheel wells up to increased wheel and tire sizes with the 3" front and a 1" rear lift over the stock ride height. To complement the advanced Falcon strut/shock architecture, our engineers also developed upgraded DOM tube steel upper control arms with corrected ball joint angles for greater strength and articulation.

The improved lift kit allows for up to a 285/75-17 tire for that lifted aggressive stance. The perfect mild lift solution for 2023+ Colorado that provides a great looking aggressive stance with a slight rake. Includes tubular steel upper control arms with adjusted ball joint pivot angles housing a heavy-duty ball joint. Allows for up to a 32.5x11.50" tire on up to +18 offset wheels. (285/70-17) "High-Value Performance" is the driving force behind our new vehicle-specific Falcon shocks.

Falcon shock absorber systems are tuned for comfort with predictive handling, control, and stability on road and through the canyons as well as controlled steering during off-road driving on washboard roads, through whoops, and over rocks, 62-33340. Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all four corners. Improved dynamic roll control and low-speed damping. Dramatic improvement in on-road comfort and off-road performance. Optimized fitment for unobstructed suspension travel and articulation. 6061-T6 aluminum alloy shock body resists Impact to protect internal components.

Smooth-honed internal shock body surface for long-term performance. 3/4" induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling. Large shaft diameter provides a wide range of adjustments on adjustable shocks. Hard anodized 6061-T6 aluminum alloy billet piston. 1-piece Teflon bronze piston wear band with O-ring.

Fitment and Installation Notes

• NOTES: Will not work on GMC Canyons or Trail Boss packages due to different upper control arm designs.
• NOTES: Will not work on GMC Canyons due to different upper control arm designs.

Allows for up to 17x9 +18 wheel - 285/75R17 tire

285/60-20 max with trimming.

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

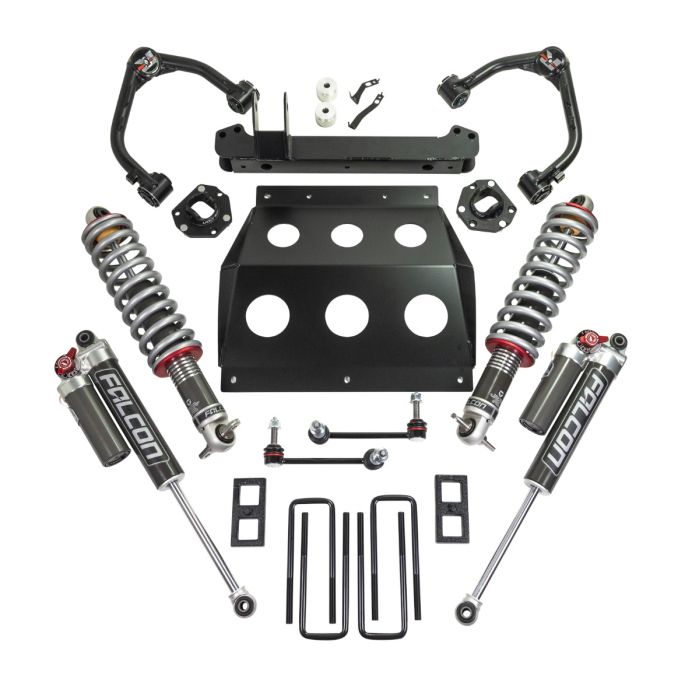

2023 Chevrolet Colorado Upper Control Arm Assembly, Left

2023 Chevrolet Colorado Upper Control Arm Assembly, Right

2023 Chevrolet Colorado Differential Cross Member

2023 Chevrolet Colorado Skid Plate

2023 Chevrolet Colorado Differential Spacer

7.5" Sway Bar Link Kit, M14 Studs

ABS Bracket LH

ABS Bracket RH

2023 Colorado, Coilover, Series2/Type1, Single Finished/Front/Left, 3.5" Lift

2023 Colorado, Coilover, Series2/Type1,Single Finished/Front/Right, 3.5" Lift

2023 Colorado, Smooth Body, Series3/Type 2, Single Finished/Rear, 3.5" Lift

1" Block Kit

Hardware Pack

Supplemental hardware pack
