4" COIL SPRING LIFT KIT WITH FALCON SHOCKS AND RADIUS ARMS- FORD SUPER DUTY DIESEL 4WD 2017-2022 F-350 And F-250

ReadyLIFT Suspension is now offering our first 4" Coil Spring Lift Kit fitting 2017-2022 Ford Super Duty F250/F350 4WD Power Stroke® trucks with new Tubular Radius Arms. The 49-27421 includes front and rear Falcon 1.1 Monotube series performance shocks with our venerable front track bar relocation bracket, tubular radius arms, and rear fabricated blocks. This delivers an excellent alternative for lifting a F250/F350 Super Duty trucks to fit larger tires. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance on a head-turning stance! Many consider this lift height the ’sweet spot’ for Super Duty driving dynamics and maximum tire size while maintaining everyday practicality.

The all-new Radius Arms are designed to correct the suspension geometry on lifted models. These new radius arms are heavy duty and are built to handle the use and abuse demanded out of Super Duty trucks. The new radius arms hold up to the abuse and surpass the factory radius arms and support gussets. The arms are formed inward, allowing for additional tire clearance, and providing the ability to install oversized tires. The direct bolt-on design promotes quick and easy installation. This optimum lift height allows for up to 37" tall tires. The coil spring kit delivers a great ride and handling performance! The key ingredients to improving your ride are the new specially engineered coil springs teamed with Falcon shocks and track bar relocation! This combination is more than just a lift kit, this is a performance and ride-enhancing kit that will really delight consumers with how well it rides and performs both on and off-road.

The ReadyLIFT 4" Coil Spring lift kit system for 2017-2022 Ford Super Duty trucks also includes model-specific brake line extension brackets, our time-tested bump-stop extension brackets, and new front sway bar frame mount extension brackets to keep the factory sway bar in the proper position. If you want tough looks and a smooth but controlled ride, then you want the new Super Duty 4” Coil Spring Suspension Kit System.

37x12.50 for no rub on a 9" wide wheel with 0 offset

18" - 37X12.5R18

20" - 37X12.5R20

22" - 325/60R22

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

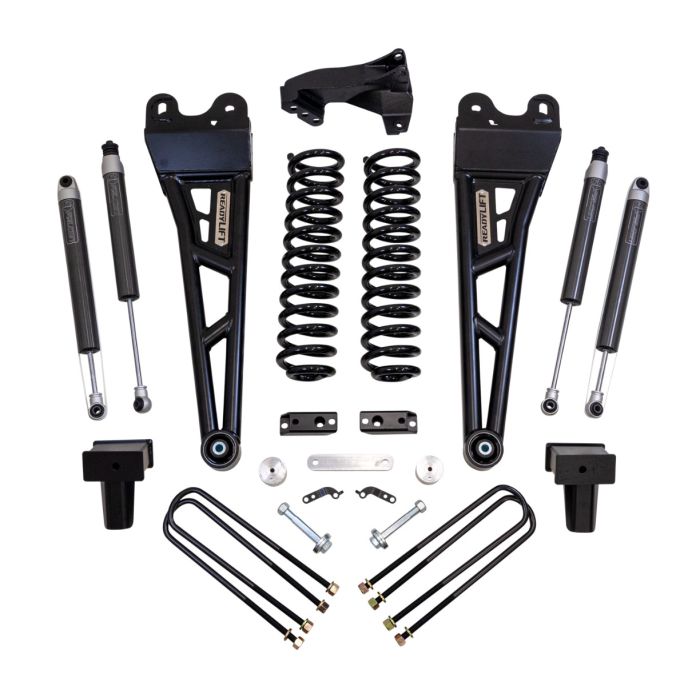

4" Lift Springs

Falcon 1.1 Monotube Front and Rear Shocks

Track Bar Relocation Bracket

Radius Arm

Sway Bar Drops

Bump Stop Extensions

Carrier Bearing Drop

Front Brake Line Brackets

Fabricated Rear Lift Blocks

Hardware Pack

California Residents: Prop 65 WARNING Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

Falcon Shocks - The Ultimate Blend of Performance, Quality, and Bang for the Buck

Falcon 1.1 Monotube Shocks deliver increased stability improved ride quality and comfort for a daily-driven vehicle in an economical, compact performance package.

Falcon 1.1 Monotube Shocks have been optimized for on-road driving with increased stability over stock for driven vehicles on and off road.‚ High-Value Performance is the driving force behind these vehicle-specific dampers for trucks and SUVs.

Falcon 1.1 Monotube Shocks are ideal for daily driven trucks and SUVs as well as the enthusiast wanting a consistent controlled feel through all driving conditions

Falcon 1.1 Monotube shocks include race-inspired performance, handling, and stability for off-road rigs. Falcon Jeep shock absorbers will significantly increase the chassis performance of any lifted truck or SUV.

Falcon 1.1 Monotube Shock Specification

    2-1/8" shock body for high-value performance

    6061-T6 aluminum alloy billet piston

    1/2" induction hardened chrome plated shaft resists rock damage corrosion and shaft buckling

Microcellular Foam Progressive Bump Stops (Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders.)
