4" SST Lift Kit - GM Full-Size SUV W/ Forged UCA 2WD 1500 2007-2017

$1,299.95
In stock
SKU
69-3295

2007-UP GM SUV 2WD SST Lift Kit

Max Lift: 4.0"F/3.0"R - Max Tire Dia: 33"

New Improved UCA Assembly replaces forged steel OE UCA Solid Mount and even load distribution Press in 10.9 grade Hardware OEM Style Cast Blocks Will not deform or change shape No Cutting of OEM Parts or Welding Maintains Factory Ride If it needs it‚¬¦ Its in the box

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
Frequently Bought Together
Check items to add to the cart or
  • New - now includes ultra strong TCT free floating pivot bushings that are self lubricating and eliminates friction. ReadyLIFT is proud to offer an SST Lift Kit system for the 2007-2018 GM full-size SUVs including Cadillac Escalade; Chevrolet Tahoe and Suburban; GMC Yukon, Yukon XL, and Denali 6-lug 2WD SUVs. The 69-3295 4.0" SST Lift Kit is the result of over six months of extensive product development followed by rigorous on and off road testing. ReadyLIFT's goal is to provide a true 4.0" lift kit that is completely bolt-on; no drilling, cutting or welding required. This system significantly increases ground clearance while allowing for tire sizes up to 33" tire on an aftermarket wheel. The most common tire size for this application is 33x12.50 (max). In order to install a 33x12.50 (305/55/20) with aftermarket wheels, some minor trimming of the inner fenderwell may be required. 22x9.5 with 5.5" backspacing requires no fender modifications. 17x9 +0 offset on a 285/70R17 will fit with no rubbing. With a 295/70r17 minor trimming/modification required. Note: This kit is designed for use with aftermarket wheels. The ReadyLIFT 4.0" SST Lift Kit will raise the 2007-2018 Cadillac Escalade 1500 2WD SUVs 4.0" in front thanks to tough trail-proven 4.0" powdercoated steel strut extensions that bolt directly to the top of the factory strut. Unlike some kits which require you to cut off your strut studs or break the top hat seal which is irreversible modifications, our rugged strut extensions require no modifications to be made to the strut in order to install the extension. This guarantees the strut will maintain the factory integrity as well as drastically reducing installation time. At the heart of the system is our all-new 100% DOM tubular upper control arm. This new heavy-duty control arm features OEM-style ball joints pre-pressed into a strong crown that retains OEM geometry throughout the suspension cycle and doesn't require any modifications to the spindle. That means no drilling or machining to make the ball joints fit the spindle. The new Control Arms include TCT polyurethane bushings. To lift the rear of the GM coil spring-equipped SUVs, this lift system includes 3.0" powdercoated steel coil spring spacers. The strong coil spacers insert into and top of the factory spring which maintains the great factory ride! In addition, a slight rake is helpful for towing or hauling. New longer and stronger rear sway bar end links and bump stop extensions are also provided to keep the rear suspension working properly. Completing this great new lift system are a set of steel rear shock extensions. No need to replace your great-riding factory rear shocks with inferior aftermarket shocks. These new shock extension brackets keep the rear shocks in the factory mounting position which means your truck will ride great! Like all ReadyLIFT products, the 69-3295 SST Lift Kit System is protected by our Limited Lifetime Warranty. NOTE: If you intend to run the stock wheels and tires, a wheel spacer is required to prevent the factory tire from touching the control arm at full locked turn. ReadyLIFT has developed a CNC-machined billet Aluminum wheel spacer 10-3485 for use with factory wheels which have the stud pockets cast into the wheel next to the lug holes on the back side of the wheel. NOTE: Installation of these kits may cause rear axle shift and an adjustable rear track bar or drop bracket may be required. Will require rear auto ride modifications. NOTE: Will not work with rear airbag suspension.
  • 33" Maximum tire diameter

    33x11.50 for no rub on a 9" wide wheel with 0 offset

    18" - 295/65R18

    20" - 285/60R20

    22" - 285/50R22

    Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

    Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.


  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 7.3 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!

  • California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov



Quick Overview

2007-UP GM SUV 2WD SST Lift Kit

Max Lift: 4.0"F/3.0"R - Max Tire Dia: 33"

New Improved UCA Assembly replaces forged steel OE UCA Solid Mount and even load distribution Press in 10.9 grade Hardware OEM Style Cast Blocks Will not deform or change shape No Cutting of OEM Parts or Welding Maintains Factory Ride If it needs it‚¬¦ Its in the box

Details
New - now includes ultra strong TCT free floating pivot bushings that are self lubricating and eliminates friction. ReadyLIFT is proud to offer an SST Lift Kit system for the 2007-2018 GM full-size SUVs including Cadillac Escalade; Chevrolet Tahoe and Suburban; GMC Yukon, Yukon XL, and Denali 6-lug 2WD SUVs. The 69-3295 4.0" SST Lift Kit is the result of over six months of extensive product development followed by rigorous on and off road testing. ReadyLIFT's goal is to provide a true 4.0" lift kit that is completely bolt-on; no drilling, cutting or welding required. This system significantly increases ground clearance while allowing for tire sizes up to 33" tire on an aftermarket wheel. The most common tire size for this application is 33x12.50 (max). In order to install a 33x12.50 (305/55/20) with aftermarket wheels, some minor trimming of the inner fenderwell may be required. 22x9.5 with 5.5" backspacing requires no fender modifications. 17x9 +0 offset on a 285/70R17 will fit with no rubbing. With a 295/70r17 minor trimming/modification required. Note: This kit is designed for use with aftermarket wheels. The ReadyLIFT 4.0" SST Lift Kit will raise the 2007-2018 Cadillac Escalade 1500 2WD SUVs 4.0" in front thanks to tough trail-proven 4.0" powdercoated steel strut extensions that bolt directly to the top of the factory strut. Unlike some kits which require you to cut off your strut studs or break the top hat seal which is irreversible modifications, our rugged strut extensions require no modifications to be made to the strut in order to install the extension. This guarantees the strut will maintain the factory integrity as well as drastically reducing installation time. At the heart of the system is our all-new 100% DOM tubular upper control arm. This new heavy-duty control arm features OEM-style ball joints pre-pressed into a strong crown that retains OEM geometry throughout the suspension cycle and doesn't require any modifications to the spindle. That means no drilling or machining to make the ball joints fit the spindle. The new Control Arms include TCT polyurethane bushings. To lift the rear of the GM coil spring-equipped SUVs, this lift system includes 3.0" powdercoated steel coil spring spacers. The strong coil spacers insert into and top of the factory spring which maintains the great factory ride! In addition, a slight rake is helpful for towing or hauling. New longer and stronger rear sway bar end links and bump stop extensions are also provided to keep the rear suspension working properly. Completing this great new lift system are a set of steel rear shock extensions. No need to replace your great-riding factory rear shocks with inferior aftermarket shocks. These new shock extension brackets keep the rear shocks in the factory mounting position which means your truck will ride great! Like all ReadyLIFT products, the 69-3295 SST Lift Kit System is protected by our Limited Lifetime Warranty. NOTE: If you intend to run the stock wheels and tires, a wheel spacer is required to prevent the factory tire from touching the control arm at full locked turn. ReadyLIFT has developed a CNC-machined billet Aluminum wheel spacer 10-3485 for use with factory wheels which have the stud pockets cast into the wheel next to the lug holes on the back side of the wheel. NOTE: Installation of these kits may cause rear axle shift and an adjustable rear track bar or drop bracket may be required. Will require rear auto ride modifications. NOTE: Will not work with rear airbag suspension.
Tire Fitment

33" Maximum tire diameter

33x11.50 for no rub on a 9" wide wheel with 0 offset

18" - 295/65R18

20" - 285/60R20

22" - 285/50R22

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

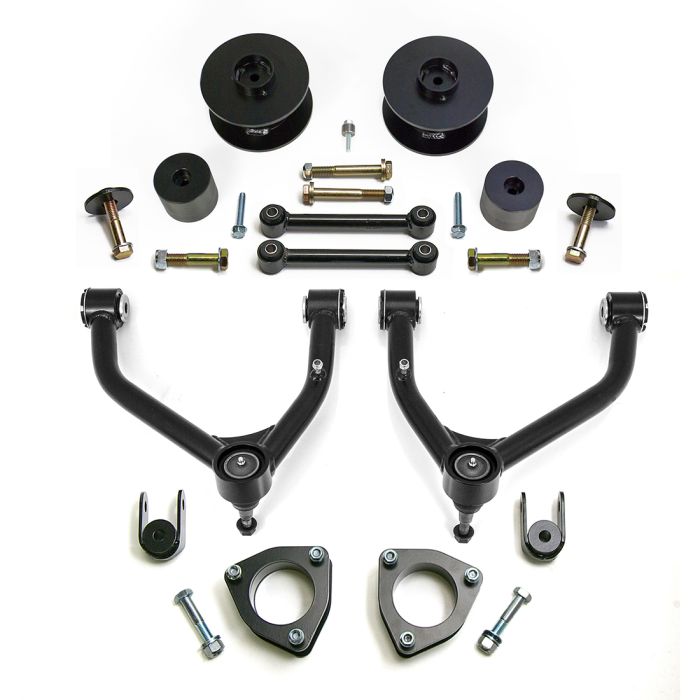

Kit Components


Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 7.3 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
