7/8" Wheel Spacers W/ Studs - GM 1500

$229.96
In stock
SKU
10-3485

ReadyLift GM 1500 7/8 Inch Wheel Spacers w/ studs
Will NOT work with factory steel wheels.
*Note: Excludes use with Factory 17 inch wheels
Sold as Pairs. (two wheel spacers)
Quantity 1 = one pair.
Caution- make sure the factory lugs fit into the wheel pockets without making contact with the wheel - the adapter must fit flush with the wheel.

Have a question? Please call 800-549-4620

TIRE/WHEEL SIZING GUIDE

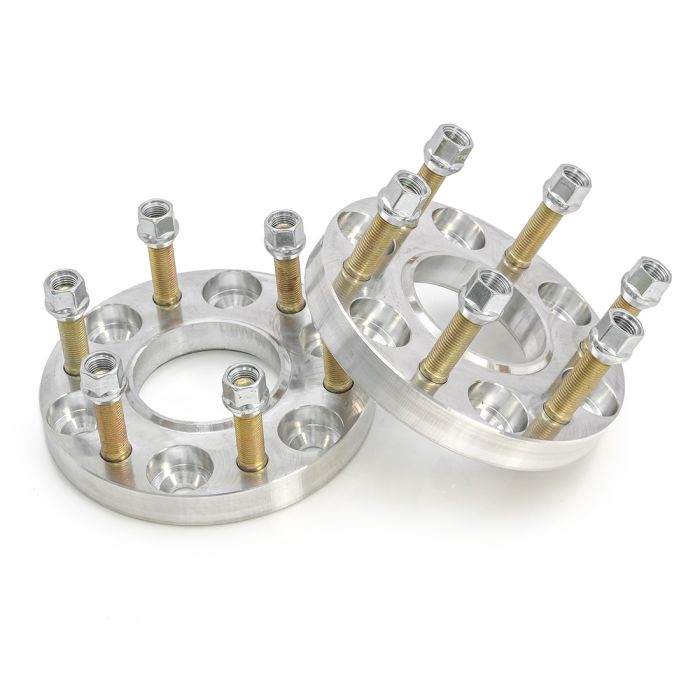

  • ReadyLift offers model-specific wheel spacers for 07-UP Chevy Silverado and GMC Sierra 1500 6-lug trucks. Precision CNC-machined from 6061-T6 billet aluminum for maximum strength and longevity, the ReadyLift 10-3485 wheel spacers are 7/8" thick and include pressed in 14mm factory style studs. These new wheel spacers are designed for use with the ReadyLift 69-3485, 69-3285, 69-3295 and 69-3495 4" SST Lift Kit when running the factory wheels. Wheel spacers are required when using the factory GM wheels and the 4" kit to properly space the factory wheel away from the suspension.

    Will only work with factory GM wheels which have the "pockets" in the back side of the wheel next to the lug holes. Will NOT work with factory steel wheels. Some 2017 and newer wheels with the "pockets", the pocket are not as deep as previous wheels and may required slight trimming of the factory wheel studs.

    Caution- make sure the factory lugs fit into the wheel pockets without making contact with the wheel " the adapter must fit flush with the wheel.

    Each wheel spacer is both hub centric and wheel centric to ensure the absolute perfect fit with your hub and wheel. You will not find a stronger wheel spacer in this size anywhere on the market. When installed the 10-3485 wheel spacer will place the outer wheel lip in line with the fender. The wheels WILL NOT stick out using this spacer.

    Can be used on '99-07 GM 1500 trucks if required for the individual application and if the factory wheels or the aftermarket wheels being used on the 99-07 Classic body style truck have the factory pockets cast into the back side of the wheel next to the lug holes.

    Sold as Pairs. (two wheel spacers)
    Quantity 1 = one pair.
    For use with GM factory wheels that have the "pockets" next to the lug holes.


  • 2 Billet Aluminum Spacers

  • SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



    INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



    INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



    INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.


    DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
    Estimated Installation Time: 0.3 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

    Have a certified mechanic do it for you!


Quick Overview

ReadyLift GM 1500 7/8 Inch Wheel Spacers w/ studs
Will NOT work with factory steel wheels.
*Note: Excludes use with Factory 17 inch wheels
Sold as Pairs. (two wheel spacers)
Quantity 1 = one pair.
Caution- make sure the factory lugs fit into the wheel pockets without making contact with the wheel - the adapter must fit flush with the wheel.

Details

ReadyLift offers model-specific wheel spacers for 07-UP Chevy Silverado and GMC Sierra 1500 6-lug trucks. Precision CNC-machined from 6061-T6 billet aluminum for maximum strength and longevity, the ReadyLift 10-3485 wheel spacers are 7/8" thick and include pressed in 14mm factory style studs. These new wheel spacers are designed for use with the ReadyLift 69-3485, 69-3285, 69-3295 and 69-3495 4" SST Lift Kit when running the factory wheels. Wheel spacers are required when using the factory GM wheels and the 4" kit to properly space the factory wheel away from the suspension.

Will only work with factory GM wheels which have the "pockets" in the back side of the wheel next to the lug holes. Will NOT work with factory steel wheels. Some 2017 and newer wheels with the "pockets", the pocket are not as deep as previous wheels and may required slight trimming of the factory wheel studs.

Caution- make sure the factory lugs fit into the wheel pockets without making contact with the wheel " the adapter must fit flush with the wheel.

Each wheel spacer is both hub centric and wheel centric to ensure the absolute perfect fit with your hub and wheel. You will not find a stronger wheel spacer in this size anywhere on the market. When installed the 10-3485 wheel spacer will place the outer wheel lip in line with the fender. The wheels WILL NOT stick out using this spacer.

Can be used on '99-07 GM 1500 trucks if required for the individual application and if the factory wheels or the aftermarket wheels being used on the 99-07 Classic body style truck have the factory pockets cast into the back side of the wheel next to the lug holes.

Sold as Pairs. (two wheel spacers)
Quantity 1 = one pair.
For use with GM factory wheels that have the "pockets" next to the lug holes.


Kit Components

2 Billet Aluminum Spacers

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.



INSTALLATION ALIGNMENT NOTE:  Your vehicle may require alignment after product installation.  You may incur additional costs to align the vehicle.



INSTALLATION HEADLAMP AIM NOTE:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.



INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.



DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions
Estimated Installation Time: 0.3 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
