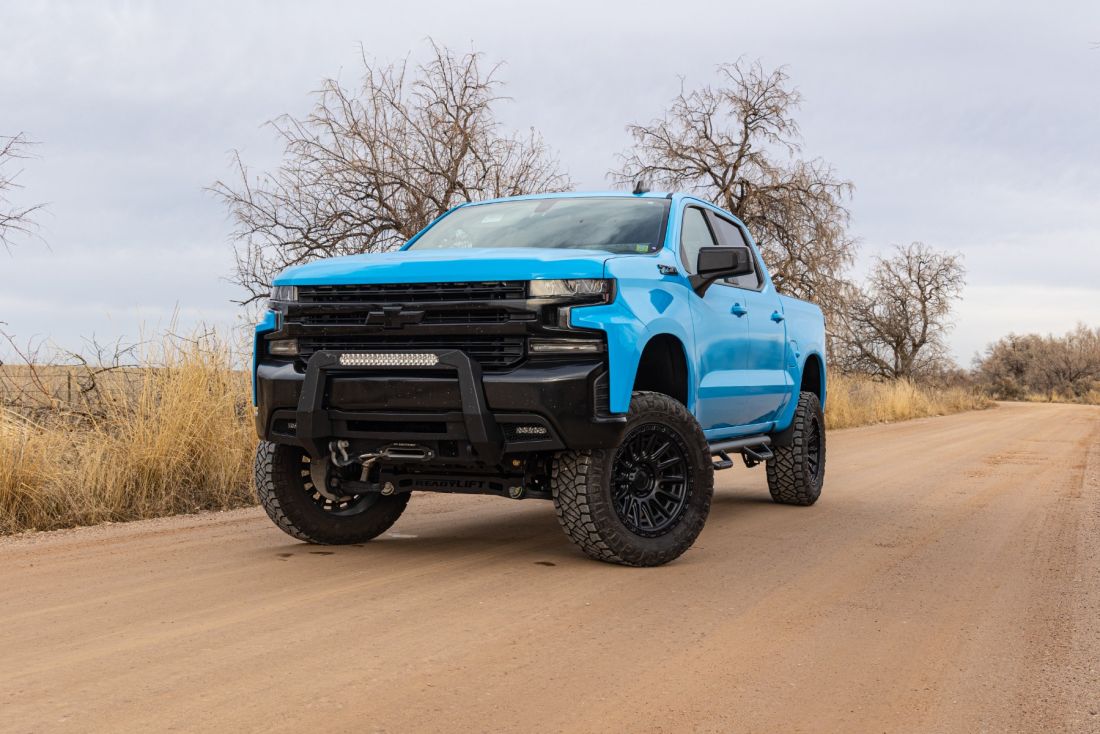

6" MAX3.3 Suspension System - GM Silverado / Sierra 1500 - 2025 With Falcon 3.3 Shocks

ReadyLIFT proudly introduces the next evolution in full-size truck performance - our 6” MAX3.3 Suspension System, now available for 2025 Chevy Silverado & GMC Sierra 1500 4WD trucks. Designed for GM enthusiasts who demand top-tier ride quality, aggressive stance, and premium off-road capability, this new system is engineered around the all-new Falcon 3.3 Front Remote Reservoir Coilover and Rear Piggyback Shocks—built for comfort, control, and custom tuning at your fingertips.

MAX3.3 System Highlights:

• Falcon 3.3 Fast Adjust Coilovers & Rear Shocks
  Premium remote reservoir dampers with 8-position micro tuning and 3-position Fast Adjust Knob. Quickly switch between Soft, Custom, or Firm for unmatched ride personalization on or off the road.
• Heavy-Duty Shock Architecture
  Engineered with 6061-T6 Aluminum construction, Red Line High VI shock oil, and Falcon’s Volume Optimized Damping (VOD) to withstand punishing off-road conditions.
• More Strength, More Control

·         Built with heavy-duty DOM tubular steel upper control arms featuring high-angle proprietary ball joints, this kit provides superior articulation, enhanced durability, and extended component life—something generic lift kits just can’t match.

• Heavy-Duty Lift Components
• Boxed steel front and rear crossmembers
• Full-width 3/16” & 8” front skid plate
• 1/4” boxed plate steel differential drop brackets with double gussets and a center rib for added strength
• 5” fabricated rear lift blocks with integrated bump stop landings
• Factory Ride and Turning Radius Retained
  Enjoy all the benefits of a lifted truck—aggressive stance, increased clearance—without sacrificing comfort or drivability.

Wheel & Tire Fitment:

• Recommended (no trimming):
  20x9, 0 offset wheels with 35x12.50 tires
• Max Fitment (with trimming):
  20x10, -18 offset wheels with 35x12.50 or 325/60R20 tires
  Note: May require trimming of front valance, inner fender liners, and mud flaps

Thousands of miles of testing on highways, trails, and everything in between prove that this new ReadyLIFT system doesn’t just lift—it elevates performance. This is the lift kit that makes your GM 1500 drive better than stock.



Note: Use of Auto 4 Hi feature not recommended. Not for use on AT4X, ZR2, Diesel as we don’t include an oil line relocation bracket or Denali models. Not compatible with Adaptive Ride Control or Multimatic suspension. Not compatible with rear mono-leaf springs. Click here to learn how to determine if you have rear mono-leaf springs. Not compatible with Super Cruise. Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

20x9 0 offset - 35x12.50 tire.*Max with trimming: 20x10 -18 offset - 35x12.50 or 325/60R20*Trimming requirements for larger than recommended wheel/tire include front valance, front felt liner edge, rear felt liner edge and front rear well edge mud flap.

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

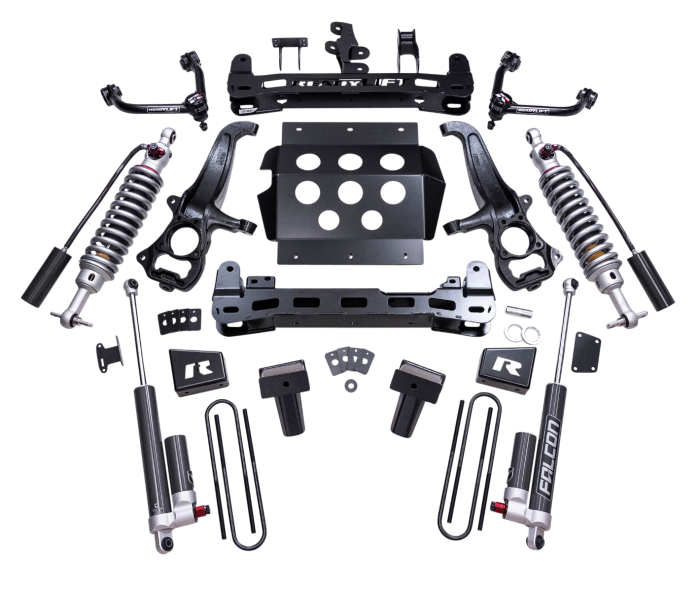

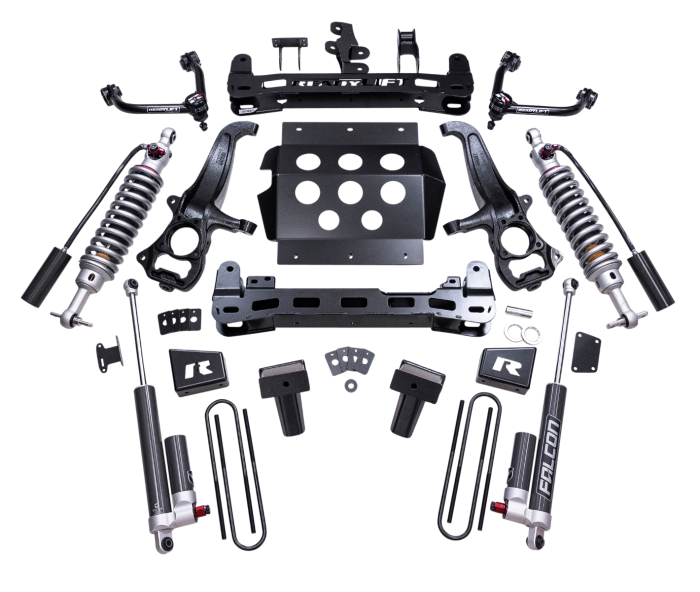

UPPER CONTROL ARM KIT

FALCON REAR SHOCK

FALCON FRONT RIGHT COILOVER GM 1500 6 IN

FALCON FRONT LEFT COILOVER GM 1500 6 IN

Front Cross Member

Rear Cross Member

Skid Plate

Driver Diff Drop

Passenger Diff Drop

Passenger Diff Drop Spacer

Rear Diff Drop

Diff Drop Crush Sleeve

Sway Bar Bracket Driver

Sway Bar Bracket Passenger

Cam Block Off Plate

51071B-2 PRO COMP Driver Knuckle

51071B-3 PRO COMP Passenger Knuckle

Driver Fabricated Block (5" Tall/Tapered 5 degree/Offset pin)

Pass. Fabricated Block (5" Tall/Tapered 5 degree/Offset pin)

Rear Brake Line Bracket

Rear ABS Bracket

CV Axle Spacer (1/4" thick outer spacer)

9/16-18 BARREL NUT & HEAVY WASHER

GM 1500 1.1 SHK RR

HARDWARE PACK
