Anti-Wobble Track Bar - Ford Super Duty 4WD For 0-5" Lift Applications 2005-2016

$399.95

In stock

SKU

77-2005

NEW Heavy Duty Anti-Wobble Track Bar For 2005-16 Super Duty F250/F350/F450 4WD Trucks with 0" to 5" of Front Lift Made in USA 1.5" 3/8"-wall DOM tube steel with CNC machined 4140 ends Twin-pinch adjuster for on-truck adjustments Strongest Solution on the market!

Frequently Bought Together

Check items to add to the cart or

Track Bar Bracket - Ford Super Duty F250/F350 4WD 2008-2025
$229.95

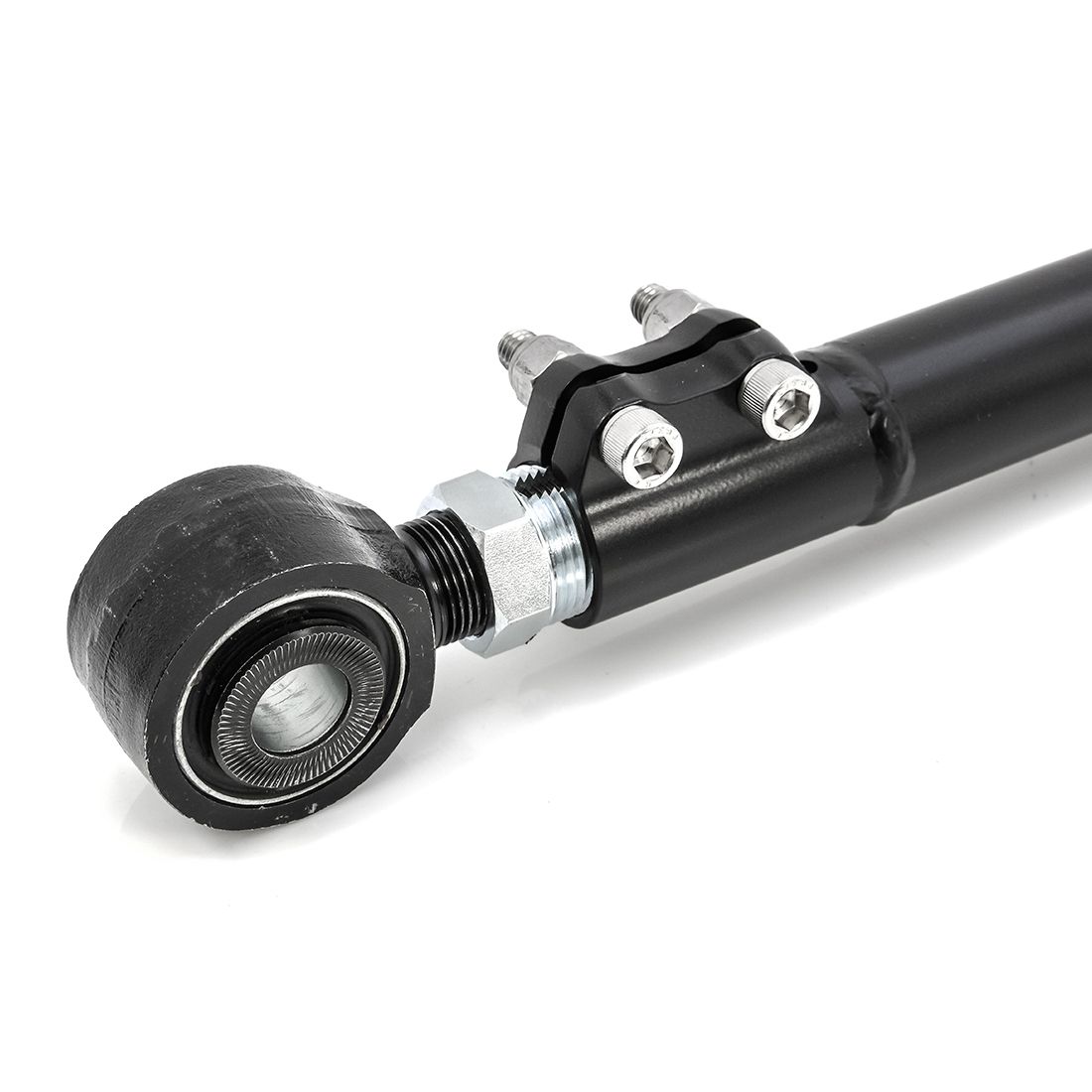

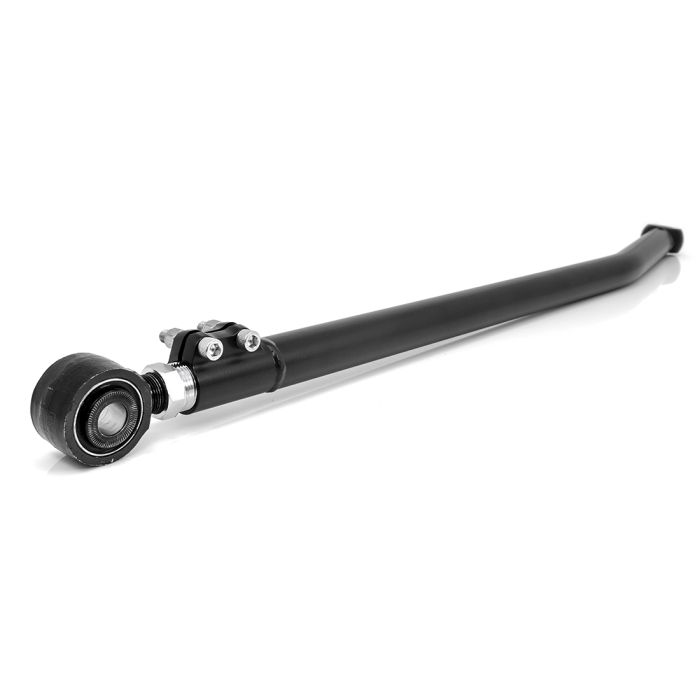

ReadyLIFT has developed a new and improved adjustable heavy-duty front track bars for the 2005=2016 Ford Super Duty 4WD Trucks with 0 to 5 inches of front lift. Our all-new 77-2005 (2005-2016) Super Duty track bar is extremely strong and provides a wide range of solutions to remedy many of the common issues with lifted or leveled F250/F350/F450 4WD trucks. The 77-2005 track bar is constructed from thick 1.5"-3/8-wall DOM tube steel with CNC-machined 4140 Chromoly ends. On the frame side of the bar we include a threaded forged housing with a maintenance-free heavy-duty bushing that screws into a twin-pinch on-truck adjuster. This design allows you to adjust either ReadYLIFT track bar to the desired length on the vehicle. The 77-2005 track bar for 2005-2016 Super Duty trucks has a CNC-machined 4140 tapered end to receive the factory ball joint. This exciting new front track bar is engineered to be a direct bolt-on replacement for Super Duty trucks with 0"-5" of lift. For trucks with 6"-8" of lift, these track bars will work when using a track bar relocation bracket which is found in our ReadyLIFT 6.5" and 8" lift kits.
One 1.5" DOM tube steel heavy duty track bar
SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

INSTALLATION ALIGNMENT NOTE: Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.

INSTALLATION HEADLAMP AIM NOTE: In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation. You may incur additional costs to adjust the headlamp system.

INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE: If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation. In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS. You may incur additional costs to adjust ADAS systems.

DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions

Estimated Installation Time: 1 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

Have a certified mechanic do it for you!
Location *
Location
Distributor Name
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product

Quick Overview

Details

ReadyLIFT has developed a new and improved adjustable heavy-duty front track bars for the 2005=2016 Ford Super Duty 4WD Trucks with 0 to 5 inches of front lift. Our all-new 77-2005 (2005-2016) Super Duty track bar is extremely strong and provides a wide range of solutions to remedy many of the common issues with lifted or leveled F250/F350/F450 4WD trucks. The 77-2005 track bar is constructed from thick 1.5"-3/8-wall DOM tube steel with CNC-machined 4140 Chromoly ends. On the frame side of the bar we include a threaded forged housing with a maintenance-free heavy-duty bushing that screws into a twin-pinch on-truck adjuster. This design allows you to adjust either ReadYLIFT track bar to the desired length on the vehicle. The 77-2005 track bar for 2005-2016 Super Duty trucks has a CNC-machined 4140 tapered end to receive the factory ball joint. This exciting new front track bar is engineered to be a direct bolt-on replacement for Super Duty trucks with 0"-5" of lift. For trucks with 6"-8" of lift, these track bars will work when using a track bar relocation bracket which is found in our ReadyLIFT 6.5" and 8" lift kits.

Kit Components

One 1.5" DOM tube steel heavy duty track bar

Installation

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

INSTALLATION ALIGNMENT NOTE: Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.

INSTALLATION HEADLAMP AIM NOTE: In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation. You may incur additional costs to adjust the headlamp system.

INSTALLATION ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS) NOTE: If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation. In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS. You may incur additional costs to adjust ADAS systems.

DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation. Download Pdf Instructions

Estimated Installation Time: 1 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)
